No. 806 is a 500ºF (260ºC), electrically-heated walk-in oven from Grieve, currently used for paint baking operations at the customer’s facility. Workspace dimensions of this oven measure 72” W x 96” D x 78” H. 100 kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 10,000 CFM, 7-1/2-HP recirculating blower provides combination airflow to the workload.
This Grieve walk-in oven features 4” insulated walls, aluminized steel exterior and interior, removable top-mounted heating chamber and a fully insulated floor. The oven is built with all safety equipment required by NFPA Standard 86 for flammable solvents, including a powered forced exhauster, airflow safety switch and purge timer.
Other controls on No. 806 include a fused disconnect switch, digital temperature controller and manual reset excess temperature controller.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 985 is an 850ºF (454ºC), electrically-heated universal style oven from Grieve, currently used for heating the end of an aluminum rod at the customer’s facility. Workspace dimensions of this oven measure 36” W x 36” D x 36” H. 18 kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 600 CFM, 1/2-HP recirculating blower provides front to rear universal airflow to the workload.
This Grieve universal oven features 6” insulated walls, aluminized steel exterior, Type 304, 2B finish stainless steel interior, single front door with five 3” diameter ports and two 6” diameter ports equipped with slide dampers, plus an 8” x 10” Pyrex/Vycor viewing window and interior oven light.
Controls on No. 985 include a digital programming temperature controller, manual reset excess temperature controller with separate contactors and recirculating airflow safety switch.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart
Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-
9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank
Calabrese.
Continue reading
No. 882 is a specially-designed 500°F electric top-loading oven from Grieve, currently in use for testing downhole oil field equipment. Workspace dimensions of this unit measure 300”W x 12”D x 18”H. 34.8kW installed in Nichrome wire elements heat the workspace, while a 600 CFM horizontal front-to-rear airflow is provided by two 3-HP recirculating blowers.
The unit features an aluminized steel interior and exterior with 4” thick insulated walls, a reinforced 1/4” steel plate workspace floor to hold a 5,000 lb. Distributed load, a motor-operated rear-hinged door and a front flush-mounted control panel. The oven is supported on eight swivel casters with swivel locks and brakes for mobility.
No. 882 also includes a digital indicating temperature controller, a manual reset excess temperature controller with separate heating element control contactors and a recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 797 is a 260ºF (127ºC), electrically-heated, Class 100 cleanroom cabinet oven from Grieve, currently used for drying coatings onto printed circuit boards at the customer’s facility. Workspace dimensions of this oven measure 36” W x 36” D x 39” H. 20 kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 1000 CFM, 1-1/2-HP recirculating blower provides horizontal airflow to the workload.
This Grieve cleanroom cabinet oven features 4” insulated walls, Type 304, 2B finish stainless steel interior with continuously back-welded seams, exterior finished with white epoxy paint, #4 brushed stainless steel door cover and control panel face, 30” x 24” x 6” thick stainless steel high-temperature HEPA recirculating filter, plus all safety equipment for handling flammable solvents, including explosion-venting door hardware.
Controls on No. 797 include a digital indicating, programming temperature controller and SCR power controller.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 1032 is a 500ºF, electrically-heated walk-in oven from Grieve, currently used to cure large parts in molds at the customer’s facility. Workspace dimensions of this oven measure 62” W x 79” D x 45” H. 60 kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 6000 CFM, 5-HP recirculating blower provides combination airflow to the workload.
This Grieve walk-in oven features 6” insulated walls, aluminized steel exterior and interior, a two-lane roller conveyor inside and outside the oven for loading, top-mounted heating chamber, electrically-operated vertical lift door at the rear of the oven, 62” W x 45” H front access doors, fully insulated floor and integral leg stand.
Controls on No. 1032 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, SCR power controller, recirculating blower airflow safety switch and fused disconnect switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

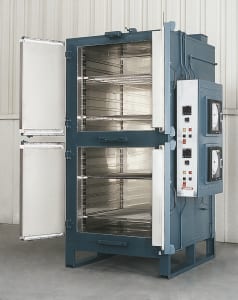

No. 978 is a 500ºF, electrically-heated, two-compartment universal style oven from Grieve, currently used for various machine shop operations at the customer’s facility. Workspace dimensions of this oven measure 30” W x 36” D x 36” H in each of the two heating zones. 6.6 KW per zone (13.2 KW total) are installed in Nichrome wire elements to heat the oven chamber, while a 600 CFM, 1/2-HP recirculating blower provides front-to-rear universal airflow to the workload.
This Grieve universal oven features 4” insulated walls, aluminized steel exterior, Type 304, 2B finish stainless steel interior, double doors and an integral leg stand.
Controls on No. 978 include a digital indicating temperature controller in each compartment of the oven, manual reset excess temperature controllers with separate contactors, recirculating blower airflow safety switches and a 10” diameter circular chart recorder, one per compartment, to record part temperatures.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 864 is a 350ºF, natural gas-heated belt conveyor oven from Grieve, currently used for drying gold ore samples at the customer’s facility. Workspace dimensions of this oven measure 6-1/2’ W x 35’ D x 1-1/2’ H. 1,650,000 BTU are installed in a modulating natural gas burner to heat the oven chamber, while a 24,500 CFM, 20 HP recirculating blower provides vertical downward airflow to the workload.
This Grieve oven features a 5’ long open belt loading zone, 35’ long insulated heat zone with recirculated airflow and 1’ long open belt unloading zone, plus 4” insulated walls, aluminized steel interior and exterior. A 6’ wide, 1” x 1” galvanized steel, flat wire conveyor belt with ¼ HP motor drive, variable from 5 to 50 feet per hour, transports the workload. Side access doors are provided along the length of the workspace to inspect the load and service the heating chamber.
All safety equipment required by IRI, FM and NFPA Standard 86 for gas-heated equipment are provided on this belt conveyor oven, including a 1500 CFM, 2 HP powered forced exhauster.
Controls on No. 864 include a conveyor belt start/stop, digital indicating current proportioning temperature controller, manual reset excess temperature controller, variable SCR drive to control conveyor belt speed, pilot lights to indicate when blower and heat are energized, pushbutton electronic ignition, on-off heat switch and main oven control pushbuttons. The NEMA 12 control panel is equipped with a lockable fused disconnect switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 910 is a 1000ºF, gas-fired, high-temperature walk-in oven from Grieve, currently used for heat cleaning large valve bodies at the customer’s facility. Workspace dimensions of this oven measure 60” W x 120” D x 78” H. 880,000 BTU are installed in a modulating natural gas burner to heat the oven chamber, while a 12,500 CFM, 10 HP recirculating blower provides combination airflow to the workload.
This Grieve oven features 8” thick insulated walls made from 2” of 1900ºF block and 6” of 10 lb/cf density rockwool; top-mounted heat chamber; 16 ga aluminized steel oven interior, 16 ga stainless steel heat chamber interior and 16 ga aluminized steel exterior. Inner and outer door gaskets are provided, with the inner gasket sealing directly against the door plug and the outer gasket sealing directly against the face of the oven. The 6” insulated oven floor features truck wheel guide tracks and Grieve also furnished the customer an 8000 lb capacity flatbed loading truck with this walk-in oven.
All safety equipment required by IRI, FM and NFPA Standard 86 for gas-heated equipment are provided on the oven, including a 1500 CFM, 2 HP powered forced exhauster.
Controls on No. 910 include a digital programming temperature controller.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 1033 is a 500ºC (932ºF) inert atmosphere oven from Grieve, currently used for heating polymer fibers at the customer’s facility. Workspace dimensions of this oven measure 54” W x 36” D x 84” H. 60 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 10,000 CFM, 7-1/2 HP recirculating blower provides vertical downward airflow to the workload.
This Grieve oven features 8” thick insulated walls plus an aluminized steel exterior and Type 304, 2B finish stainless steel interior. The inert atmosphere construction comprises a gas pressure regulator, flow meter, pressure gauge, internal high-temperature gasket, all welded expansion connection in doorway throat, air jacket on inner oven for cooling, ½” thick cellular silicone rubber atmosphere seal, blower shaft seal, pneumatic positive latching door hardware, adjustable offset door hinges, outlet with pressure relief, interior seams all welded gas-tight plus all wall penetrations are fitted with compression fittings. A 0-1500 CFM blower pulls air through the air jacket on the inner oven for faster cooling.
Controls on No. 1033 include a digital programming temperature controller, manual reset excess temperature controller with separate contactors, recirculating airflow safety switch, paperless event recorder, SCR power controller and trace level oxygen analyzer.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

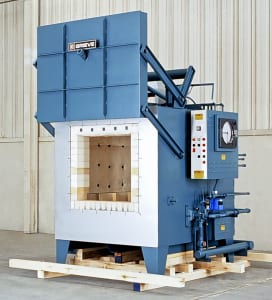

No. 871 is a 2000°F (~1093.3°C) gas-heated box furnace from Grieve, currently used for heat treating and high temperature testing. 650,000 BTU/HR are installed in three modulating natural gas burners with a floor mounted combustion air blower. Workspace dimensions are 30” wide x 48” deep x 30” high.
The unit has 7” insulated walls comprised of 5” of 2300°F ceramic fiber and 2” of 1700°F block insulation. The 6½” floor insulation is made of 4½” of 2300°F firebrick and 2” of 1900°F block insulation. The plate hearth is made of firebrick and is supported by firebrick piers.
For more information, please contact:Controls onboard No. 871 include a Partlow MRC 7000 recording and programming temperature controller and an electrically-operated vertical lift door.
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
USA
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese
