Tag Archives: testing downhole oil field equipment

500°F Special Top-Loading Oven from Grieve

No. 868 is a 500°F (260°C), high-temperature special top-loading oven from Grieve, currently used for testing oil field downhole equipment at the customer’s facility. Workspace dimensions of this oven measure 185” W x 18” D x 24” H. The oven features 34.8 KW installed in Nichrome wire heating elements, while 4000 CFM total from two 2-HP recirculating blowers provide horizontal front to rear airflow.

This Grieve special top-loading oven features 4” insulated walls, aluminized steel interior and exterior, plus reinforced ¼” steel plate workspace floor designed to hold 3600 lbs. distributed load. The oven is supported on six swivel casters with swivel locks and brakes and has a motor-operated, rear-hinged door.

Controls on No. 868 include a digital indicating temperature controller, a manual reset excess temperature controller with separate contactors and a recirculating blower airflow safety switch.

For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.

Continue reading

500ºF Electric Top-loading Oven for Equipment Testing

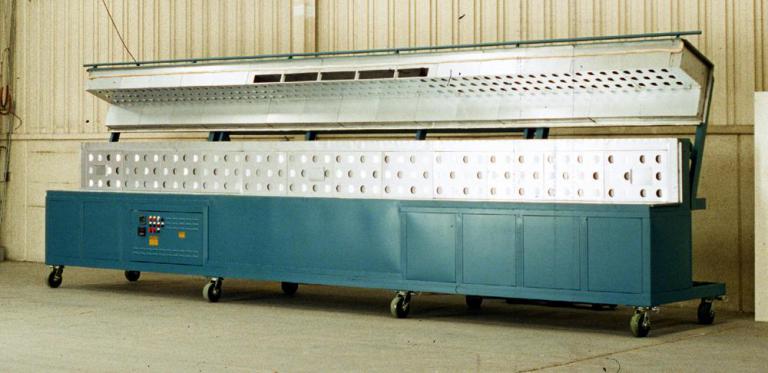

882 GrieveNo. 882 is a specially-designed 500°F electric top-loading oven from Grieve, currently in use for testing downhole oil field equipment.  Workspace dimensions of this unit measure 300”W x 12”D x 18”H.  34.8kW installed in Nichrome wire elements heat the workspace, while a 600 CFM horizontal front-to-rear airflow is provided by two 3-HP recirculating blowers.

The unit features an aluminized steel interior and exterior with 4” thick insulated walls, a reinforced 1/4” steel plate workspace floor to hold a 5,000 lb. Distributed load, a motor-operated rear-hinged door and a front flush-mounted control panel.  The oven is supported on eight swivel casters with swivel locks and brakes for mobility.

No. 882 also includes a digital indicating temperature controller, a manual reset excess temperature controller with separate heating element control contactors and a recirculating blower airflow safety switch.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

500ºF Electric Top-loading Oven for Equipment Testing

882 GrieveNo. 882 is a specially-designed 500°F electric top-loading oven from Grieve, currently in use for testing downhole oil field equipment.  Workspace dimensions of this unit measure

300”W x 12”D x 18”H.  34.8kW installed in Nichrome wire elements heat the workspace, while a 600 CFM horizontal front-to-rear airflow is provided by two 3-HP recirculating blowers.

The unit features an aluminized steel interior and exterior with 4” thick insulated walls, a reinforced 1/4” steel plate workspace floor to hold a 5,000 lb. Distributed load, a motor-operated rear-hinged door and a front flush-mounted control panel.  The oven is supported on eight swivel casters with swivel locks and brakes for mobility.

No. 882 also includes a digital indicating temperature controller, a manual reset excess temperature controller with separate heating element control contactors and a recirculating blower airflow safety switch.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP
