SUHNER presents new grinding, milling and polishing system
Intelligent technology for tool and mold making
In many technical fields, ultrafine grinding is one of the tasks that gives the product its final polish – in the truest sense of the word. This applies equally to both precision and the visual appeal.
The new SUHNER SUNmic 60 micro motor drive system
One of the leading manufacturers of professional surface treatment tools and machines for over a hundred years, SUHNER now offers an innovative grinding, milling and polishing system, SUNmic 60.

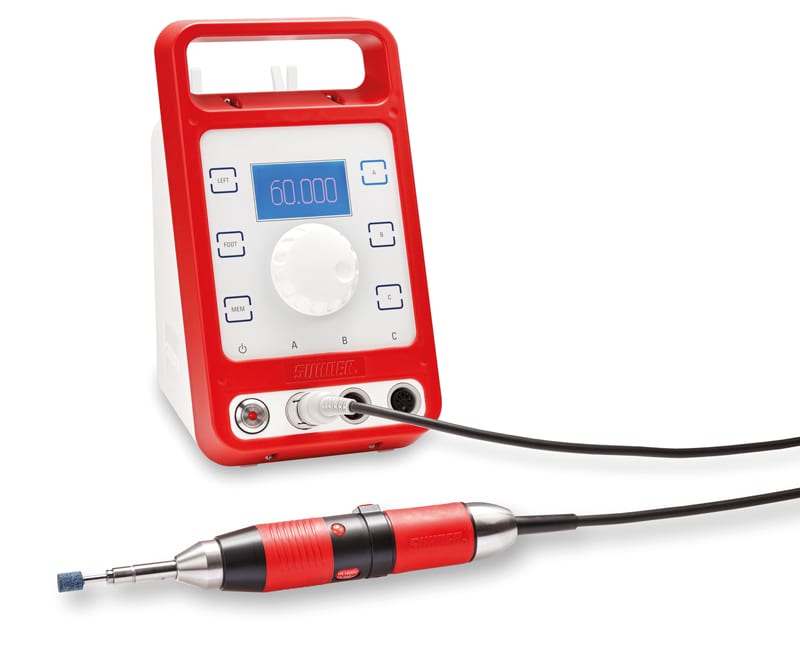

The central element is an intelligent control unit with touch panel that can accept a range of micro motors and tool hand pieces depending on the application. The control part has modern features such as touch screen operation on a glass display, the option to save settings and a rotation speed regulator with tangible resistance.
Key settings are easily legible on a large digital display.

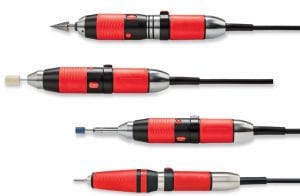

Micro motor system
The actual tools are driven by powerful micro motors whose 280 W place a lot of power in the user’s hand. The compact, brushless BL/DC motors provide an extraordinarily wide speed range of 1000–60,000 rpm and deliver a high torque. In practice, they can be compared with pneumatic technologies but do not need a compressed air supply, operate at lower energy levels and emit virtually zero noise, without exhaust air or oil mist emissions.
One further benefit is that they run virtually free of vibration. The high concentricity safeguards clean and reproducible results in all areas of operation. A special heavy-duty clamping system prevents the millers from shifting. Chuck diameters range from 2.35, 3.0 and 6.0 mm to 1/8 and 1/4 inch.
Flexible applications
The new SUNmic 60 micro motor system can be connected to a 90–240 V source, and can therefore be used anywhere in the world. It offers a large number of combinations. The tools range from straight, angle and filing hand pieces to belt grinders. The control unit can be connected to two BL/DC motors and an AC motor.
Advantage: The new control unit is compatible with available micro motors. This is a true multi-purpose tool for many applications.
The new system can be used everywhere a precision finish is desired – for instance, grinding, milling, brushing and polishing in tool and mold making; in aircraft, engine and motor building; in engine tuning; and much more. SUHNER offers a range of matching machines, tools and abrasives that have been tailored specifically to each of these applications. Also an illustrated mold making tool catalog is available.

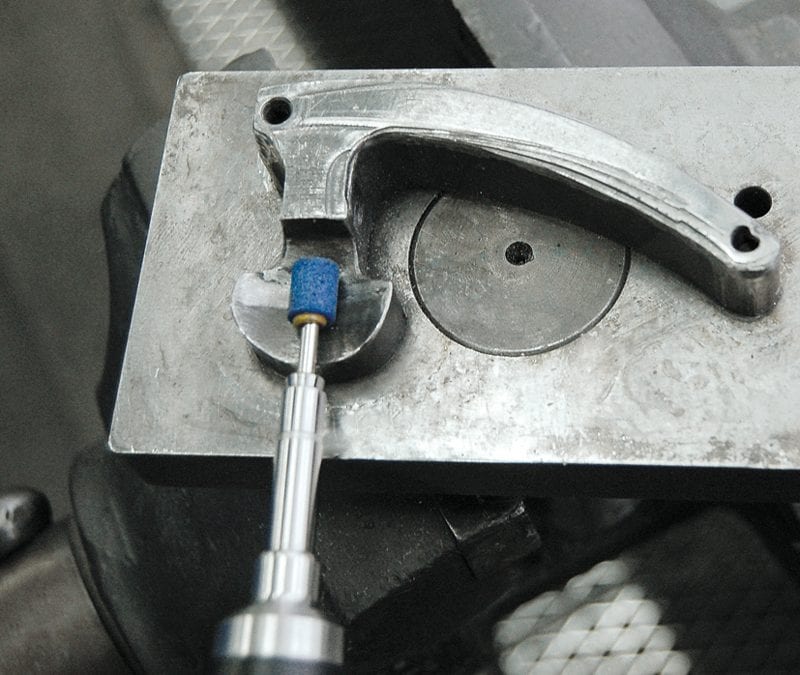

The new SUNmic 60 micro motor system has been designed for complex milling, grinding, brushing and polishing work in tool and mold making; in aircraft, engine and motor building; and similar applications.

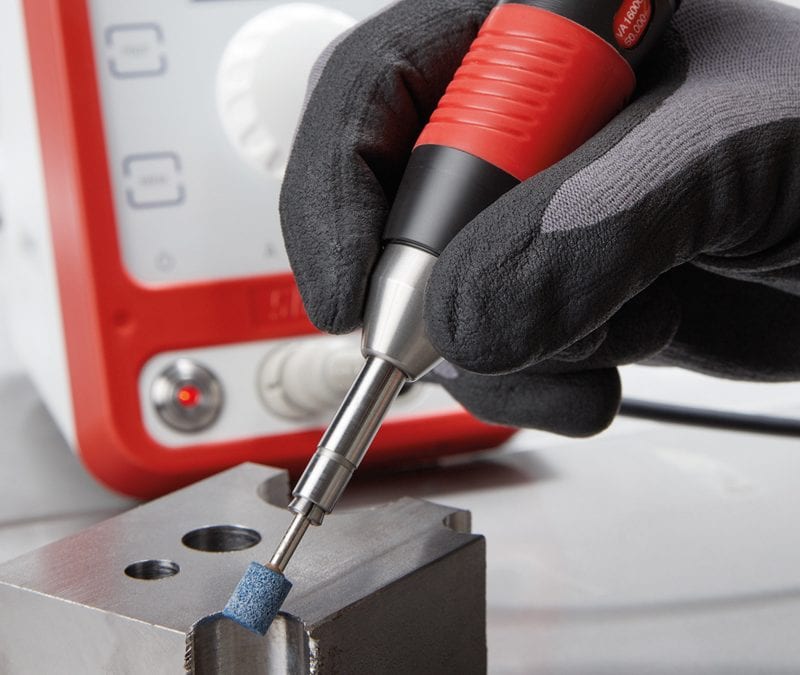

Together with the brushless BL/DC motors, the hand pieces deliver the maximum in performance.
The high concentricity and low-vibration running can only benefit the final results.
The most important properties of SUNmic 60:
Knowhow on site
SUHNER provides demo services for field expertise. This offers interested parties expert advice, free of charge, from experienced field workers. The demo services vehicle carries all the usual tools, attachments and abrasives, plus the right end to end solution can be found directly onsite based on the actual workpieces.
For more information, please contact:
SUHNER Industrial Products, LLC
43 Anderson Road SW
P.O. Box 1234
Rome, GA 30161
Phone 706/235-8046
Fax 706/235-8045
info.usa@suhner.com
www.suhner-abrasive-expert.com
Attention: Aaron Beck, National Sales Manager, Abrasives & Power Tools
