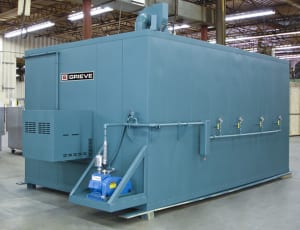

No. 1016 is a 500ºF walk-in oven from Grieve, currently used for composite curing at the customer’s facility. Workspace dimensions of this oven measure 72” W x 120” D x 78” H.
100 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 10,000 CFM, 10 HP recirculating blower provides horizontal airflow to the workload.
This Grieve walk-in oven features 4” thick insulated walls plus an aluminized steel interior and exterior. A four-port vacuum manifold, with pressure gauge and hand valve on each port, is featured on the oven, with a solenoid valve to bleed air into the manifold and a resin trap leading to the vacuum pump. A two-stage rotary vacuum pump rated at 10 CFM is provided.
All safety equipment for handling flammable solvents, including explosion-venting door hardware, is onboard this Grieve walk-in oven.
Controls on No. 1016 include a digital programming temperature controller and SCR power controller.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 1011 is a 500ºF four-door cabinet oven from Grieve, currently used for stress relieving stainless steel parts at the customer’s facility. Workspace dimensions of this oven measure 20” W x 28” D x 36” H in each of four compartments in the oven. 30 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 6000 CFM, 5 HP recirculating blower provides independent horizontal airflow to the workload in each compartment.
This Grieve cabinet oven features 4” thick insulated walls, aluminized steel exterior, Type 304, 2B stainless steel interior, shelf truck with shelf supports on 4” centers, stainless steel loading trays with integral holes to hold the customer’s parts in place, plus a transfer dolly with an oven-to-dolly latch to hold the trays for loading onto the supported shelves in the four oven chambers.
Controls onboard No. 1011 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and a recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 1025 is a 400ºF floor level cabinet oven from Grieve, currently used for heating asphalt road cores at the customer’s facility. Workspace dimensions of this oven measure 46” W x 28” D x 60” H. 14 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 1500 CFM, 1-1/2 HP recirculating blower provides horizontal airflow to the workload.
This Grieve cabinet oven features 6” thick insulated walls, top-mounted heat chamber, plus an aluminized steel interior and exterior.
Controls onboard No. 1025 include a digital indicating temperature controller, SCR power controller, manual reset excess temperature controller with separate contactors and a recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese
No. 1021 is a 1250ºF high-temperature belt conveyor oven from Grieve, currently used for drying steel nesh (sieve) materials at the customer’s facility. Workspace dimensions of this oven measure 21” W x 38” D x 3” H. 40 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 1600 CFM, 1-1/2 HP recirculating blower provides vertical downward airflow to the workload.
This Grieve packaged conveyor oven features 10” thick insulated walls made from 8” of 1900ºF block and 2” of 10 lb/cf density rockwool insulation, aluminized steel exterior, Type 304, 2B finish stainless steel interior and an 18” wide, 1” x 1” stainless steel flat wire conveyor belt with 1/3 HP motor drive, variable from 0.05 to 1.20 feet per minute. The oven travel comprises a 30” long open belt loading zone, 38” long insulated heat zone with recirculated airflow and 30” long open unloading zone. 10” x 10” stainless steel mesh screens above the return ductwork below the conveyor are provided to collect debris from the workload.
Controls onboard No. 1021 include a digital indicating temperature controller, SCR power controller and wall mounted remote control panel (shown detached in photo).
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 1017 is a 1000ºF high-temperature bench oven from Grieve, currently used for various heat processings at the customer’s facility. Workspace dimensions of this oven measure 22” W x 22” D x 13” H. 3 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a recirculating blower provides airflow to the workload.
This Grieve bench oven features 5” insulated walls, stainless steel exterior with #4 brushed finish, Type 304, 3B finish stainless steel interior, integral oven stand and an 8” x 10” double-pane Pyrex/Vycor viewing window.
Controls onboard No. 1017 include a digital programming temperature controller and manual reset excess temperature controller with separate control contactors.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2835 USA
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese

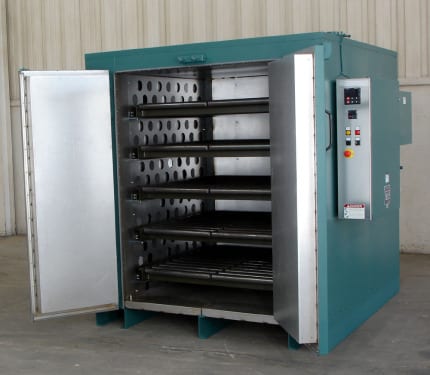

No. 1030 is a 550ºF floor-level electric cabinet oven from Grieve, currently used for heating large gears at the customer’s facility. Workspace dimensions of this oven measure 48” W x 48” D x 60” H. 40 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 2000 CFM, 2-HP recirculating blower provides horizontal airflow across the workload.
This Grieve cabinet oven features 6” insulated walls, aluminized steel exterior and interior, plus five levels of dual-lane roller conveyor rated at 300 lbs. per level.
Controls onboard No. 1030 include a digital indicating temperature controller, manual reset excess temperature controller with separate control contactors and a recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

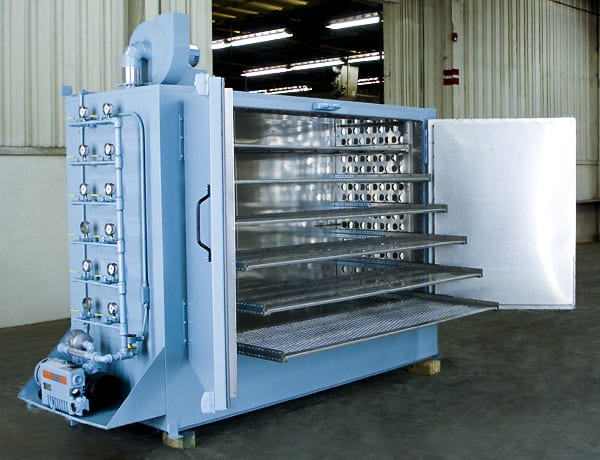

No. 1014 is a 350ºF electric shelf oven from Grieve, currently used for curing composites at the customer’s facility. Workspace dimensions on this oven measure 84” W x 30” D x 54” H. 25 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 1000 CFM, 1-HP recirculating blower provides horizontal airflow across the workload.
This Grieve shelf oven features 4” insulated walls, aluminized steel exterior, Type 304, 2B finish stainless steel interior and six 200 lb. capacity (each) shelves supported by ball slides with shelves extending 30” in front of oven for easy loading/unloading.
Controls onboard No. 1014 include all safety equipment needed for handling flammable solvents, including explosion-venting door hardware, plus a 12-port vacuum manifold with pressure gauge and hand valve at each port, solenoid valve to relieve vacuum and 2-HP rotary vane vacuum pump with pre-filter.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 1027 is a 550ºF electric cabinet oven from Grieve, currently used for drying pellets in pans at the customer’s facility. Workspace dimensions on this oven measure 47” W x 30” D x 63” H. 30 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 2000 CFM, 2-HP recirculating blower provides horizontal airflow across the workload.
This Grieve cabinet oven features 6” insulated walls, aluminized steel exterior, Type 304, 2B finish stainless steel interior, four independent doors for access to the workspace and eight 20” wide x 30” long x 1” high loading pans on channel supports in each oven opening.
Controls onboard No. 1027 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

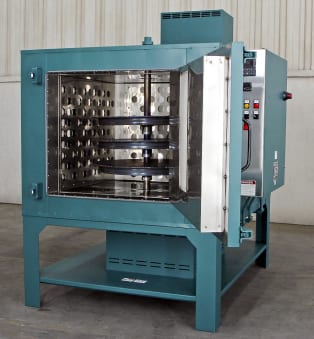

No. 1029 is a 500ºF, three-level rotary hearth electric oven from Grieve, currently used for curing sealant onto molded plastic parts at the customer’s facility. Workspace dimensions on this oven measure 36” W x 32” D x 30” H. 24 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 1000 CFM, 1-HP recirculating blower provides horizontal airflow, front to rear, across the workload.
This Grieve rotary hearth oven features 6” insulated walls, Type 304, 2B stainless steel interior, integral leg stand, an 8” W x 23” H front access opening built into the oven door and a 30” diameter three-level hearth constructed from perforated steel sheet and driven by a ¼-HP motor through a gear reducer with torque limiting device.
Controls onboard No. 1029 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch, circuit breaker disconnect switch plus a proximity switch and 12-tooth sprocket to index the hearth a 1/12 rotation per index.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

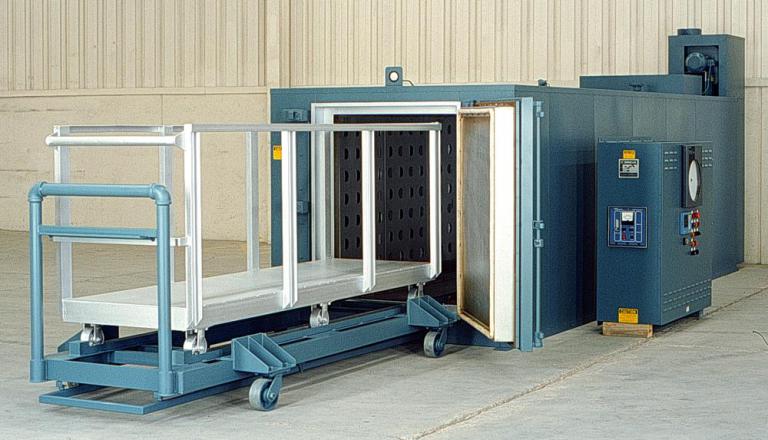

Grieve Corporation introduces No. 821, a 650°F electric inert atmosphere walk-in oven, currently in use for annealing plastic rods at a customer’s facility.
Workspace dimensions inside this unit measure 36” wide x 156” deep x 48” high. 80 kW power is installed in Incoloy sheathed tubular heating elements, while a 7800 CFM, 5 HP recirculating blower provides horizontal airflow across the workloads.An aluminized steel exterior and interior are featured on this unit, which also includes 5” thick insulated walls throughout.
Special construction for inert atmosphere processing includes all the following components: pressure regulator, flowmeter, pressure gauge, internal high-temperature gasketing, bellow-type doorway seal, 1/2” thick cellular silicone rubber atmosphere seal, blower shaft seal, positive latching door hardware, adjustable offset door hinges, outlet with pressure relief, interior seams welded gas-tight and all wall penetrations equipped with compression fittings.
An additional 1500 CFM blower is furnished to pull air through an air jacket on the inner oven for cooling. An oxygen analyzer, 0-5% range, is also provided on this oven.
A flatbed loading truck with 3500 lb. capacity and integral channel support sides, plus a transfer dolly with oven-to-dolly and dolly-to-truck latches, was also provided to the customer.
This entire package was completely designed, engineered, built and fully tested by Grieve.
