No. 932 is an electrically-heated, 500°F cabinet oven from Grieve, currently used for curing large silicone rubber parts. Workspace dimensions measure
50”W x 50”D x 50”H. 60 kW power installed in Incoloy-sheathed tubular heating elements and a 2450 CFM, 1-1/2-HP recirculating blower provides horizontal airflow to the workload.
This Grieve cabinet oven features 4” insulated walls, aluminized steel exterior, Type 430 stainless steel interior, brushed stainless steel control panel face, heavy-duty doors and door frame with explosion-venting latches and a 325 CFM powered forced exhauster. The oven is supported by I-beams to allow the loading cart’s front wheels to extend under the oven during loading.
No. 932 also includes a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and 10” diameter circular chart recorder.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 919 is a seven-zone, gas-heated belt conveyor oven from Grieve, currently used to cure various coatings onto ceramic parts. Maximum operating temperatures are 350°F in Zones 1-4 and 1000°F in Zones 5-7. Workspace dimensions measure 51”W x 56’D x 15”H, with a 30” long open belt loading zone, four 3’ long insulated heat zones with independent recirculated airflow and temperature control (350°F), 30” long open zone, three 3’ long insulated heat zones with independent recirculated airflow and temperature control (1000°F), 9’ long cooling zone and 3’ long open unloading zone.
400,000 BTU/hr. are installed in modulating natural gas burners in Zones 1-4, with 500,000 BTU/hr. in Zones 5-7
A 1/2” wide, B36-20-12-14, Type 316 stainless steel balanced weave conveyor belt is powered by a 1-HP motor drive, variable from 1.5 to 30 inches per minute.
A 30,000 CFM, 30-HP recirculating blower provides vertical upward airflow to the workload in Zones 1-4, while 25,000 CFM, 20-HP unit in Zone 5 and 12,500 CFM, 10-HP units in Zones 6-7 do likewise.
Two 36” diameter tubeaxial fans, each driven by a 5-HP motor, push / pull air through the oven’s cooling zone.
This Grieve belt conveyor oven features an aluminized steel exterior and Type 316L, 2B finish stainless steel interior with continuously welded seams. There are 4” thick insulated walls in Zones 1-4 and 8” thick insulated walls, comprising 2” of 1900°F block and 6” of 10 lb/cf density rockwool, in Zones 5-7.
The unit has top mounted heating chambers, doors for access to the work space and heat chambers in each zone and is designed to be split into two sections for easier shipment.
No. 919 has onboard all safety devices required by IRI, FM and NFPA Standard 86 for gas-heated equipment, as well as digital indicating temperature controllers.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 933 is a gas-heated, 250°F vertical conveyor oven from Grieve, currently used for post curing silicone rubber parts inside cardboard boxes. Workspace dimensions measure 10’ W x 13’ D x 12’ H. 42 trays, each 72” wide x 23” long and rated for 100 lb. loading on 34” centers, lower vertically and pass back into the heating zone, then exit at the top of the heating zone and pass downward through cooling. (One tray shown in photo)
Two 6,000 CFM, 5 HP recirculating blowers provide a total 12,000 CFM vertical upward airflow to the loads. Four 24” diameter tubeaxial fans are each driven by a 5 HP motor to push/pull air through the cooling zone on this Grieve conveyor oven.
No. 933 features 4” insulated walls, a removable top-mounted heat chamber (shown removed in photo), aluminized steel interior and exterior, plus two independent doors for access to the workspace.
All safety equipment required by IRI, FM and NFPA Standard 86 for gas-heated equipment are onboard this oven, including a 975 CFM, 1 HP powered forced exhauster for combustion venting.
This Grieve vertical conveyor oven is built to all applicable JIC/NEMA 12 electrical standards.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 823 is an electrically-heated, 1000ºF belt conveyor oven from Grieve, currently used for drying water-based glue onto stainless steel mesh. Other features include:
-workspace dimensions: 36″ x 15′ deep x 15″ high
-160 KW installed in Incoloy sheathed tubular heating elements
-30″ wide, 1″ x 1″ 316L stainless steel flat wire conveyor belt with 1/4 HP motor drive, with digital controller; variable from 0.5 to 10 feet per minute
-hot load, unload, and belt return
-7800 CFM, 5 HP recirculating blower providing vertical downward airflow
-8″ thick insulated walls comprised of 2″ of 1900°F block and 6″ of 10 lb/cf density rockwool
-aluminized steel exterior
-16 ga. type 316L stainless steel interior
-650 CFM, type 304 stainless steel, powered forced exhauster
-NEMA 12 electrical standards
-digital indicating temperature controller
-manual reset excess temperature controller with separate contactors
-recirculating blower air flow safety switch
-swivel casters with swivel locks and wheel brakes
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 930 is an electrically-heated, 500°F inert atmosphere cabinet oven from Grieve, currently used for liquid flow solder masking under a nitrogen atmosphere. Workspace dimensions measure 38” W x 38” D x 38” H. 30 kW are installed in Incoloy-sheathed tubular heating elements, while a 1500 CFM, 1-1/2 HP recirculating blower provides horizontal airflow to the load.
This Grieve inert atmosphere cabinet oven features 4” insulated walls, aluminized steel exterior, Type 430 stainless steel interior and an automatic door switch to shut off heaters and blower when the door is opened.
Special inert atmosphere construction features include a pressure regulator, flowmeter, pressure gauge, inner oven walls sealing directly against a 1/2” thick silicone rubber door seal, air jacket on the inner oven for cooling, blower shaft seal, positive latching door hardware, adjustable offset door hinges, outlet with pressure relief, interior seams welded gas-tight and all oven wall penetrations equipped with compression fittings to maintain atmosphere integrity.
No. 930 also includes a digital programming temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and fused disconnect switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 931 is an electrically-heated, 1250°F high-temperature universal oven from Grieve, currently used for various heat treatments at a customer’s facility. Workspace dimensions measure 25”W x 36”D x 24”H. 18 kW are installed in Incoloy-sheathed tubular heating elements, while a 1000 CFM, 1-HP recirculating blower provides a universal front-to-rear airflow to the load.
This Grieve universal oven features 10”-thick insulated walls, comprising 2” of 1900°F block and 8” of 10 lb/cf density rockwool insulation, plus an aluminized steel exterior, Type 304 stainless steel interior and a motor-operated vertical lift door controlled by a foot pedal.
No. 931 also includes a digital indicating temperature controller, manual rest excess temperature controller with separate contactors, recirculating blower airflow safety switch, fused disconnect switch and a 10’ power cord.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 929 is an electrically-heated, 500°F cabinet oven with vertical airflow from Grieve, currently used for various heat processings at a customer’s facility. Workspace dimensions measure 26”W x 38”D x 50”H. A 700 CFM, 1/2 HP recirculating blower provides a vertical upward airflow to as many as 16 shelves inside the oven workspace.
This Grieve cabinet oven features an aluminized steel exterior, Type 304 stainless steel interior, brushed stainless steel control panel face, heavy-duty door and door frame with explosion-venting latches and 4” insulated walls.
No. 929 also includes a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and a recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 928 is an electrically-heated, 500ºF universal style oven from Grieve, currently used for mold heating at the customer’s facility. Workspace dimensions measure 36” wide x 48” deep x 36” high. 18KW installed in Nichrome wire elements heat the unit, while a 1000 CFM, 3/4HP recirculating blower provides universal front-to-rear airflow to the workload.
This Grieve ovens features 4” insulated walls throughout, plus an aluminized steel interior and exterior. A motor-operated vertical lift door is onboard, along with an integral leg stand for convenient work height off the factory floor.
No. 928 includes a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and a recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 927 is an electrically-heated, 750°F cabinet oven from Grieve, specially modified with internal air filtration, currently used for curing Teflon. 64 kW are installed in Incoloy sheathed tubular heating elements, while a 3300 CFM, 2 HP recirculating blower provides horizontal airflow to the load. Workspace dimensions measure 50”W x 50”D x 50”H.
This Grieve cabinet oven includes two 24” x 24” x 6” thick stainless steel
high-temperature HEPA recirculating air filters, plus a 24” x 24” x 6” thick HEPA fresh air filter with a 2” prefitter.
No. 927 is constructed with an aluminized steel exterior, Type 304, 2B stainless steel interior with continuously backwelded seams, 6” insulated walls and all safety equipment required for handling flammable solvents, including explosion-venting door hardware.
A digital programming temperature controller, 10” diameter circular chart recorder and 30-hour shutdown timer are also onboard this Grieve cabinet oven.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

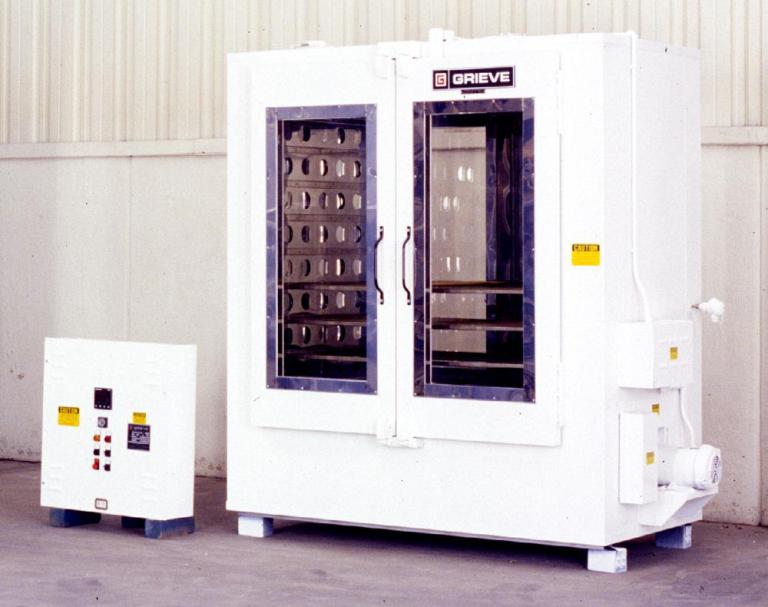

No. 926 is an electrically-heated, 250°F shelf oven and environmental test chamber from Grieve, currently used for age testing electrical/electronic components. 12kW installed in Nichrome wire elements provide heat to the load. Workspace dimensions measure 68” W x 30”D x 66” H. A 1000 CFM, 1 HP recirculating blower provides horizontal airflow.
This Grieve shelf oven features 4”insulated walls, aluminized steel interior and exterior, plus a 20” W x 56” H double-pane Lexan window in each of the unit’s two doors.
No. 926 also includes a disposable fresh air filter, digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blow airflow safety switch and a remote control panel, shown separate in the photo provided here.
