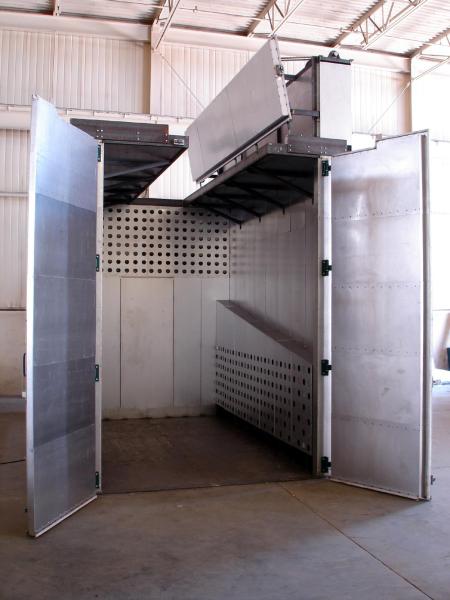

No. 1000 is a gas-fired, 500ºF (~260ºC) walk-in oven from Grieve, specially modified for overhead crane loading at the customer’s facility, in the performance of general heat processing operations. Workspace dimensions of this oven measure 81”W x 14’D x 12’H. 600,000 BTU are installed in a modulating natural gas burner to heat the unit, while a 17,500 CFM, 15-HP recirculating blower provides combination horizontal/vertical airflow to the load.
This unique Grieve walk-in oven features 4” insulated walls throughout, aluminized steel interior and exterior, air-operated crane access door atop the oven, plus all safety equipment required by IRI, FM and NFPA Standard 86 for gas-heated equipment, including a 1500 CFM powered forced exhauster.
Controls on No. 1000 include a digital programming temperature controller.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 804 is a HIGH TEMPERATURE WALK-IN OVEN for heat treating and curing paint and varnish.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 1001 comprises two electrically-heated, 500ºF (~260ºC) universal ovens from Grieve, specially modified for simultaneous operation with reduced movement by one worker at the customer’s facility, in the performance of general heat processing operations. Workspace dimensions in each oven measure 24”W x 24”D x 24”H. 5KW are installed in Nichrome wire elements to heat each unit, while a 400 CFM, 1/3-HP recirculating blower provides front-to-rear universal airflow across the load in each unit.
These Grieve universal ovens each feature 4” insulated walls throughout, aluminized stainless steel interior and exterior, motor-operated vertical lift door with foot pedal actuation and an integral leg stand.
Identical controls on each oven of No. 1001 are housed in a NEMA 12 control panel, mounted on opposite sides of the respective ovens for easy access by one individual positioned between them. The controls on each oven include an automatic door switch to shut off heat and blower motor when the door is opened, as well as a digital indicating temperature controller, manual reset excess temperature controller with separate control contactors, recirculating blower airflow safety switch and 7-day, 24-hour start-up timer.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 794 is a three-zone, electrically-heated belt conveyor oven from Grieve, currently in use curing a cast silicone rubber layer onto steel rollers. This unit has a maximum operating temperature of 500°F and a workspace of 30″ W x 96″ D x 24″ H.
The conveyor consists of an 18″ long open belt loading zone, 36″ long insulated unheated entrance vestibule, three 32″ long insulated heat zones with independent recirculated airflow and temperature control, 12″ long insulated unheated exit vestibule and 60″ long open unloading zone.
A 90 KW total heat input is installed in Nichrome wire heating elements, with 30 KW per heating zone. Three 1,000 CFM, 1 HP recirculating blowers provide vertical downward airflow to the workload.
No. 794 features aluminized steel interior and exterior, as well as 4″ thick insulated walls, a three-pen, 10″ dia. circular chart recorder and a 24″ W, 1″ x 1″ flatwire conveyor belt with 1/2 HP motor drive and variable speed from 1.5 to 4.3 inches per minute.
A customer-specified, multi-color paint finish was also supplied by Grieve on this conveyor oven.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 1002 is an electrically-heated, 500ºF (~260ºC) cabinet oven from Grieve, currently used for various test procedures in the customer’s laboratory. 8KW are installed in Incoloy sheathed tubular elements to heat the unit, while a 400CFM, 1/3-HP recirculating blower provides horizontal airflow across the load.
This Grieve oven features 4” insulated walls throughout, Type 304, 2B stainless steel interior with continuously backwelded seam construction, stainless steel exterior with #4 brushed finish, heavy-duty door and door frame, three nickel-plated wire shelves and adjustable patented opposed louvers on full coverage supply and return ductwork.
No. 1002 is equipped with all safety equipment for handling flammable solvents, including explosion-venting door hardware, powered forced exhauster airflow safety switch, purge timer and digital indicating temperature controller.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

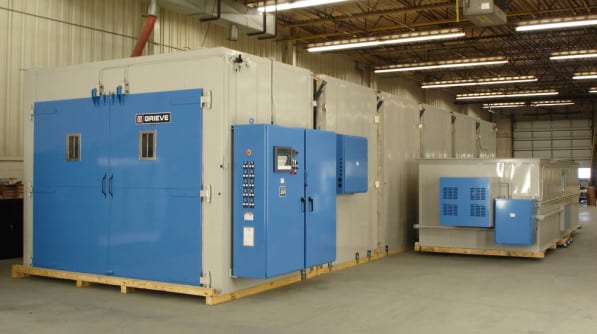

No. 999 is an electrically-heated, 350ºF (~176ºC) jumbo combination walk-in oven from Grieve, currently used for curing composite parts at the customer’s facility. Workspace dimensions measure 10’W x 40’D x 8’H. 160KW are installed in Incoloy sheathed tubular elements to heat the unit, while two 20-HP recirculating blowers with total 49,500 CFM capacity provide combination airflow to the load.
This Grieve oven features 4” insulated walls throughout, removable top-mounted heat chamber (shown removed in photo), aluminized steel interior and exterior, front and rear double doors with air-operated opening assist plus an 8” x 10” double pane Pyrex window in each door, 1/4” thick plate floor and four interior oven lights. The unit was split into six sections for installation clearance at the customer’s factory.
No. 999 is equipped with all safety equipment for handling flammable solvents, including explosion venting door hardware, 2600CFM powered forced exhauster and motorized dampers on intake and exhaust for accelerated cooling. The unit is built to NEMA 12 electrical standards.
Controls on this Grieve jumbo combination walk-in oven include a digital programming temperature controller, strip chart recorder, SCR power controller and ten digital countdown timers.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 793 is an electrically-heated belt conveyor oven from Grieve, currently in use drying moisture from tubular heating elements. This unit has a maximum operating temperature of 850°F and workspace dimensions of 24″ W x 12′ D x 15″ H.
The conveyor consists of a 2′ long open belt loading heat zone, 12′ long insulated heat zone with recirculated airflow and a 2′ long open unloading zone.
7″ thick insulated walls are featured throughout this rugged Grieve oven, which has 80 KW total heat input installed in Incoloy sheathed tubular heating elements. A 4,200 CFM, 3 HP reciruclating blower provides vertical downward airflow to the workload.
No. 793 further features an aluminized steel interior and exterior, as well as an 18″ W, 1″ x 1″ flatwire conveyor belt with 1/3 HP motor drive and variable speed from 2.0 to 5.7 inches per minute.
This Grieve oven’s controls and indicators are all mounted in a single enclosure for easy access.
Adjustable dampers at each end of the heat zone can be lowered near the load to minimize heat loss during operation.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 1004 is an electrically-heated, 500ºF (~260ºC) top-loading oven from Grieve, currently used to heat weldments at the customer’s facility. Workspace dimensions measure 64” W x 48” D x 48” H. 45KW are installed in Incoloy sheathed tubular elements to heat the unit, while a 3000 CFM, 2-HP recirculating blower provides horizontal airflow to the load.
This Grieve oven features 4” insulated walls, aluminized steel interior and exterior, reinforced 1/4” steel plate top, air-operated rear-hinged door, wear bars at the sides of the workspace and a floor reinforced for 5000 lb. loads at the removable subway grate.
Controls on No. 1004 include a digital programming temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and fused disconnect switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 800 is an electrically-heated, 850ºF (~454ºC) cabinet oven from Grieve, currently used for drying specialty pharmaceutical powders at the customer’s facility. Workspace of this unit measures 38” W x 26” D x 38” H. 20 KW are installed in Incoloy-sheathed tubular heating elements, while an 800 CFM, 3/4-HP recirculating blower provides horizontal airflow to the workload.
This walk-in oven features 6” insulated walls, Type 304, 2B finish stainless steel interior with continuously welded seams, disposable fresh air filter, stainless steel loading truck and a transfer dolly, including an oven-to-dolly latch and dolly-to-truck latch.
In addition, No. 800 has all safety equipment onboard to handle flammable solvents, including a minihelic pressure gauge to indicate internal oven pressure.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 986 is an electrically-heated, 500ºF (~260ºC) vertical airflow walk-in oven from Grieve, currently used for curing composite parts at the customer’s facility. Workspace dimensions measure 30” W x 24”D x 144”H. 30KW are installed in Incoloy sheathed tubular elements to heat the unit, while a 4200 CFM, 3-HP recirculating blower motor provides combination airflow to the workload.
This unique Grieve walk-in oven features 4” thick insulated walls, aluminized steel exterior and Type 304, 2B stainless steel interior. The floor of the workspace is reinforced to accommodate 200 lb. loads. An 8” x 10” double-pane Pyrex window for load inspection and an interior oven light are also onboard. All safety equipment required for handling flammable solvents, including explosion-venting door hardware, are included on this unit, as well.
No. 986 is built to JIC/NEMA 12 electrical standards. Controls include a digital programming temperature controller, manual reset excess temperature controller with separate contactors and recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
