No. 843 is an 850°F (454°C), gas-heated cabinet oven from Grieve, currently used for curing paint on steel and aluminum test coupons at the customer’s facility. Workspace dimensions of this oven measure 20” W x 20” D x 20” H. 100,000 BTU/HR are installed in a modulating gas burner, while a 600 CFM, ½-HP recirculating blower provides horizontal airflow to the workload.
This Grieve oven has 6” insulated walls, an aluminized steel exterior and Type 430 stainless steel interior. The oven features a 12”wide x 8” high door installed in main door. Additional safety features include those required by IRI, FM and National Fire Protection Association Standard 86 for gas heated equipment, including a 325 CFM, ½-HP powered forced exhauster.
Controls on the No. 843 include a digital indicating temperature controller.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.
Continue reading
No. 865 is a 750°F (399°C), three-zone conveyor oven from Grieve, currently used for curing coatings at the customer’s test facility. Workspace dimensions of this oven measure 30” W x 18’ D x 15” H. 90KW (30 KW per zone) are installed in Incoloy sheathed tubular heating elements, while three 1500 CFM, 1-1/2 HP recirculating blowers provide vertical downward airflow to the workload.
This Grieve conveyor oven has a 4’ long open belt loading zone and 4’ long open unloading zone. Features include three 6’ long insulated heat zones with independent recirculated airflow and temperature control, 6” insulated walls and aluminized steel exterior. Type 304, 2B finish stainless steel interior with continuously backwelded seams. Additional features include 24” wide, 1” x 1” 304 stainless steel flat wire conveyor belt with ½ HP motor drive, variable from 0.1 to 2 feet per minute. The oven is sectioned into five pieces for shipping. The oven has safety equipment for handling flammable solvents, including explosion venting door hardware.
Controls on the No. 865 include digital indicating temperature controllers and a 3-pen circular chart recorder.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.
Continue reading
No. 852 is an 850°F (454°C), high temperature walk-in oven from Grieve, currently used for heat treating and baking varnish at the customer’s facility. Workspace dimensions of this oven measure 60” W x 96” D x 72” H. 120 KW are installed in Incoloy-sheathed tubular heating elements, while a 7800 CFM, 5-HP recirculating blower provides combination airflow to the workload.
This Grieve oven has 8” insulated walls and a 4” insulated floor. Additional features include an aluminized steel interior and exterior and safety equipment for handling flammable solvents, including explosion venting door hardware.
Controls on the No. 852 include a digital indicating temperature controller & manual reset excess temperature controller with separate contactors.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.
Continue reading
No. 897 is a 350°F (177°C), belt conveyor oven from Grieve, currently used for preheating trays of parts prior to potting operations at the customer’s facility. Workspace dimensions of this oven measure 36” W x 120” D x 15” H. 30 KW are installed in Incoloy-sheathed tubular heating elements, while a 6000 CFM, 5-HP recirculating blower provides vertical downward airflow to the workload.
This Grieve belt conveyor oven has a 48” long open belt loading zone and a 10’ long insulated heat zone with recirculated airflow. Features include a 30” wide, 1” x1” high carbon steel flat wire conveyor belt with 1/4-HP motor drive, variable from 1.4 to 27 inches per minute. Additional features include 4” insulated walls, aluminized steel interior and exterior and a manually operated vertical lift door at unload with viewing window. The oven also has a photo cell to automatically stop the belt when parts reach the unload position.
Controls on the No. 897 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and SCR power controller.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.
Continue reading

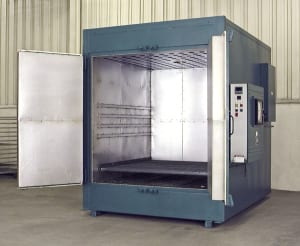

No. 997 is a 750ºF electrically-heated cabinet oven from Grieve, currently used for heating Teflon billets at the customer’s facility. Workspace dimensions on this oven measure 72” W x 72”D x 72”H. 100KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 10,000 CFM, 7-1/2 HP recirculating blower provides vertical upward airflow to the workload.
This Grieve cabinet oven features 6” insulated walls, subway grating shelf at the bottom of the oven workspace rated for 2500 lb. loading and four (4) pairs of shelf supports rated at 200 lbs. per shelf.
Controls on No. 997 include a digital programming temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and 10” diameter circular chart recorder.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 900 is a gas-heated 350°F(~176.67°C) floor level cabinet oven from Grieve, currently used for drying polycarbonate plastics. 100,000 BTU/HR is installed in a modulating natural gas burner and workspace dimensions are 36” wide x 36” deep x 60” high.
The oven has 4” insulated walls and a 750 CFM, 3/4-HP recirculating blower provides vertical airflow to the oven. Safety equipment, such as a 325 CFM, 1/3-HP powered force exhauster, is included as required by IRI, FM and the National Fire Protection Association Standard 86 for gas-heated equipment. The oven also features shelf supports on 3” vertical centers that are rated 200 lb. per level for a 1000 lb. maximum oven load.
Controls onboard No. 900 include a recirculating blower airflow safety switch, digital indicating temperature controller and a manual reset excess temperature controller with separate contactors.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart
Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-
9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.
Agency Info: Tim Daro 847-934-4500
Continue reading
No. 796 is an electrically-heated 500°F(~260°C) Class 100 cleanroom cabinet oven from Grieve, currently used for drying water from stainless steel and Teflon filter assemblies. 10 KW are installed in Incoloy sheathed tubular heating elements. Workspace dimensions are 24” wide x 36” deep x 27” high.
The unit has 4” insulated walls and a Type 304, 2B finish stainless steel interior with continuously welded seams. The exterior is finished in white epoxy paint and has a #4 brushed finish stainless steel door cover and control panel face.
A 600 CFM, 3/4-HP recirculating blower provides horizontal airflow to the oven and a 24” x 24” x 6” thick stainless steel high temperature HEPA recirculating filter helps to purify the air to the Class 100 standard. The oven is also equipped with a 12” x 12” x 6” thick HEPA fresh air filter with 2” prefilter. Safety equipment is included for handling flammable solvents, including explosion venting door hardware.
Controls onboard this Grieve cleanroom oven include a digital programming temperature controller and SCR power controller.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.
Continue reading

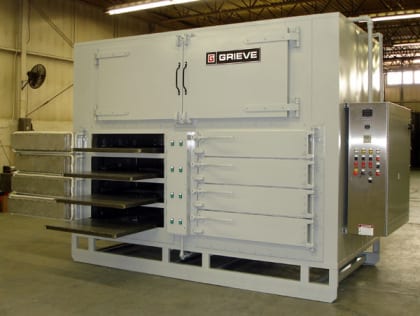

No. 1013 is an electrically-heated, 350ºF (~177ºC) cabinet oven from Grieve, currently used for curing rubber parts at the customer’s facility. Eight workspace openings with roller supported shelves each measure 36” W x 6-1/4” H x 24” D. 45 KW are installed in Incoloy-sheathed tubular heating elements, while a 7800 CFM, 5-HP recirculating blower provides horizontal airflow to the common central duct of the oven to heat the load.
This Grieve cabinet oven features 4” thick insulated walls, aluminized steel interior and exterior, top mounted heat chamber with access doors and 200 lb. capacity shelves that extend 24” in front of the oven for easier loading.
No. 1013 is also equipped with a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and all required safety equipment for handling flammable solvents, including explosion venting door hardware. A programmable timer, interlocked to each door via a proximity switch, plus green lights for each door to indicate when curing time is completed are also onboard this oven.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

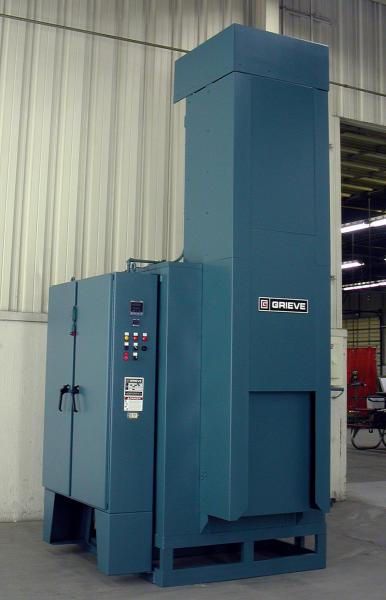

No. 995 is an electrically-heated, 1250ºF (~670ºC) high-temperature cabinet oven from Grieve, currently used for preheating steel forgings at the customer’s facility. Workspace dimensions in this oven measure 20” W x 40” D x 20” H. 60 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 2000 CFM, 2HP recirculating blower provides horizontal airflow to the workload.
Specially designed to handle high-temperature operation, this Grieve cabinet oven features 10” thick insulated walls, comprising 2” of 1900ºF block and 8” of 10 lb./cf density rockwool, plus Type 304, 2B stainless steel interior, motor-operated vertical lift door and alloy roller rails at the workspace floor level, rated for 1500 lb. loading.
No. 995 is built to NEMA 12 electrical standards and is equipped with SCR power control.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

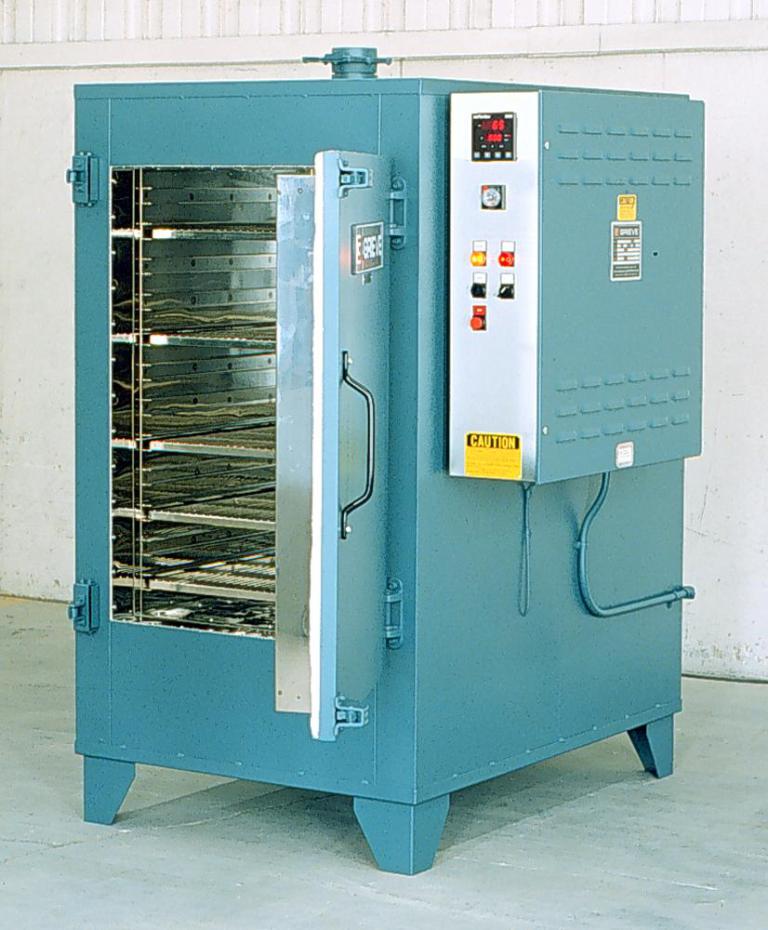

Grieve Corporation introduces Model VA-500, a standard 500ºF electric cabinet oven, which features full vertical-up air flow. This unit is specifically designed for workloads where heated air must pass upward through the load – such as open-ended cylinders or hanging parts.
Workspace dimensions inside this unit measure 26” wide x 26” deep x 38” high. 6.6 kW power is installed in Nichrome wire heating elements, while a 700 CFM, 1/2 HP recirculating blower provides vertical upward airflow to the workload.
No. 828 has 4” thick insulated walls, an aluminized exterior, Type 430 stainless steel interior, 12 shelf supports on 3” centers, two (2) standard nickel plated wire shelves with 200 lb. capacity each and a heavy-duty door with explosion-venting latches and a high-temperature door gasket with stainless steel spring insert.
Standard equipment on this Grieve cabinet oven include a digital indicating temperature controller, manual reset excess temperature controller with separate heating element control contactors and recirculating blower airflow safety switch. This unit also meets the requirements of National Fire Protection Association Standard 86, Industrial Risk Insurers, Factory Mutual and OSHA Standards, as do all standard Grieve cabinet ovens.
This unit was completely designed, engineered, built and fully tested by Grieve.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
