No. 947 is an electrically-heated 350°F cabinet oven from Grieve, currently used for storing modeling clay at an automaker’s model shop. Workspace dimensions measure
35”W x 31”D x 42”H. 9.6 kW installed in Nichrome wire heating elements provide heat input, while a 750 CFM, 3/4 HP recirculating blower provides horizontal airflow across the load.
This Grieve cabinet oven features 4” thick insulated walls, a stainless steel exterior with #4 brushed finish Type 430 stainless steel interior, two independently operating doors for access to the workload and two tiers of five shelves, supported on rollers. Swivel casters with swivel locks and wheel brakes are also included for oven portability.
No. 947 has a digital indicating temperature controller, manual reset excess temperature controller with separate control contactors and recirculating blower airflow safety switch.
As shown in the photo, this Grieve oven has a top-mounted heat chamber for space efficiency.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

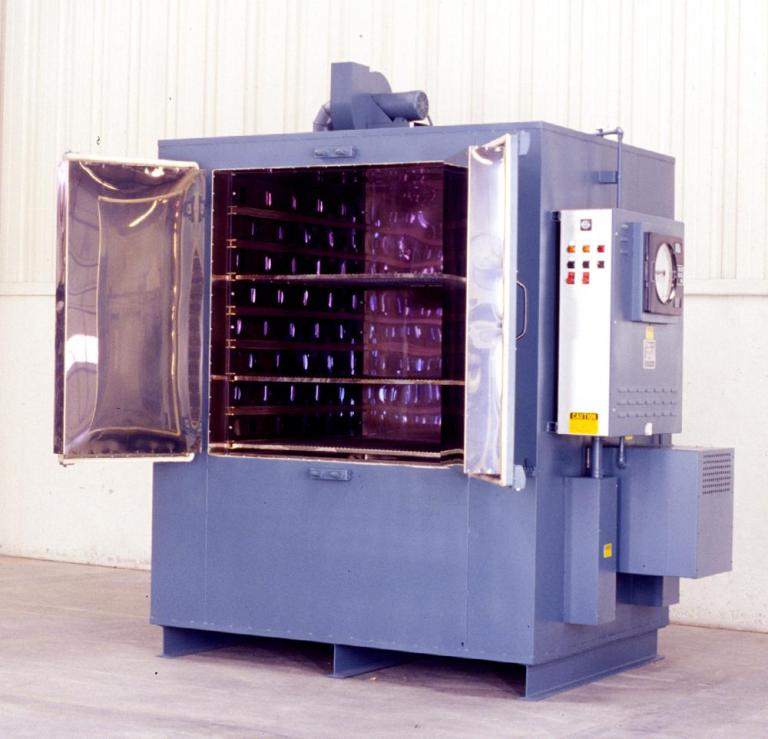

No. 932 is an electrically-heated, 500°F cabinet oven from Grieve, currently used for curing large silicone rubber parts. Workspace dimensions measure
50”W x 50”D x 50”H. 60 kW power installed in Incoloy-sheathed tubular heating elements and a 2450 CFM, 1-1/2-HP recirculating blower provides horizontal airflow to the workload.
This Grieve cabinet oven features 4” insulated walls, aluminized steel exterior, Type 430 stainless steel interior, brushed stainless steel control panel face, heavy-duty doors and door frame with explosion-venting latches and a 325 CFM powered forced exhauster. The oven is supported by I-beams to allow the loading cart’s front wheels to extend under the oven during loading.
No. 932 also includes a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and 10” diameter circular chart recorder.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 930 is an electrically-heated, 500°F inert atmosphere cabinet oven from Grieve, currently used for liquid flow solder masking under a nitrogen atmosphere. Workspace dimensions measure 38” W x 38” D x 38” H. 30 kW are installed in Incoloy-sheathed tubular heating elements, while a 1500 CFM, 1-1/2 HP recirculating blower provides horizontal airflow to the load.
This Grieve inert atmosphere cabinet oven features 4” insulated walls, aluminized steel exterior, Type 430 stainless steel interior and an automatic door switch to shut off heaters and blower when the door is opened.
Special inert atmosphere construction features include a pressure regulator, flowmeter, pressure gauge, inner oven walls sealing directly against a 1/2” thick silicone rubber door seal, air jacket on the inner oven for cooling, blower shaft seal, positive latching door hardware, adjustable offset door hinges, outlet with pressure relief, interior seams welded gas-tight and all oven wall penetrations equipped with compression fittings to maintain atmosphere integrity.
No. 930 also includes a digital programming temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and fused disconnect switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 929 is an electrically-heated, 500°F cabinet oven with vertical airflow from Grieve, currently used for various heat processings at a customer’s facility. Workspace dimensions measure 26”W x 38”D x 50”H. A 700 CFM, 1/2 HP recirculating blower provides a vertical upward airflow to as many as 16 shelves inside the oven workspace.
This Grieve cabinet oven features an aluminized steel exterior, Type 304 stainless steel interior, brushed stainless steel control panel face, heavy-duty door and door frame with explosion-venting latches and 4” insulated walls.
No. 929 also includes a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and a recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 927 is an electrically-heated, 750°F cabinet oven from Grieve, specially modified with internal air filtration, currently used for curing Teflon. 64 kW are installed in Incoloy sheathed tubular heating elements, while a 3300 CFM, 2 HP recirculating blower provides horizontal airflow to the load. Workspace dimensions measure 50”W x 50”D x 50”H.
This Grieve cabinet oven includes two 24” x 24” x 6” thick stainless steel
high-temperature HEPA recirculating air filters, plus a 24” x 24” x 6” thick HEPA fresh air filter with a 2” prefitter.
No. 927 is constructed with an aluminized steel exterior, Type 304, 2B stainless steel interior with continuously backwelded seams, 6” insulated walls and all safety equipment required for handling flammable solvents, including explosion-venting door hardware.
A digital programming temperature controller, 10” diameter circular chart recorder and 30-hour shutdown timer are also onboard this Grieve cabinet oven.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 912 is an electrically-heated, 500°F cabinet oven from Grieve, currently used for curing rubber parts. Workspace dimensions measure 20”W x 20”D x 26”H on this oven, which features a stainless steel exterior with #4 brushed finish and a Type 430 stainless steel interior with continuously backwelded seams and 4” thick insulated walls.
10kW installed in Incoloy-sheathed tubular heating elements and a 600 CFM, 1/2HP recirculating blower provide heated horizontal airflow across the workload.
This oven includes a 325 CFM powered forced exhauster, as well as a motorized damper on the exhaust for accelerated cooling. The oven exhaust discharges into a Type 304 stainless steel scrubber unit with brass piping. The scrubber uses recirculated water sprayed by a 1-1/2HP pump into the exhaust to remove particulates.
No. 912 has a digital indicating temperature controller, 10” diameter circular chart recorder, fused disconnect switch and eight permanently-mounted survey thermocouples connected to a jack strip on the oven’s control panel.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

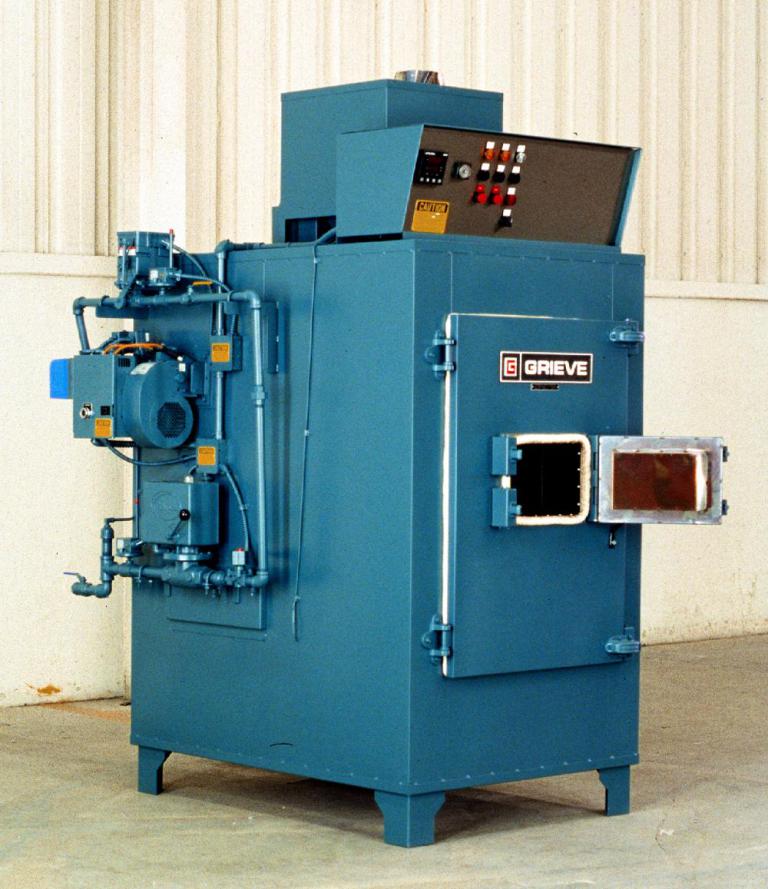

No. 915 is a gas-fired, 650°F cabinet oven from Grieve, currently used for testing paint coupons. Workspace dimensions measure 26”W x 26”D x 38”H. 100,000 BTU/hr. are installed in a modulating natural gas burner, while a 1000 CFM, 1-HP recirculating blower provides vertical upward airflow to the workload.
This cabinet oven features an aluminized steel exterior, 6” thick insulated walls and Type 430 finish stainless steel interior. A 12”W x 8”H access hatch is installed in the main door of this oven.
Also onboard No. 915 are a digital indicating temperature controller, a top-mounted control panel and all safety devices required by IRI, FM and NFPA Standard 86 for gas-heated equipment, including a 325 CFM, 1/3-HP powered forced exhauster.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 923 is an electrically-heated, 500°F Class 100 cleanroom cabinet oven, currently used for drying precision parts in baskets. Workspace dimensions measure 36”W x 36”D x 51”H. 30KW power installed in Incoloy-sheathed tubular heating elements and a 1500 CFM, 2-HP recirculating blower provide heated horizontal airflow to the workload.
This cleanroom oven features an aluminized steel exterior finished with white epoxy paint, #4 brushed finish stainless steel door cover and control panel face, Type 304, 2B finish stainless steel interior with continuously backwelded seams and 4” thick insulated walls. Double front doors with positive latching door hardware are also included.
No. 923 has two 30” x 24” x 6” thick stainless steel high-temperature HEPA recirculating filters and easily removable ductwork to expose the filters for inspection and replacement.
Controls on this Class 100 cleanroom cabinet oven include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and solid-state contactors.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 887 is a gas-fired 1000°F cabinet oven from Grieve, currently used for curing metal coatings onto parts. The unit’s workspace dimensions measure 38”W x 38”D x 38”H. 175,000 BTU/HR installed in a modulating natural gas burner provide heat, while a 2,000 CFM, 2-HP stainless steel recirculating blower furnishes a horizontal airflow across the workload.
This cabinet oven features an aluminized steel exterior, Type 304, 2B finish stainless steel interior, plus inner and outer door gaskets which seal against the door plug and the front face of the oven.
No. 887 has 8” thick insulated oven walls, consisting of 2” of 1900°F block and 6” of 10 lb/cf density rockwool insulation.
All safety equipment is onboard as required by IRI, FM and NFPA Standard 86 for gas-heated equipment, including a 325 CFM, 1/3-HP powered forced exhauster.
A digital indicating temperature controller is also provided.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
