No. 914 is an indirect gas-heated, 650°F walk-in oven from Grieve, currently used for drying plastic molds. Workspace dimensions measure 60”W x 72”D x 72”H. This oven has 800,000 BTU/hr. installed in a modulating natural gas burner fired into an alloy radiant tube for indirect heating. A 6,000 CFM, 5-HP recirculating blower provides horizontal airflow to the workload.
This Grieve walk-in oven has an aluminized steel exterior, 5” thick insulated walls and a Type 304, 2B stainless steel interior.
A 1500 CFM powered forced exhauster, motorized dampers on the fresh air intake and exhaust for accelerated cooling, digital programming temperature controller and 10” diameter circular chart recorder are onboard.
No. 914 further features all safety devices required by IRI, FM and NFPA Standard 86 for indirect gas-heated equipment.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 909 is a gas-fired, 5000F walk-in oven from Grieve, currently used for curing various rubber parts. Workspace dimensions measure 30”W x 48”D x 57”H and the oven is supplied with a shelf truck, equipped with shelf supports on 3 ½” centers.
175,000 BTU/hr. are installed in a modulating natural gas burner. A 2,000 CFM, 2-HP recirculating blower motor provides horizontal airflow from a top-mounted heat chamber. The unit features 4” thick insulated walls, a stainless steel exterior with #4 brushed finish and a Type 430 stainless steel interior with continuously backwelded seam construction. The oven floor has 4” insulation plus truck wheel guide tracks built-in.
Motorized dampers on the air intake and exhaust provide accelerated cooling. The oven exhauster discharges into a scrubber unit which utilizes recirculated water, sprayed by a 1 ½-HP pump into the exhaust to remove particulates. This scrubber is constructed of Type 304 stainless steel with brass piping.
No. 909 also includes a 10” diameter circular chart recorder, ten permanently mounted survey thermocouples connected to a jack strip at the control panel and a fused disconnect switch. All safety devices required by IRI, FM and NFPA Standard 86 for gas-heated equipment are onboard, including a 325 CFM, 1/3-HP powered forced exhauster.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

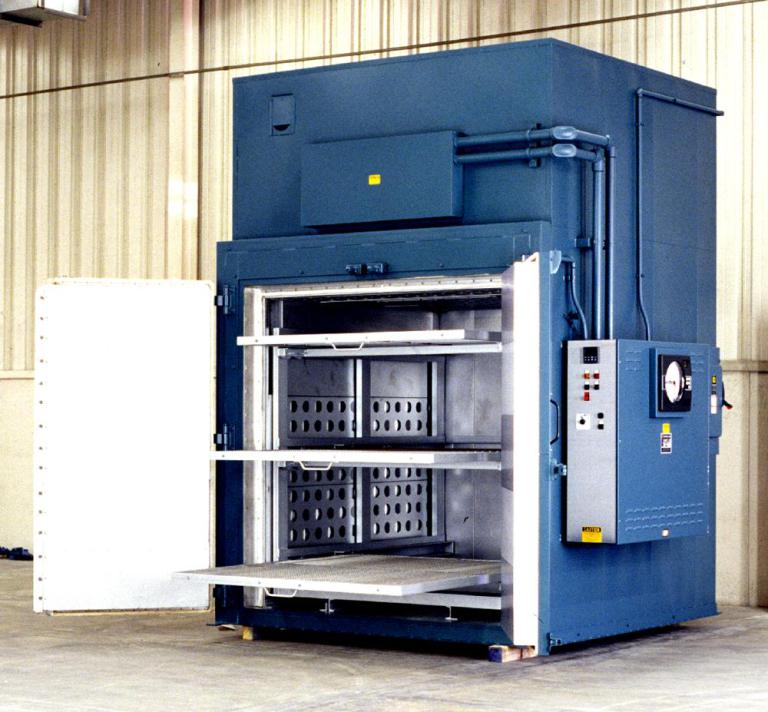

No. 902 is an electric, high-temperature walk-in oven with a maximum operating temperature of 850°F. Specially modified with rollout shelving, it is currently in use heat treating various components at a customer’s facility. 100 kW total are installed in Incoloy sheathed tubular heating elements, while a 10,000 CFM, 7-1/2-HP recirculating blower provides combination airflow to the workload.
This oven has overall workspace dimensions measuring 72”W x 78”D x 78”H, with a top-mounted heating chamber, aluminized steel interior and exterior, plus 3 (three) rollout steel shelves, each 60”W x 72”L, rated for 400 lb. Loads. 8” thick oven walls comprise 2” of 1900°F block and 6” of 10 lb./cf density rockwool insulation.
Grieve No.902 features inner and outer door gaskets. The inner gasket seals directly against the door plug, while the outer gasket seals against the front face of the oven. Both doors are equipped with expansion joints on the inner face to guarantee uniform sealing at all operating temperatures.
Oven controls include a digital programming and recording temperature controller, manual reset temperature controller with separate contactors, recirculating blower airflow safety switch and SCR power controller.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 884 is a 500°F electric universal oven from Grieve, currently used to cure rubber parts with steel inserts. Workspace dimensions of this unit measure 52”W x 48”D x 72”H.
350,000 BTU/HR installed in a modulating natural gas burner heat workspace, while a 4,200 CFM, 3-HP recirculating blower provides horizontal airflow across the workload. A top-mounted heat chamber and remote-mounted control panel (shown aside the unit in the photo) are included.
This walk-in oven features a stainless steel exterior with #4 brushed finish, Type 430 stainless steel interior, 4” thick insulated walls, 2” thick insulated floor with two pairs of truck wheel guide tracks and motorized dampers on the exhaust for accelerated cooling.
No. 884 has all safety equipment required by IRI, FM and NFPA standard 86 for gas-heated equipment, including a 975 CFM, 1-HP powered forced exhauster.
The oven also includes a digital programming temperature controller, tower light to indicate oven status and fused disconnect switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
No. 835 is a 1200ºF electrically-heated walk-in oven from Grieve, currently used for heat treating steel parts at a customer’s facility.
Workspace inside this oven measures 48” wide x 72” deep x 72” high and a maximum temperature of 1200ºF is provided by 120KW power, installed in Incoloy-sheathed tubular heating elements. A 10,000 CFM, 7 ½-HP recirculating blower provides combination vertical/horizontal airflow to the load.
No. 835 features an aluminized steel exterior, 16 ga. stainless steel interior and 10” thick insulated walls, comprising 2” of 1900ºF block and 8” of 10 lb. density rockwool insulation, as well as a 7” insulated floor with integral truck wheel guide tracks.
Safety and control equipment on this Grieve oven includes a 325 CFM powered forced exhauster, digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch, and a 4-pen circular chart recorder.
