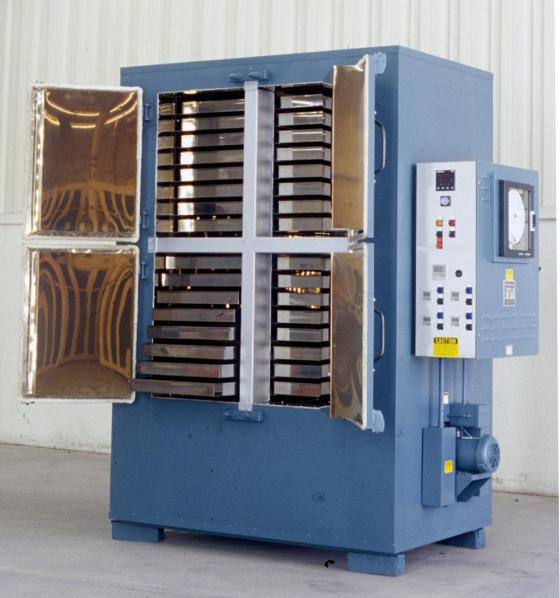

No. 944 is a 750°F electrically-heated cabinet oven from Grieve, currently used for sintering operations at a customer’s facility. Workspace dimensions measure
44”W x 30”D x 60”H. 30kW installed in Incoloy-sheathed tubular heating elements heat the oven, while a 2000 CFM, 2 HP recirculating blower provides a horizontal airflow to the workload.
The Grieve cabinet oven features 6” insulated walls, aluminized steel exterior, Type 430 stainless steel interior and four 20”W x 28”H independent doors for easy access to the workspace. Eight removable loading pans are provided for each door compartment (32 pans total).
No. 944 has a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and 10” diameter circular chart recorder onboard. In addition, four timers, each with a pilot light and door interlock, are included to individually time the heating process in each compartment.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

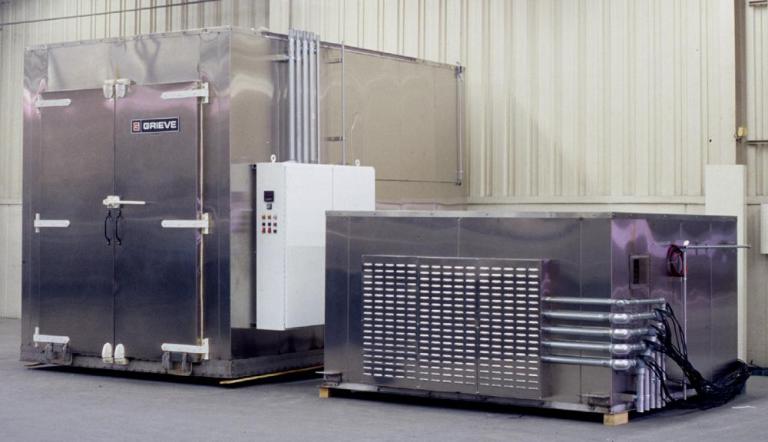

No. 946 is a 1000°F, electrically-heated vertical airflow walk-in oven from Grieve, currently used for curing coatings on titanium screens. Workspace dimensions measure 72”W x 156”D x 96”H. 360kW installed in Incoloy-sheathed tubular heating elements provide the power, while a 24,500 CFM, 20 HP recirculating blower provides a vertical downward airflow to the workload.
This Grieve oven features 8” insulated walls, Type 304L, 2B finish stainless steel interior, stainless steel exterior with #4 brushed finish and 6” insulated floor with integral truck wheel guide tracks for easy loading and unloading.
No. 946 has double doors, front and rear, each with inner and outer door gaskets. The inner gasket seals against the door plug, while the outer gasket seals directly against the front of the oven.
A removable top-mounted heat chamber (shown removed in photo) is also provided.
Safety equipment is onboard for handling flammable solvents, including explosion-venting door hardware.
Also featured on this Grieve walk-in oven are digital programming temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and SCR power controller.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

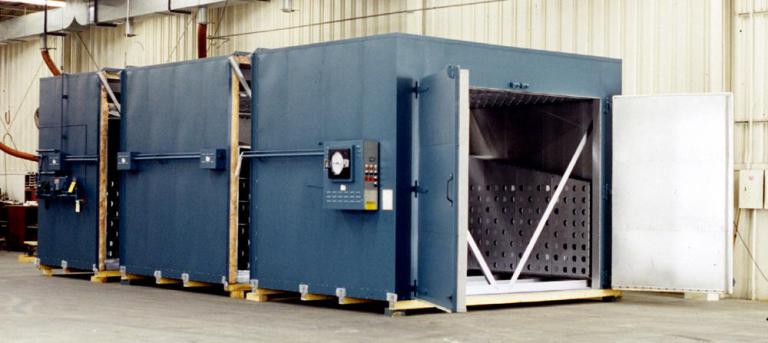

No. 950 is a 350°F gas-heated walk-in oven from Grieve, currently used for bonding composite materials inside molds. Workspace dimensions of this oven measure 10’W x 20’D x 8’H. 700,000 BTU/HR installed in a modulating natural gas burner provide heat, while a 24,500 CFM, 20-HP recirculating blower provides a combination airflow to the workload.
The Grieve walk-in oven (shown here split into three sections for shipping) features 4” insulated walls, aluminized steel interior and exterior, heavy-duty double doors and a 1/4” steel plate floor.
All safety devices required by IRI, FM and NFPA Standard 86 for gas-heated equipment are onboard No. 950, including a 6500 CFM powered forced exhauster. Also included here are a recording and programming temperature controller, plus motorized dampers on the air intake and exhaust for accelerated cooling.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

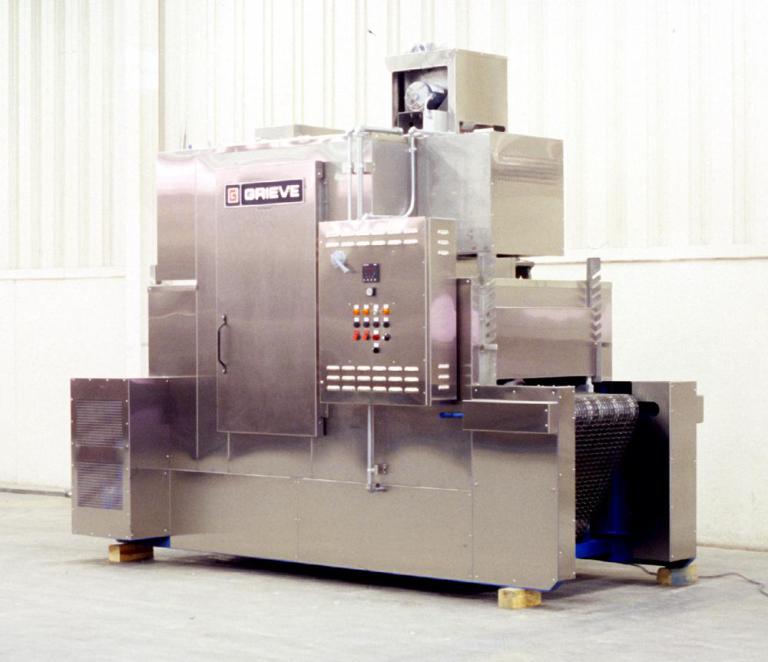

No. 937 is a gas-heated, 500°F belt conveyor oven from Grieve, currently used for curing rubber. Workspace dimensions measure 36”W x 68”D x 15”H. 175,000 BTU/hr installed in a modulating natural gas burner heat the unit, while a 3,300 CFM,
2 HP recirculating blower provides vertical downward airflow to the workload. This oven features a 6” long open belt loading zone, 12” long insulated, unheated entrance vestibule, 60” long insulated heating zone with recirculated airflow and a 12” long insulated unheated exit vestibule.
The unit has 4” insulated walls throughout, aluminized steel interior, stainless exterior with #4 brushed finish and a 30” wide, 1” x 1” flat wire conveyor belt with 1/4 HP motor drive, variable from 1-20 inches per minute.
This Grieve oven also included a digital indicating temperature controller and fused disconnect switch.
A side hinged door allows access to the workspace and heat chamber.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

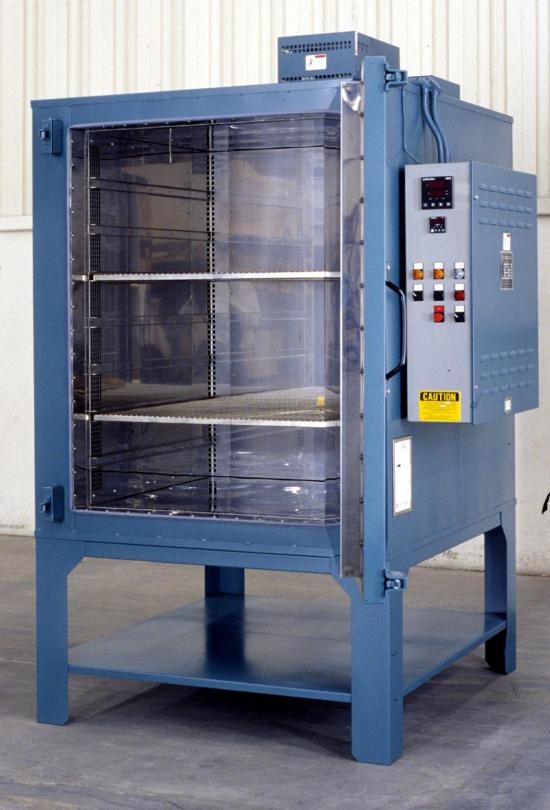

No. 953 is a 500°F, electrically-heated universal oven from Grieve, currently used by the customer for various paint baking operations. Workspace dimensions of this oven measure
36”W x 36”D x 48”H. 9kW installed in Nichrome wire heating elements provide the power, while a 600 CFM, 1/2-HP recirculating blower provides horizontal front-to-rear airflow.
This universal oven features 4” insulated walls, aluminized steel exterior, Type 430 stainless steel interior and an integral leg stand.
Safety equipment required for handling flammable solvents is onboard this Grieve oven, including explosion-venting door hardware, powered forced exhauster with airflow safety switch and purge timer.
No. 953 also features a digital indicating temperature controller and a recirculating blower airflow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

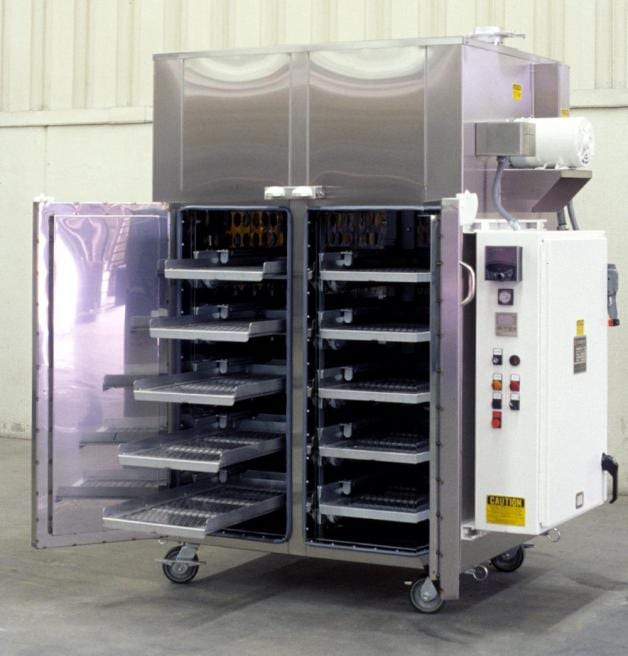

No. 947 is an electrically-heated 350°F cabinet oven from Grieve, currently used for storing modeling clay at an automaker’s model shop. Workspace dimensions measure
35”W x 31”D x 42”H. 9.6 kW installed in Nichrome wire heating elements provide heat input, while a 750 CFM, 3/4 HP recirculating blower provides horizontal airflow across the load.
This Grieve cabinet oven features 4” thick insulated walls, a stainless steel exterior with #4 brushed finish Type 430 stainless steel interior, two independently operating doors for access to the workload and two tiers of five shelves, supported on rollers. Swivel casters with swivel locks and wheel brakes are also included for oven portability.
No. 947 has a digital indicating temperature controller, manual reset excess temperature controller with separate control contactors and recirculating blower airflow safety switch.
As shown in the photo, this Grieve oven has a top-mounted heat chamber for space efficiency.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

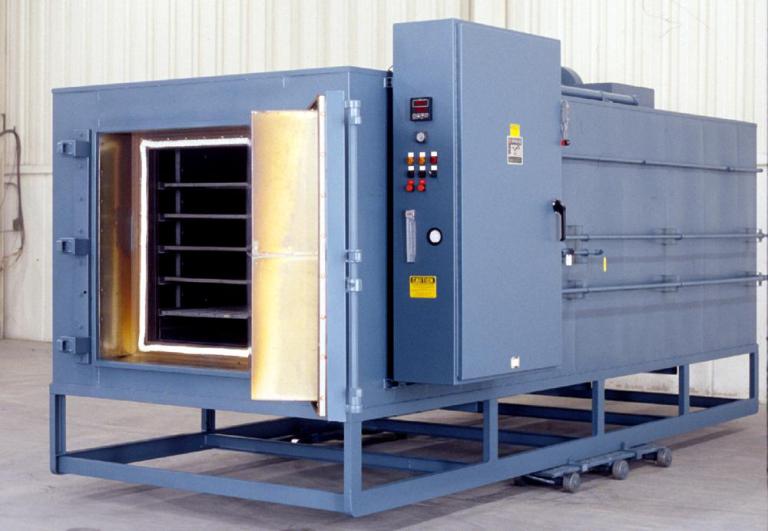

No. 938 is a 1250°F electrically-heated inert atmosphere oven from Grieve, currently used for heat treating copper parts at the customer’s facility. Workspace dimensions measure 36”W x 120”D x 36”H. 80kW installed in Incoloy-sheathed tubular heating elements deliver power to the unit, while a 6,000 CFM, 5 HP recirculating blower provides a universal front to rear airflow to the load.
This inert atmosphere oven features an aluminized steel exterior, Type 304, 2B finish stainless steel interior and 10” insulated walls, comprising 2” of 1900°F block and 8” of 10 lb./cu. ft. density rockwool insulation. Inner and outer door gaskets are provided, with the inner gasket sealing against the door plug, while the outer gasket seals directly against the front face of the oven body.
No. 938 has all construction features onboard for inert atmosphere operation, including pressure regulator, pressure gauge, internal high temperature gasket, all-welded expansion connection in doorway throat, air jacket on inner oven body for cooling, 1/2” thick silicone rubber atmosphere seal, blower shaft seal, positive latching door hardware, adjustable offset door hinges, outlet with pressure relief, interior seams welded gas-tight and all wall penetrations fitted with compression fitting for maximum integrity.
Additionally, a 975 CFM blower is provided to pull air through the air jacket on inner oven for cooling. The entire unit is built to meet JIC / NEMA 12 electrical standards.
A digital programming temperature controller, manual reset excess temperature controller with separate contactors and SCR power controller are included, as well.
This Grieve inert atmosphere oven is mounted to an integral leg stand.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

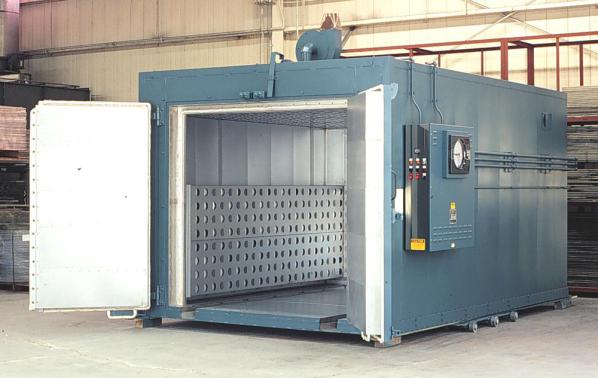

No. 839 is an electrically-heated, 850°F walk-in oven from Grieve, currently used for heat treating and high-temperature batch paint baking. Workspace dimensions measure 72”W x 120”D x 72”H. 120 kW are installed in Incoloy-sheathed tubular heating elements, while a 12,500 CFM, 10-HP recirculating blower provides a combination horizontal/vertical airflow to the workload.
This Grieve walk-in oven features an aluminized steel exterior and interior with 7” thick insulated walls, plus a 4” thick insulated floor with built-in truck wheel guide tracks. Inner and outer door gaskets are provided, with the inner gasket sealing against the door plug, while the outer gasket seals directly against the front face of the oven.
All safety equipment required by NFPA Standard 86 for handling flammable solvents are onboard No. 839, including explosion-venting door hardware, powered forced exhauster air flow safety switch and purge timer, . Also featured on this walk-in oven are a recording and programming temperature controller with separate contactors and a recirculating blower air flow safety switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

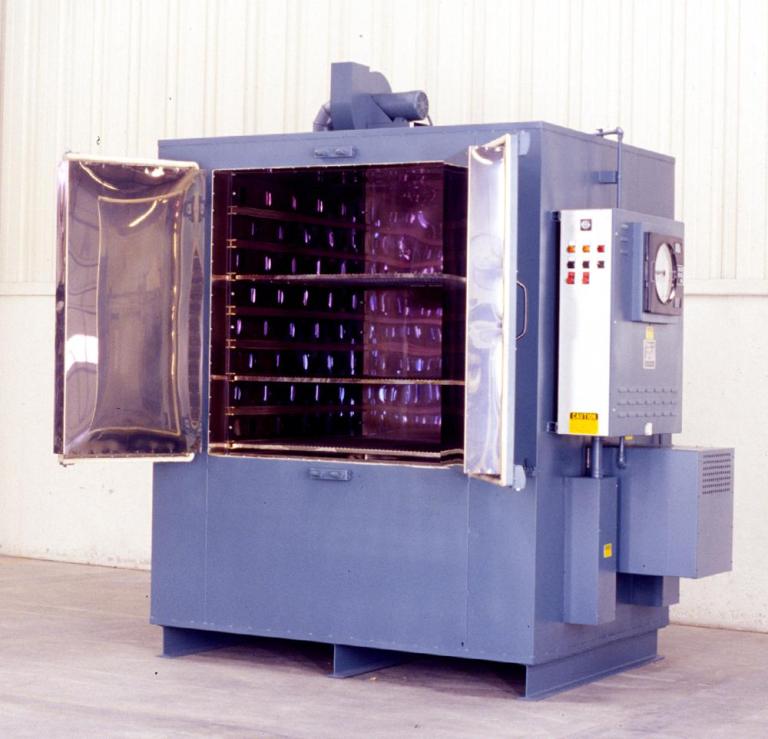

No. 932 is an electrically-heated, 500°F cabinet oven from Grieve, currently used for curing large silicone rubber parts. Workspace dimensions measure
50”W x 50”D x 50”H. 60 kW power installed in Incoloy-sheathed tubular heating elements and a 2450 CFM, 1-1/2-HP recirculating blower provides horizontal airflow to the workload.
This Grieve cabinet oven features 4” insulated walls, aluminized steel exterior, Type 430 stainless steel interior, brushed stainless steel control panel face, heavy-duty doors and door frame with explosion-venting latches and a 325 CFM powered forced exhauster. The oven is supported by I-beams to allow the loading cart’s front wheels to extend under the oven during loading.
No. 932 also includes a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and 10” diameter circular chart recorder.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

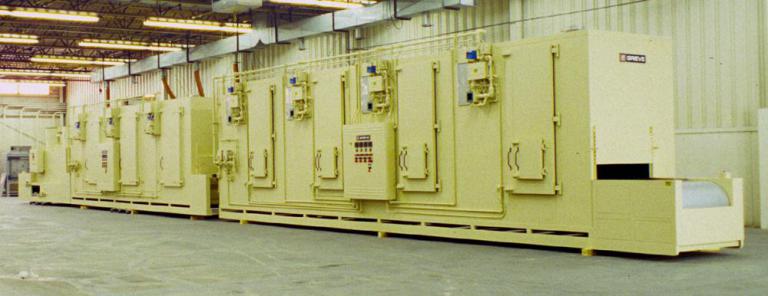

No. 919 is a seven-zone, gas-heated belt conveyor oven from Grieve, currently used to cure various coatings onto ceramic parts. Maximum operating temperatures are 350°F in Zones 1-4 and 1000°F in Zones 5-7. Workspace dimensions measure 51”W x 56’D x 15”H, with a 30” long open belt loading zone, four 3’ long insulated heat zones with independent recirculated airflow and temperature control (350°F), 30” long open zone, three 3’ long insulated heat zones with independent recirculated airflow and temperature control (1000°F), 9’ long cooling zone and 3’ long open unloading zone.
400,000 BTU/hr. are installed in modulating natural gas burners in Zones 1-4, with 500,000 BTU/hr. in Zones 5-7
A 1/2” wide, B36-20-12-14, Type 316 stainless steel balanced weave conveyor belt is powered by a 1-HP motor drive, variable from 1.5 to 30 inches per minute.
A 30,000 CFM, 30-HP recirculating blower provides vertical upward airflow to the workload in Zones 1-4, while 25,000 CFM, 20-HP unit in Zone 5 and 12,500 CFM, 10-HP units in Zones 6-7 do likewise.
Two 36” diameter tubeaxial fans, each driven by a 5-HP motor, push / pull air through the oven’s cooling zone.
This Grieve belt conveyor oven features an aluminized steel exterior and Type 316L, 2B finish stainless steel interior with continuously welded seams. There are 4” thick insulated walls in Zones 1-4 and 8” thick insulated walls, comprising 2” of 1900°F block and 6” of 10 lb/cf density rockwool, in Zones 5-7.
The unit has top mounted heating chambers, doors for access to the work space and heat chambers in each zone and is designed to be split into two sections for easier shipment.
No. 919 has onboard all safety devices required by IRI, FM and NFPA Standard 86 for gas-heated equipment, as well as digital indicating temperature controllers.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP
