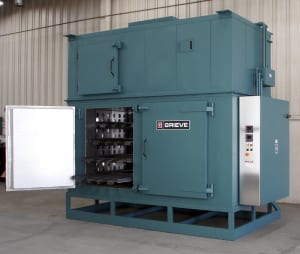

No. 1028 is a twin-compartment, 750ºF electric cabinet oven from Grieve, currently used for preheating large dies at the customer’s facility. Workspace dimensions of the two compartments on this oven each measure 40” W x 42” D x 51” H. 100 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 7800 CFM, 5-HP recirculating blower provides horizontal airflow to the workload in each compartment.
This Grieve cabinet oven features 8” insulated walls, removable top-mounted heat chamber, aluminized steel interior and exterior, plus two tiers of four 300 lb. capacity shelves supported by rollers to extend 14” in front of the oven for easy access.
Controls onboard No. 1028 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower air flow safety switch, SCR power controller and circuit breaker disconnect switch.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese
No. 987 is an 850ºF electric cabinet oven from Grieve, currently used for baking various paint samples at the customer’s facility. Workspace dimensions of this oven measure 20” W x 20” D x 20” H. 10 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 600 CFM, 1/2-HP recirculating blower provides horizontal airflow to the workload.
This Grieve cabinet oven features 4” insulated walls, aluminized steel exterior, Type 304, 2B stainless steel interior, a silhouette plate with removable cover inside the door opening and an oven hearth driven by a ¼-HP motor through a gear reducer with a torque limiting device variable from 1 to 27 RPM. This 19” diameter oven hearth is constructed from Type 304 stainless steel with 1” studs on 1” centers to support the paint coupons in process.
All safety equipment required for handling flammable solvents are onboard No. 987, including explosion-venting door hardware.
Controls onboard No. 987 include a digital indicating, time proportioning temperature controller and excess temperature controller with separate heating element control contactors. An auto door switch stops hearth movement when the oven door is opened.
For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese
