Siemens offers Sinamics G120C drives in new smaller frame size AA (FSAA)



New Sinamics G120C FSAA — the “Tiny Drive” in frame size AA from Siemens Industry, Inc.

Siemens announced today immediate availability of its popular Sinamics G120C drive in AA size, which replaces the previous G120C frame size A in power ratings up to 2.2 kW
(3 hp), including communication variants for USS, PROFIBUS, PROFINET and EtherNet/IP. Offering high power density in a smaller footprint, the new “tiny drive” offers fully compatible replacement for the equivalent power ratings on the previous version.

On new control cabinet designs, the G120C FSAA has significant size advantages, up to 32% less overall volume, for the OEM or integrator, but requires no re-engineering, when migrating from the G120C FSA on current jobs. Overall dimensions on the smaller unit, designed for use with PROFIBUS and USS variants are only 173mm high x 73mm wide x 155mm deep (6.8” x 2.8” x 6.1”).

Other benefits of the new G120C FSAA include use with increased motor cable lengths,
up to 50m (165 ft) for shielded and 150m (495 ft) for unshielded, plus identical voltage ratings, current ratings, load cycles and compatibility with all standard Siemens options such as operator panels, input and output chokes, as well as external Class B EMC filters.

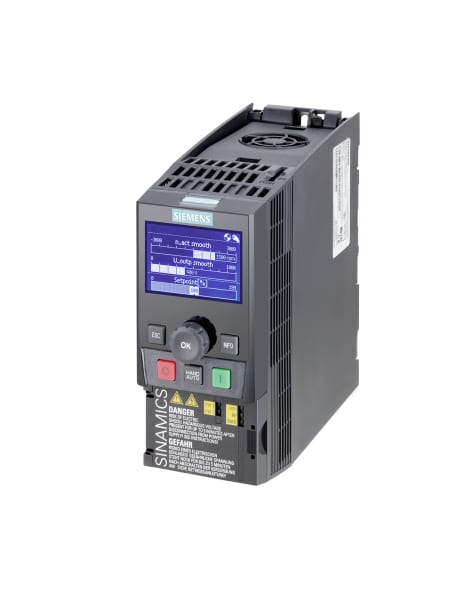

Sinamics G120C FSAA has smaller footprint, up to 32% less volume, but delivers comparable features to previous version of this Siemens drive.

The G120C FSAA offers UL open type, IP20 protection in the 0.55–2.2 kW (0.75–3 hp) range.

Through the introduction of this new tiny drive, Siemens can now offer machine builders another economical, space-saving and easy-to-operate standard AC drive with a wide range of functions, according to Robert Soré, product marketing manager for general purpose drives at Siemens. Typical applications for this product span a broad machine and equipment range, including smaller test stands, mixers, conveyors, fans, pumps, compressors and basic production machinery.


For more information about the Sinamics G120C drive platform, please visit: www.usa.siemens.com/sinamics-g120c-pr


For specific product information and inquiries, call (800) 879-8079 ext. Marketing Communications or send an e-mail to: mc.us@siemens.com
