E-Z Lok Threaded Inserts and Kits for Metal

E-Z Lok, a leading manufacturer and master distributor of threaded inserts for metal, plastic and wood, now offers E-Z Lok ™ (Solid Wall) Threaded Inserts for metal; including both Assortment and Installation kits.

E-Z Lok ™ inserts are ideal for repairing or reinforcing threaded holes in soft metals such as: aluminum, magnesium and cast iron. External threads are standard size and pitch, so they can be installed with standard drills and taps. Solid wall threaded inserts are installed with a screwdriver, bolt/jam nut (except IC series) or optional power drive tool.

These inserts will not back out or vibrate loose. The pre-applied, microencapsulated adhesive begins to set immediately upon installation and the newly installed insert is fastener-ready in 3-5 minutes. Despite their firm hold while in use, E-Z Lok™ (Solid Wall) threaded inserts for metal can be removed with a bolt extractor, which overcomes the resistance to torque-out produced by the adhesive. They can also be removed by heating the insert to a temperature above 300°F (149°C), at which point the adhesive will release.

E-Z Lok ™ inserts are available in Thin Wall, Standard Wall, Extra Heavy Wall, Screw Locking and Automotive designs. They are available in Carbon Steel and Stainless Steel.  Stainless steel threaded inserts are perfect for applications requiring additional corrosion resistance, as well as food, beverage and other clean-critical applications.

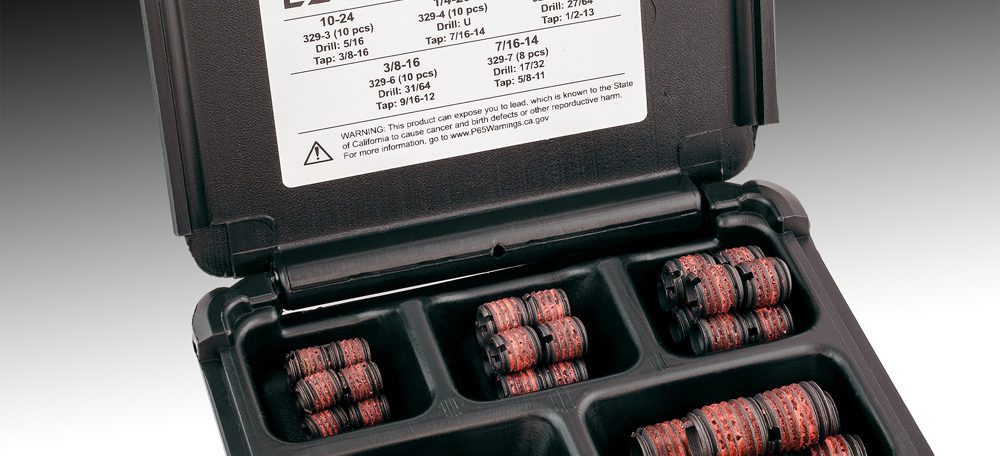

Assortment kits are equipped with inserts in a variety of sizes. They provide an easy-to-store solution for thread repair, giving maintenance teams added convenience. Installation kits are specifically designed to make threaded insert applications and repairs as simple as possible. These feature a drill, tap and installation tool.

CAD files on this product can be downloaded in over 100 file formats from the E-Z Lok website at https://www.ezlok.com/cad-downloads

For more information, please contact:

Kyle Lindsly-Roach, Director of Sales & Marketing
E-Z Lok
240 E. Rosecrans Ave
Gardena, CA 90248
Phone: 310-323-5613 x221

E-Z Lok is a leading manufacturer and master distributor of threaded inserts for metal, plastic and wood. Inserts for metal include solid wall and helical wire-thread inserts, while inserts for plastic feature press-in and ultrasonic/heat stake designs. Those for wood are die cast zinc alloy hex drives for soft wood and brass knife threads for hard wood. A variety of kits for the above inserts are available and feature installation tools, drill bits, etc.

E-Z Lok is a third-generation family owned and operated company. Founded in 1956, it primarily sells through local, regional, and national industrial distributors.
