500°F Truck Oven from Grieve

No. 913 is 500°F (260°C), truck oven from Grieve, currently used for curing rubber parts hanging from the oven’s ceiling at the customer’s facility. Workspace dimensions of this oven measure 48” wide x 52” deep x 96” high. 24 KW are installed in Nichrome wire tubular heating elements, while a 1000 CFM, 1-HP recirculating blower provides combination airflow.

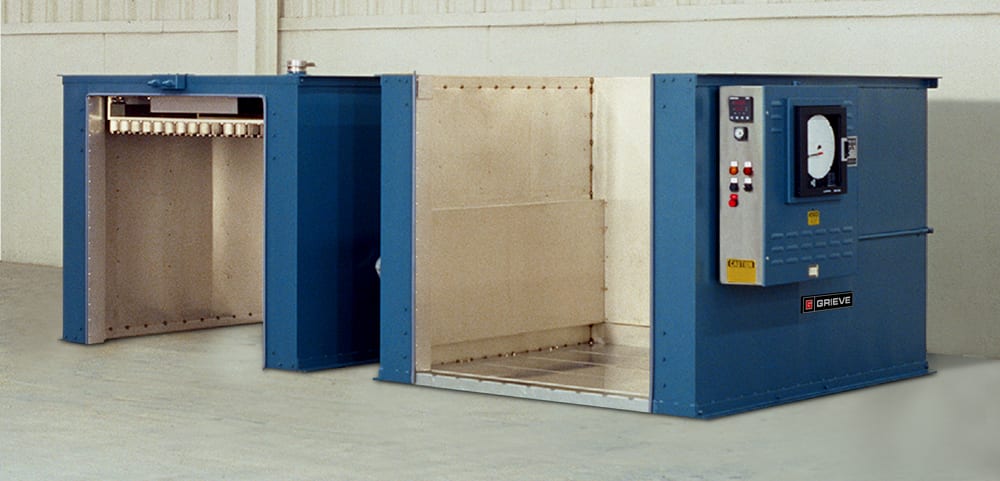

Grieve 913 truck ovenThis Grieve truck oven has 4” insulated walls and an aluminized steel interior and exterior. The ceiling of the workspace is reinforced for 200 lb. load at customer support rack. It is sectioned to fit in a 5’ wide x 8’ deep x 6’8” high elevator.

Controls on the No. 913 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower air flow safety switch and a 10” diameter circular chart recorder.

For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.

Continue reading

500°F Truck Oven

No. 899 is a 500°F (260°C), high temperature truck oven from Grieve, currently used for curing a coating on parts hanging from rods at the customer’s facility. Workspace dimensions of this oven measure 48” W x 36” D x 96” H.  24 kW are installed in Nichrome wire heating elements, while a 1000 CFM, 1-HP recirculating blower provides vertical upward airflow to the workload.

This Grieve truck oven is sectioned to fit in a 5’ W x 8’ D x 6’8” elevator. It has 4” insulated walls, aluminized steel exterior and Type 304 2B finish stainless steel interior.

Controls on the No. 899 include a 10” circular chart recorder,  manual reset excess temperature controller with separate contactors, digital indicating temperature controller and a recirculating blower airflow safety switch.

For more information, please contact:

THE GRIEVE CORPORATION

500 Hart Road
Round Lake, IL 60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

500°F Electric Truck Oven from Grieve

817 GrieveGrieve Corporation introduces No. 817, a 500°F electric truck oven. This Grieve unit is a modified version of the company’s standard TBH-500 truck oven. The customer’s process required the optional Type 304, 2B finish stainless steel interior. All portions of the oven, which come in contact with the heated air, are constructed from Type 304 stainless steel including supply and return ductwork, the entire heat chamber and the recirculating blower wheel.

Workspace dimensions inside this unit measure 48” wide x  48” deep x 60” high.  24kW installed power is provided by Nichrome wire heating elements, while a 2000 CFM, 2 HP recirculating blower provides horizontal airflow across the workload.

No. 815 features rugged Grieve construction, including 4” insulated walls, 2” insulated floor with truck wheel guide tracks, and an aluminized steel exterior and Type 304.

A digital indicating temperature controller, manual reset excess temperature controller with separate heating element control contactors and recirculating blower airflow safety switch are among the safety equipment built into this Grieve truck oven.

Double front doors feature a silicone rubber door gasket and explosion-venting latches.

This unit was entirely designed, engineered, built and full tested by Grieve.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

500ºF Electric Truck Oven

911 GrieveNo. 911 is an electrically-heated, 500°F truck oven, currently used for paint baking. Workspace dimensions measure 39”W x 36”D x 48” H, while 30KW installed in Nichrome wire tubular heating elements and a 2,000 CFM, 2-HP recirculating blower provide heated horizontal airflow to the workload.

This truck oven features an aluminized steel exterior, 4” thick insulated walls and Type 304, 2B finish stainless steel interior with continuously backwelded seam construction.  A 650 CFM powered forced exhauster, plus motorized dampers on the fresh air intake and exhaust for accelerated cooling, are also included.

Two pairs of oven truck wheel guide tracks are built on top of the 2” insulated oven floor of this Grieve unit.

A digital indicating temperature controller, strip chart recorder, SCR power controller and a 4-color tower light to indicate process status and over-temperature alarm are onboard No. 911.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP
