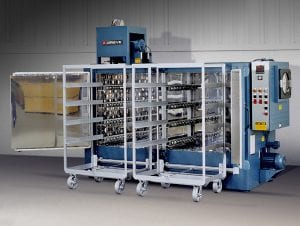

Grieve 879 Shelf Oven

350°F Modified Shelf Oven from Grieve

Grieve 879 Shelf OvenNo. 879 is a 350°F (177°C), modified shelf oven from Grieve, currently used for pre-heating bulk friction material in trays at the customer’s facility. Workspace dimensions of this oven measure 68” W x 30” D x 36” H. A 1000 CFM, 1-HP recirculating blower provides horizontal airflow to the workload.

This Grieve modified shelf oven has 4” insulated walls, an aluminized steel exterior and Type 430 stainless steel interior. Features include two (2) shelf trucks with supports on 9” centers to correspond to wheel supports in oven and two (2) tiers of wheel tray supports to aid in loading trays from oven to trucks. Additional features include 350,000 BTU/HR installed in a modulating natural gas burner.

This Grieve oven includes all safety equipment required by IRI, FM and National Fire Protection Association Standard 86 for gas-heated equipment, including a 325 CFM 1/3-HP powered forced exhauster.

Controls on the No. 879 include adjustable, thermocouple actuated, manual reset excess temperature interlock, electronic flame safeguard protection, exhauster airflow safety switch, recirculating blower airflow safety switch and purge timer.


For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese

Continue reading

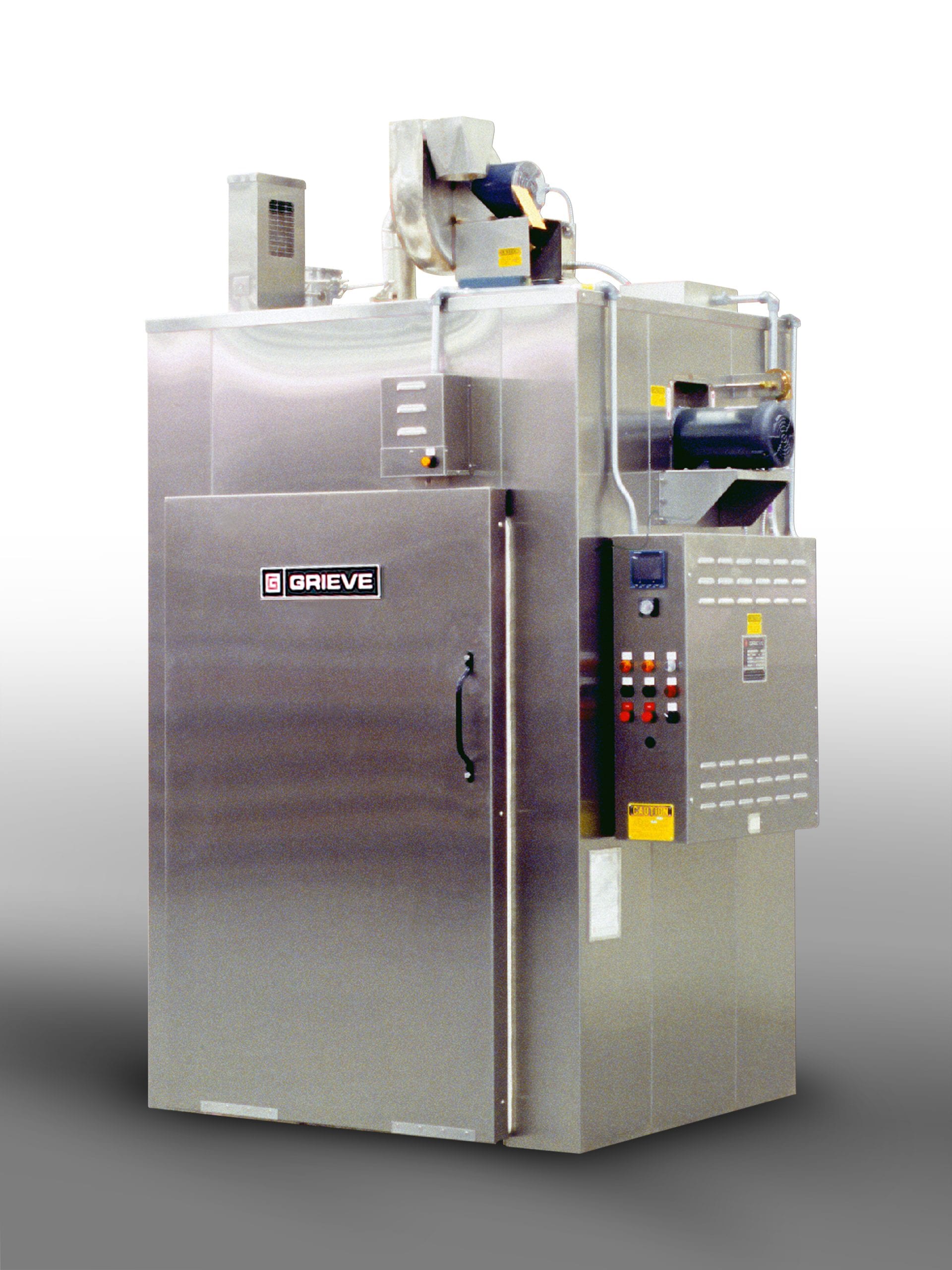

600°F Truck Oven from Grieve

936

No. 936 is a 600°F (316°C) truck oven from Grieve, currently used for hi-temp processing of parts at the customer’s facility. Workspace dimensions of this oven measure 36” W x 36” D x 60” H. 24 KW are installed in Nichrome wire heating elements, while a 1500 CFM, 1-1/2 HP recirculating blower provides horizontal airflow to the workload.

This Grieve truck oven has 5” insulated walls, top-mounted heat chamber and Type 304 2B finish stainless steel interior. Features also include a stainless steel exterior with #4 brushed finish, solenoid operated door lock and safety equipment for handling flammable solvents, including explosion venting door hardware. The oven includes a 325 CFM powered forced exhauster plus motorized dampers on intake and exhaust for accelerated cooling.

Controls on No. 936 include a digital programming temperature controller and SCR power controller.

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

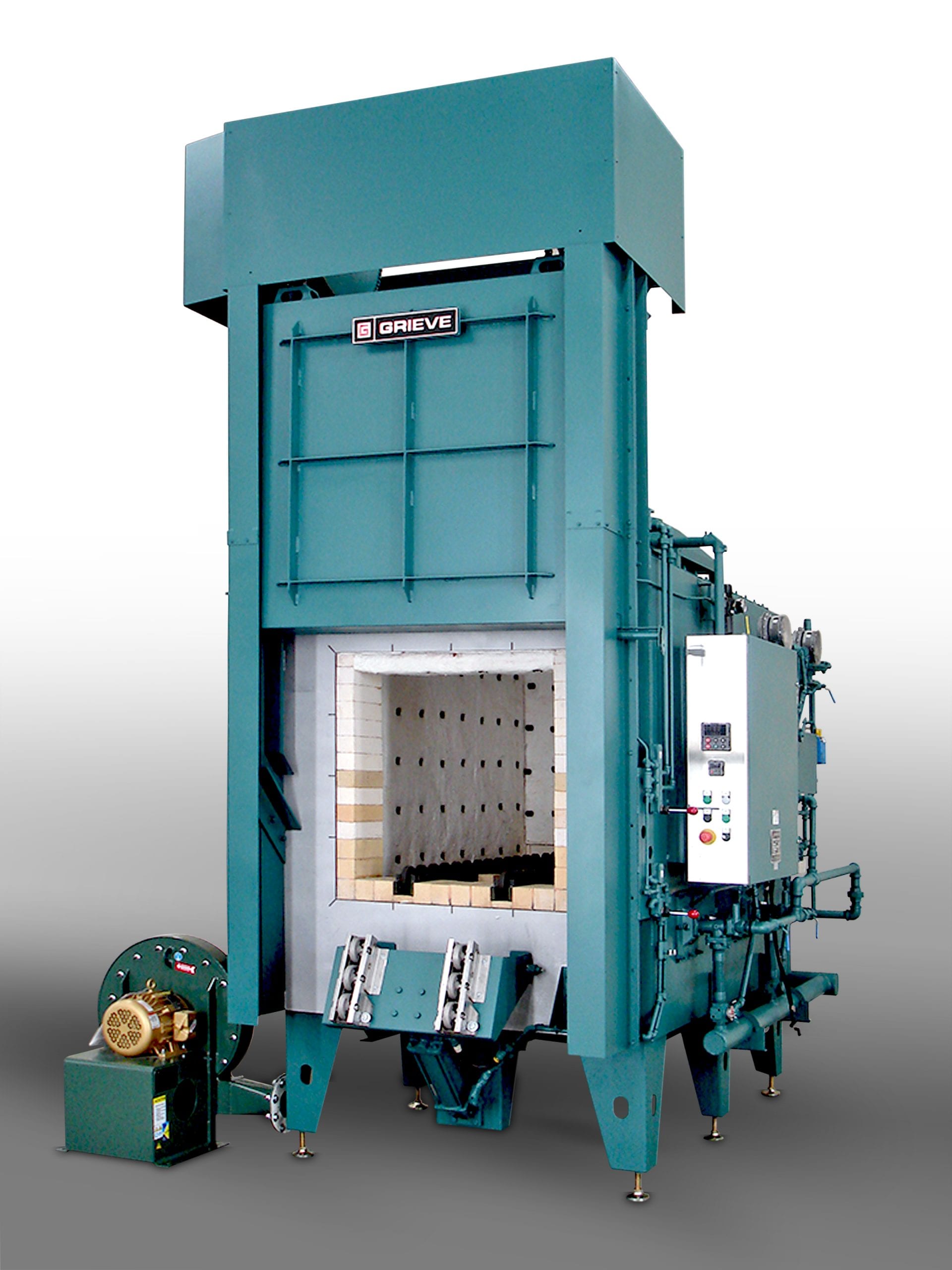

2000°F Gas-Fired, Heavy-Duty Furnace

No. 1042 is a 2000°F (1093°C), gas-fired heavy-duty furnace from Grieve, currently used for heat treating at the customer’s facility. Workspace dimensions of this furnace measure 30″ W x 60″ D x 30″ H.  750,000 BTU/HR are installed in four modulating natural gas burners with a floor mounted combustion air blower. Burners fire below hearth, with 9″ thick insulated walls comprising 5″ thick 2300°F ceramic fiber, 4″ 1900°F block insulation and 8 1/2″ floor insulation made from 4-1/2″ of 2300°F firebrick and 4” of 1900°F block insulation.

This Grieve furnace has two lanes of roller rails supported by firebrick piers and an air-operated platform with roller rails to bridge from loading table to workspace. Features include a 1/4” plate steel exterior reinforced with structural steel, 1/2″ steel faceplate at doorway and an air-operated vertical lift door.

Other features include safety equipment required by IRI, FM and National Fire Protection Association Standard 86 for gas-heated equipment plus a free-standing 390 CFM high-pressure combustion blower.

Controls on the No. 1042 include a digital indicating temperature controller and manual reset excess temperature controller with separate contactors.

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

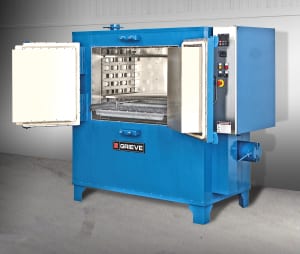

550°F Cabinet Oven from Grieve

Grieve_1035No. 1035 is a 550°F (288°C), cabinet oven from Grieve, currently used for heating heavy steel housing at the customer’s facility. Workspace dimensions of this oven measure 38” W x 20” D x 26” H. 8 KW are installed in lncoloy sheathed tubular heating elements, while a 600 CFM, ½ HP recirculating blower provides universal front to rear airflow.

This Grieve cabinet oven has 6” insulated walls and an aluminized steel exterior. Features include a Type 304 stainless steel, 2B finish interior and one 38” wide x 20” long roller shelf at bottom of workspace rated for 200 lbs. loading.

Controls on the No. 1035 include a digital indicating temperature controller, a manual reset excess temperature controller with separate contactors, plus a recirculating blower airflow safety switch.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese

Continue reading

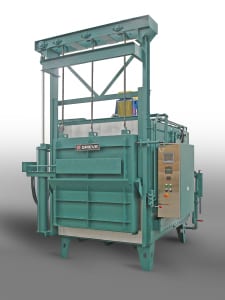

2000°F Inert Atmosphere Heavy-Duty Furnace from Grieve



Grieve 1039 Inert Atmosphere FurnaceNo. 1039 is a 2000°F (1093°C), inert atmosphere, heavy-duty furnace from Grieve, currently used for heat treating turbine components at the customer’s facility. Workspace dimensions of this furnace measure 36” W x 60” D x 36” H. 73 KW are installed in ICA wire coils supported by vacuum formed ceramic fiber installed on all interior surfaces, including door and beneath the hearth.

This Grieve inert atmosphere furnace has a roof-mounted, heat-resisting alloy circulating fan powered by a 1-HP motor with V-belt drive, water cooled bearings and inert atmosphere shaft seal.  Furnace features include 9” thick insulated walls comprised of 5” of 2300°F ceramic fiber and 4” of 1900°F block insulation; 8 ½” floor insulation comprised of 4 ½” of 2300°F firebrick and 4” of 1900°F block insulation. Other features include ¼” plate exterior reinforced with structural steel, ½” steel face plate at doorway with air-operated vertical lift door. Inert atmosphere construction includes continuously welded outer shell, high-temperature door gasket, sealed heater terminal boxes, inert atmosphere inlet, inert atmosphere outlet, inert atmosphere flow meter and manual gas valve.

Controls on No. 1039 include a digital programming temperature controller, a manual reset excess temperature controller with separate contactors, paperless event recorder and SCR power controller.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

500° Walk-In Oven From Grieve

No. 958 is a 500° (260°C), electrically heated walk-in oven from Grieve, currently used for heat treating long fluorocarbon shapes supported by fixtures on wheels at the customer’s facility. Workspace dimensions of this oven measure 36” W x 300” D x 36” H. 60KW are installed in lncoloy sheathed tubular heating elements, while a 4200 CFM, 3-HP recirculating blower provides combination airflow to the workload.

This Grieve walk-in oven has 4” insulated walls and an aluminized steel interior and exterior. Features include an integral top mounted heat chamber, single door front and rear, 2” insulated floor with channel guide tracks and two (2) fixture supports with flanged wheels.

Controls on No. 958 include a digital programming and recording temperature controller, manual reset excess temperature controller with separate contactors plus recirculating blower airflow safety switch and SCR power controller.

Grieve 958

For more information, please contact:

THE GRIEVE CORPORATION

500 Hart Road
Round Lake, IL 60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

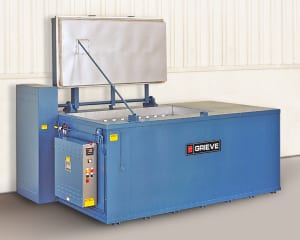

650°F Top-Loading Oven from Grieve

No. 812 is a 650°F (343°C), high temperature top-loading oven from Grieve, currently used for heating stainless steel prior to welding at the customer’s facility. Workspace dimensions of this oven measure 72” W x 36” D x 36” H.  40 kW installed in Incoloy-sheathed tubular elements heat the workspace, while  a 3300 CFM, 2 HP recirculating blower provides horizontal airflow to the workload.

This Grieve top-loading oven features 5” insulated walls, aluminized steel interior and exterior, plus a reinforced ¼” steel plate top. Features also include an air-operated rear hinged door and wear bars at the sides of the workspace. The floor of the workspace is reinforced for 3000 lb. loading at removable subway grate.

Controls on No. 812 include a digital indicating temperature controller, manual reset excess temperature controller with separate heating element control contactors and recirculating blower airflow safety switch.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese

Continue reading

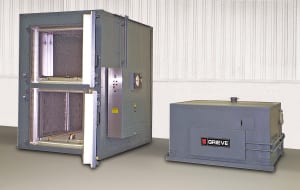

900° Walk-In Oven from Grieve

Grieve846No. 846 is a 900°F (482°C), high temperature walk-in oven from Grieve, currently used for pre-heating steel molds at the customer’s facility. Workspace dimensions of this oven measure 50” W x 96” D x 96” H. A 7800 CFM, 5-HP recirculating blower provides combination airflow to the workload.

This Grieve walk-in-oven features 8” thick insulated walls, 6” insulated floor, aluminized steel interior and exterior, plus a removable top-mounted heat chamber.  Type 304, 2B finish stainless steel heat chamber interior consists of two independent doors, front and rear, for access to workspace, each opening 40” high. Features include inner and outer door gaskets, with an inner gasket that seals directly against door plug; outer gasket seals directly against the front face of the oven. The floor of each opening is reinforced for 5,000 lb loading at removable subway grate.

Controls on No. 846 include a digital programming and recording temperature control and a manual reset excess temperature controller with separate contactors, plus a recirculating blower air flow safety switch.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

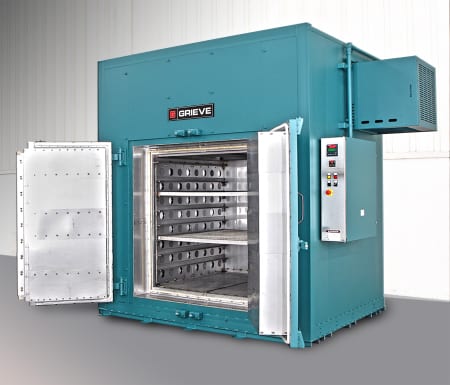

1050ºF Cabinet Oven From Grieve

1050ºF Cabinet Oven From Grieve

No. 1036 is a 1050ºF (566ºC), electrically-heated cabinet oven from Grieve, currently used for production heating of glass assemblies at the customer’s facility. Workspace dimensions of this oven measure 50” W x 50” D x 50” H. 80 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 3750 CFM, 3-HP recirculating blower provides horizontal airflow to the workload.

This Grieve cabinet oven features 10” thick insulated walls, top-mounted heating chamber, aluminized steel exterior and Type 304 stainless steel, 2B finish interior.

Controls on No. 1036 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and recirculating blower airflow safety switch.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

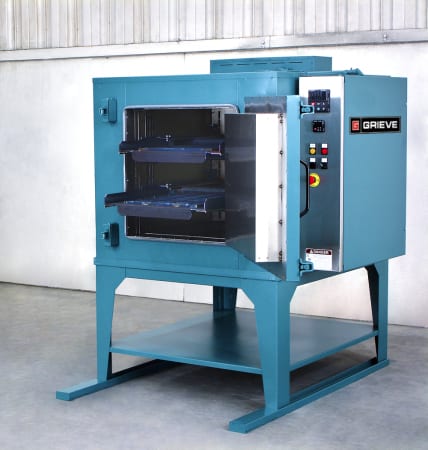

550°F Universal Oven for Heating Heavy Metal Dies

grieve1034rtNo. 1034 is a 550ºF (287ºC), electrically-heated universal style oven from Grieve, currently used for heating heavy metal dies at the customer’s facility.  Workspace dimensions of this oven measure 24” W x 24” D x 24” H.  7 kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 400 CFM, 1/3-HP recirculating blower provides universal front to rear airflow to the workload.

This Grieve universal oven features 6” insulated walls, aluminized steel exterior, Type 304 stainless steel interior with 2B finish plus two 24” wide x 24” long shelves supported by rollers and each rated at 300 lb. load capacity.  An integral oven leg stand is also provided.

No. 1034 controls include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and recirculating airflow safety switch.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP
