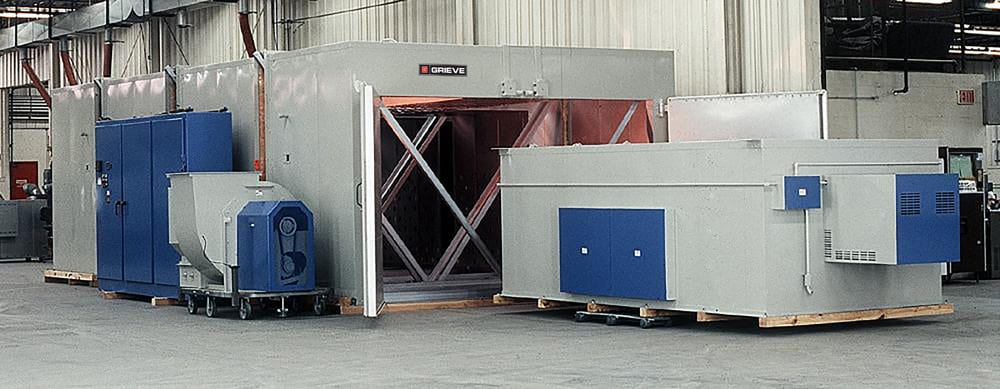

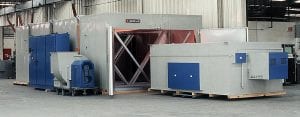

Grieve 976 Jumbo Electric Walk In Oven

Jumbo Electric Walk-In Oven From Grieve

Grieve 976 Jumbo Electric Walk In OvenNo. 976 is a 500ºF (~260ºC) electrically-heated jumbo walk-in oven from Grieve, currently used for heating molds at the customer’s facility.  Workspace of this unit measures 13’W x 28’D x 7’6”H.  360KW are installed in Incoloy sheathed tubular elements to heat the oven, while 49,000CFM from two 20HP recirculating blowers provide a combination airflow to the workload.

This Grieve jumbo walk-in oven features 4” thick insulated walls, removable top-mounted heat chamber (shown in the right foreground of the attached photo), aluminized steel interior and exterior, door seals eliminated and doors equipped with drag seals, plus the unit was constructed to split into four sections for shipment to the customer’s location.

Oven controls on No. 976 include a 13,500CFM powered forced exhauster (shown in the left foreground of the attached photo) and other safety equipment required to handle up to two gallons of flammable solvent at 370ºF (~188ºC).  Also onboard are a digital programming temperature controller, SCR power controller and motorized dampers on the intake and exhaust for accelerated cooling and rapid purging.  This Grieve jumbo walk-in was built to NEMA 12/NFPA 79 electrical standards.


For more information, please contact:

THE GRIEVE CORPORATION

500 Hart Road
Round Lake, IL 60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading
Grieve 942

Special Walk-In Oven from Grieve

No. 942 is a 350°F (177°C), special walk-in oven from Grieve, currently used for curing epoxy at the customer’s facility. Workspace dimensions of this oven measure 84” W x 144” D x 108” H. 400,000 BTU/hour are installed in a modulating natural gas burner, while a 12,000 CFM total are provided by two (2) 5-HP recirculating blowers providing combination airflow to the workload.

This Grieve oven features 4” insulated walls, aluminized steel interior and exterior and three (3) independent doors for access to workspace on front with standard double doors on rear. Additional features include 2” insulated floor with three (3) pairs of truck wheel guide tracks. The oven is raised above factory floor level on 6” I-beams.

The oven features all safety equipment required by IRI, FM and National Fire Protection Association Standard 86 for gas heated equipment, including a 325 CFM, 1/3-HP powered forced exhauster.

Controls on the No. 942 include a digital programming temperature controller and 10” diameter circular chart recorder.

Grieve 942

For more information, please contact:

THE GRIEVE CORPORATION

500 Hart Road
Round Lake, IL 60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading
Grieve Cabinet Oven

1050°F Cabinet Oven from Grieve

Grieve Cabinet OvenNo. 1049 is a 1050°F (566°C), cabinet oven with two drawers from Grieve, currently used for annealing or normalizing processes at the customer’s facility. Workspace dimensions of this oven measure 39” W x 102” D x 51” H, with two drawers rated 250 lbs. loading with 36” wide x 78” deep x 15” high loading area. 800,000 BTU/hour installed in a modulating natural gas burner, while a 10,000 CFM, 7-1/2 HP recirculating blower provides horizontal airflow to the workload.

This Grieve oven features 10” thick insulated walls comprised of 2” 2000°F ceramic blanket and 8” of 10 lb/cf density rockwool. Features include a top mounted heat chamber, aluminized steel exterior and Type 304, 2B finish stainless steel interior. Additional features include a rear door for access to workspace and heat chamber, exhaust hood over drawers and motorized dampers on intake and exhaust for accelerated cooling.

The oven includes all safety equipment required by IRI, FM and National Fire Protection Association Standard 86 for gas-heated equipment, including 1800 CFM stainless steel powered forced exhauster. It also meets AMS2750, Class 2 (±10F), Type C (survey thermocouple at hottest and coldest location).

Controls on the No. 1049 include a digital indicating temperature controller, two digital shutdown timers, one for burner and one for oven and a circuit breaker disconnect switch.


For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese

Continue reading

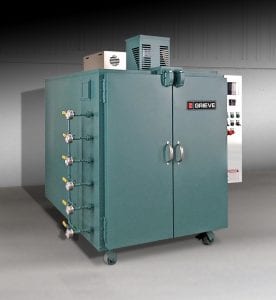

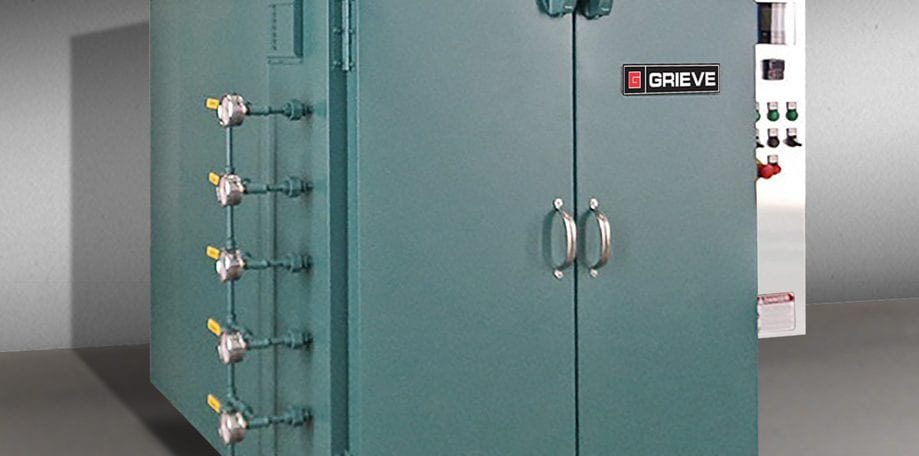

Grieve Bench Oven 1050

400°F Large Capacity Bench Oven from Grieve

Grieve Bench Oven 1050No. 1050 is a 400°F (204°C), large capacity bench oven from Grieve, currently used for vacuum bagging at the customer’s facility. Workspace dimensions of this oven measure 36” W x 48” D x 36” H. 6.6 kW are installed in Incoloy sheathed tubular heating elements, while a 400 CFM, 1/3-HP recirculating blower provides airflow to the workload.

This Grieve oven features 2” insulated walls, six (6) point vacuum manifold with individual shut-off valves, vacuum gauge and quick disconnect. Additional features include an aluminized steel exterior, Type 304, 2B finish stainless steel interior and an 80 CFM powered forced exhauster.

Controls on the No. 1050 include a digital programming temperature controller, manual reset excess temperature interlock with separate contactors and a recirculating blower airflow safety switch.


For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese

Continue reading

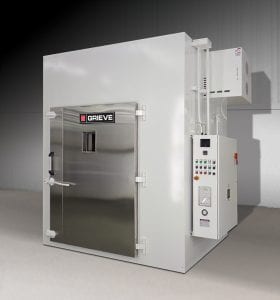

Grieve Clean Room Oven #1048

350°F Clean Room Oven from Grieve

Grieve Clean Room Oven #1048No. 1048 is a 350°F (177°C), clean room oven from Grieve, currently used for final cure of hardcoated optical lenses at the customer’s facility. Workspace dimensions of this oven measure 54” W x 63” D x 72” H. 60 KW are installed in Incoloy sheathed tubular heating elements, while a 6000 CFM, 5-HP recirculating blower provides horizontal airflow to the workload.

The Grieve clean room oven features 6” insulated walls, Type 304, 2B finish stainless steel interior with continuously backwelded seams and an aluminized steel exterior which is finished with white epoxy paint and a #4 brushed finish stainless steel door cover. The oven is humidity controlled, including dew point sensor and steam humidifier.

Additional features include a motorized damper on exhaust for accelerated cooling, 24” x 24” x 6” thick HEPA fresh air filter with 2” prefilter, four (4) 30” x 24” x 12” thick stainless steel high temperature HEPA recirculating filters and minihelic pressure gauge across recirculation filters, as well as an 8” x 10” double pane window, interior oven light and a circuit breaker disconnect switch. The oven includes all safety equipment for handling flammable solvents (including explosion venting door hardware and 325 CFM powered forced exhauster) and NFPA 79 electrical construction (including NEMA 12 control panel and rigid conduit.)

Controls on the No. 1048 include a digital programming temperature controller to control temperature and humidity, manual reset excess temperature interlock with separate contactors and an SCR power controller.


For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese

Continue reading

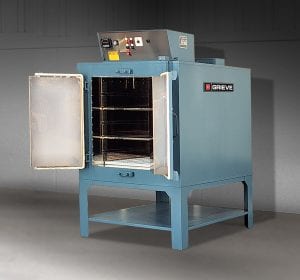

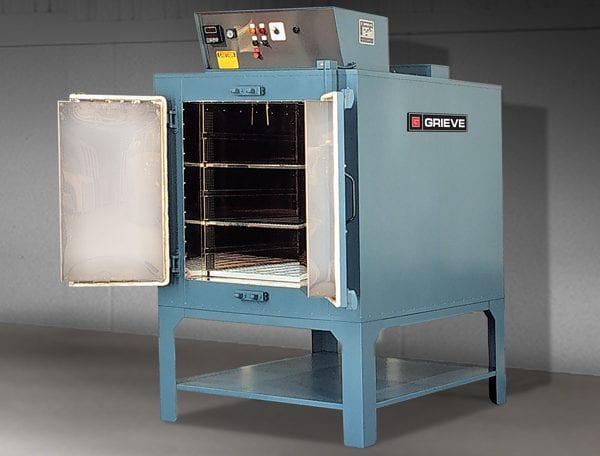

Grieve Universal Oven

650°F Universal Oven from Grieve

Grieve Universal OvenNo. 841 is a 650°F (343°C), universal oven from Grieve, currently used for a variety of heat treatments at the customer’s facility. Workspace dimensions of this oven measure 36” W x 36” D x 36” H. 9 KW are installed in Incoloy sheathed tubular heating elements, while a 600 CFM, 1/2 HP recirculating blower provides universal airflow to the workload.

This Grieve universal oven features 6” insulated walls, aluminized steel exterior and Type 430 stainless steel interior with double doors. Additional features include a workspace floor reinforced for 500 lbs loading at removable subway grate and an integral leg stand.

Controls on the No. 841 include a digital programming temperature controller, manual reset excess temperature controller with separate contactors and a recirculating blower airflow safety switch.


For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese

Continue reading
Grieve Bench Oven No. 1047

350°F Bench Oven with Eight (8) Drawers from Grieve

Grieve Bench Oven No. 1047No. 1047 is a 350°F (177°C), bench oven from Grieve, currently used for curing plugs on the ends of cords at the customer’s facility. This bench oven has eight (8) drawers with dimensions of 6” W x 13” D x 6” H with removable insert to close around cord. 2 KW are installed in Incoloy sheathed tubular heating elements, while a 300 CFM, 1/3-HP recirculating blower provides horizontal airflow to the workload.

This Grieve bench oven features 2” insulated walls, Type 304, 2B finish stainless steel interior and stainless steel exterior with #4 brushed finish. Features include eight (8) digital batch timers with common alarm; one timer positioned above each drawer to individually time process in each drawer. Additional features include an integral leg stand.

Controls on the No. 1047 include a digital indicating temperature controller, manual reset excess temperature interlock with separate contactors and recirculating blower airflow safety switch. Additional controls include a circuit breaker disconnect switch and SCR power controller.


For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese

Continue reading

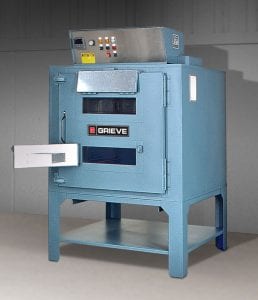

Grieve 824 Modified Universal Oven from Grieve

500°F Modified Universal Oven from Grieve

Grieve 824 Modified Universal Oven from GrieveNo. 824 is a 500°F (260°C), modified universal oven from Grieve, currently used for housing a vertical conveyor system at the customer’s facility. 9 KW installed in Nichrome wire heating elements, while a 600 CFM, 1/2 HP recirculating blower provides universal airflow to the workload.

This Grieve modified universal oven features 4” insulated walls, aluminum steel exterior, Type 430 stainless steel interior and two (2) 20” wide x 5-1/2” high conveyor access doors installed in oven door. Additional features include safety equipment for handling flammable solvents, including explosion venting door hardware. The oven also features an integral leg stand.

Controls on the No. 824 include a digital indicating temperature controller, manual reset excess temperature controller with separate contactors and recirculating blower airflow safety switch.


For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese

Continue reading

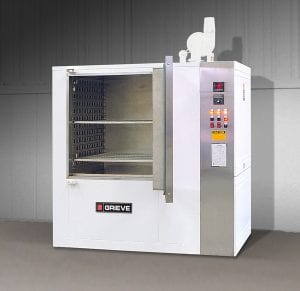

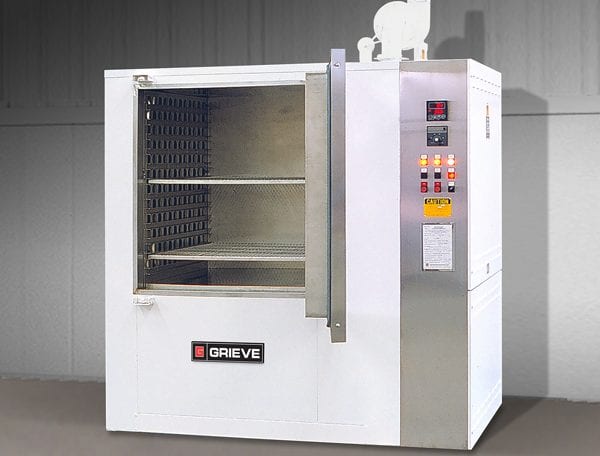

Grieve 797 Clean Room Cabinet

260°F Clean Room Cabinet Oven from Grieve

Grieve 797 Clean Room CabinetNo. 797 is a 260°F (127°C), clean room cabinet oven from Grieve, currently used for drying coating on printed circuit boards at the customer’s facility. Workspace dimensions of this oven measure 36” W x 36” D x 39” H. 20 KW installed in Incoloy sheathed tubular heating elements, while a 1000 CFM, 1-1/2 HP recirculating blower provides horizontal airflow to the workload.

This Grieve clean room cabinet oven features 4” insulated walls, Type 304, 2B finish stainless steel interior with continuously backwelded seams and exterior finished with white epoxy paint. Oven features include #4 brushed stainless steel door cover and control panel face. Additional features include safety equipment for handling flammable solvent including explosion venting door hardware and 30” x 24” x 6” thick stainless steel high temperature HEPA recirculating filter.

Controls on the No. 797 include a digital indicating, programming temperature controller and SCR power controller.


For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese

Continue reading
Grieve 879 Shelf Oven

350°F Modified Shelf Oven from Grieve

Grieve 879 Shelf OvenNo. 879 is a 350°F (177°C), modified shelf oven from Grieve, currently used for pre-heating bulk friction material in trays at the customer’s facility. Workspace dimensions of this oven measure 68” W x 30” D x 36” H. A 1000 CFM, 1-HP recirculating blower provides horizontal airflow to the workload.

This Grieve modified shelf oven has 4” insulated walls, an aluminized steel exterior and Type 430 stainless steel interior. Features include two (2) shelf trucks with supports on 9” centers to correspond to wheel supports in oven and two (2) tiers of wheel tray supports to aid in loading trays from oven to trucks. Additional features include 350,000 BTU/HR installed in a modulating natural gas burner.

This Grieve oven includes all safety equipment required by IRI, FM and National Fire Protection Association Standard 86 for gas-heated equipment, including a 325 CFM 1/3-HP powered forced exhauster.

Controls on the No. 879 include adjustable, thermocouple actuated, manual reset excess temperature interlock, electronic flame safeguard protection, exhauster airflow safety switch, recirculating blower airflow safety switch and purge timer.


For more information, please contact:
THE GRIEVE CORPORATION
500 Hart Road
Round Lake, Illinois 60073-2835
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese
