Two-zone 500ºF Electric Cabinet Oven from Grieve

No. 840 is a 500oF electrically-heated, two-zone vertical airflow cabinet oven from Grieve, currently used to dry coatings on fishing line at a customer’s facility.

840 GrieveWorkspace dimensions of the top heating chamber measure 36” wide x 12” deep x 36” high, while the lower chamber is 36” wide x 12” deep x 60” high.  30KW installed in Incoloy-sheathed tubular heating elements (15KW per chamber) provide the heat, while two 1000 CFM, 1-HP recirculating blowers provide vertical airflow in each heating zone

This Grieve oven has aluminized steel interior and exterior, plus 4” insulated walls throughout.  Eight ¾” diameter ports through the roof and floor of each heating zone allow the workload to pass through.

Safety and control equipment on No. 840 include digital indicating temperature controllers, manual reset excess temperature controllers with separate contactors and recirculating blower airflow safety switches for each heating zone..

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

350ºF Electric Cabinet Oven

1013 GrieveNo. 1013 is an electrically-heated, 350ºF (~177ºC) cabinet oven from Grieve, currently used for curing rubber parts at the customer’s facility.  Eight workspace openings with roller supported shelves each measure 36” W x 6-1/4” H x 24” D.  45 KW are installed in Incoloy-sheathed tubular heating elements, while a 7800 CFM, 5-HP recirculating blower provides horizontal airflow to the common central duct of the oven to heat the load.

This Grieve cabinet oven features 4” thick insulated walls, aluminized steel interior and exterior, top mounted heat chamber with access doors and 200 lb. capacity shelves that extend 24” in front of the oven for easier loading.

No. 1013 is also equipped with a digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch and all required safety equipment for handling flammable solvents, including explosion venting door hardware.  A programmable timer, interlocked to each door via a proximity switch, plus green lights for each door to indicate when curing time is completed are also onboard this oven.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

1250ºF Electric High-temperature Cabinet Oven

995 GrieveNo. 995 is an electrically-heated, 1250ºF (~670ºC) high-temperature cabinet oven from Grieve, currently used for preheating steel forgings at the customer’s facility.  Workspace dimensions in this oven measure 20” W x 40” D x 20” H.  60 KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 2000 CFM, 2HP recirculating blower provides horizontal airflow to the workload.

Specially designed to handle high-temperature operation, this Grieve cabinet oven features 10” thick insulated walls, comprising 2” of 1900ºF block and 8” of 10 lb./cf density rockwool, plus Type 304, 2B stainless steel interior, motor-operated vertical lift door and alloy roller rails at the workspace floor level, rated for 1500 lb. loading.

No. 995 is built to NEMA 12 electrical standards and is equipped with SCR power control.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

Continue reading

500ºF Electric Cabinet Oven from Grieve

Grieve Corporation introduces Model VA-500, a standard 500ºF electric cabinet oven, which features full vertical-up air flow.  This unit is specifically designed for workloads where heated air must pass upward through the load – such as open-ended cylinders or hanging parts.

828 GrieveWorkspace dimensions inside this unit measure 26” wide x 26” deep x  38” high.  6.6 kW power is installed in Nichrome wire heating elements, while a 700 CFM, 1/2 HP recirculating blower provides vertical upward airflow to the workload.

No. 828 has 4” thick insulated walls, an aluminized exterior, Type 430 stainless steel interior, 12 shelf supports on 3” centers, two (2) standard nickel plated wire shelves with 200 lb. capacity each and a heavy-duty door with explosion-venting latches and a high-temperature door gasket with stainless steel spring insert.

Standard equipment on this Grieve cabinet oven include a digital indicating temperature controller, manual reset excess temperature controller with separate heating element control contactors and recirculating blower airflow safety switch. This unit also meets the requirements of National Fire Protection Association Standard 86, Industrial Risk Insurers, Factory Mutual and OSHA Standards, as do all standard Grieve cabinet ovens.

This unit was completely designed, engineered, built and fully tested by Grieve.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

350ºF Electric Cabinet Oven

1005 GrieveNo. 1005 is an electrically-heated 350ºF (~177ºC) cabinet oven from Grieve, currently used for curing long composite parts held in fixtures at the customer’s facility.  Workspace dimensions of this oven measure 108”W x 18”D x 18”H.  15KW are installed in Incoloy-sheathed tubular elements to heat the unit, while a 1000 CFM, 1-HP recirculating blower provides horizontal airflow across the load.

This Grieve cabinet oven features 4” insulated walls throughout, aluminized steel exterior, Type 304 2B stainless steel interior, motor-operated vertical lift door, 8” x 10” double pane Pyrex window for viewing the load, interior oven light and tower light to indicate oven status.

All safety equipment required for handling flammable solvents is onboard No. 1005, including motorized dampers on the intake and exhaust for accelerated cooling.  A 29” x 25” x 4” thick pleated fresh air filter and photohelic pressure gauge with alarm to monitor internal oven pressure are also included.

This Grieve cabinet oven also features a digital programming temperature controller with tamper-proof cover, strip chart recorder and fused disconnect switch.   No. 1005 is built to NEMA 12 electrical standards.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

Horizontal Airflow Cabinet Oven

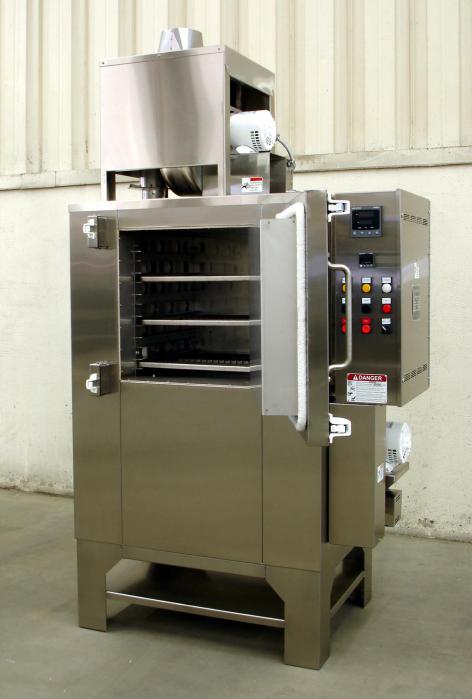

1002 Grieve OvenNo. 1002 is an electrically-heated, 500ºF (~260ºC) cabinet oven from Grieve, currently used for various test procedures in the customer’s laboratory. 8KW are installed in Incoloy sheathed tubular elements to heat the unit, while a 400CFM, 1/3-HP recirculating blower provides horizontal airflow across the load.

This Grieve oven features 4” insulated walls throughout, Type 304, 2B stainless steel interior with continuously backwelded seam construction, stainless steel exterior with #4 brushed finish, heavy-duty door and door frame, three nickel-plated wire shelves and adjustable patented opposed louvers on full coverage supply and return ductwork.

No. 1002 is equipped with all safety equipment for handling flammable solvents, including explosion-venting door hardware, powered forced exhauster airflow safety switch, purge timer and digital indicating temperature controller.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL 60073-2898
Phone: (847) 546-8225
Fax: (847) 546-9210
Web: www.grievecorp.com
Email: sales@grievecorp.com
Attention: Frank Calabrese, VP

Continue reading

850°F Cabinet Oven from Grieve

800 GrieveNo. 800 is an electrically-heated, 850ºF (~454ºC) cabinet oven from Grieve, currently used for drying specialty pharmaceutical powders at the customer’s facility. Workspace of this unit measures 38” W x 26” D x 38” H. 20 KW are installed in Incoloy-sheathed  tubular heating elements, while an 800 CFM, 3/4-HP recirculating blower provides horizontal airflow to the workload.

This walk-in oven features 6” insulated walls, Type 304, 2B finish stainless steel interior with continuously welded seams, disposable fresh air filter, stainless steel loading truck and a transfer dolly, including an oven-to-dolly latch and dolly-to-truck latch.

In addition, No. 800 has all safety equipment onboard to handle flammable solvents, including a minihelic pressure gauge to indicate internal oven pressure.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

Load-rotating 500°F Cabinet Oven from Grieve

801 GrieveNo. 801 is an electrically-heated cabinet oven from Grieve, currently used for rotating baskets of aluminum and stainless steel airbag component parts, while drying them.  This unit has a maximum operating temperature of 500°F and workspace dimensions of 48″ W x 48″ D x 48″ H.

A 40 KW heat input is installed in Incoloy sheathed tubular heating elements, while a 3,300 CFM, 2 HP recirculating blower provides a combination horizontal/vertical airflow to the workload.

Grieve engineers designed and built the internal rotating framework with two stainless steel roller assemblies, each with a clamp to hold the parts baskets in place.  A variable speed 2 HP drive, 0-5 RPM, with brake motor and limit switch, stop the baskets in the upright position.

No. 801 features also include a Type 304, 2B finish stainless steel interior, 4” insulated walls, a digital indicating temperature controller and manual reset excess temperature controller.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

500°F Electric Class 100 Cleanroom Cabinet Oven

962 GrieveNo. 962 is a 500°F (257oC) electrically-heated, Class 100 cleanroom cabinet oven from Grieve, currently used for pass-through depyrogenation of glassware.  Workspace dimensions measure 24”W x 36”D x27”H.  10KW installed in Incoloy-sheathed tubular elements provide heat, while a 600 CFM, 3/4-HP recirculating blower delivers horizontal airflow to the workload.

This cleanroom oven features 4” insulated walls, a Type 304, 2B finish stainless steel exterior with 1/2” inside radiused corners and all interior seams are welded, ground and polished.  The stainless steel exterior with #4 brushed finish has continuously welded seams.  The unit has single access doors, front and rear.

No. 962 from Grieve includes a red pilot light to indicate when the oven’s opposite side door is open, solenoid-operated door locks and 650 CFM intake pressurizing blower.  Also onboard are a 24” x 24” x 6” thick HEPA fresh air filter with 2” prefilter, a 24” x 24” x 6” thick stainless steel, high temperature HEPA recirculating filter, plus a minihelic pressure gauge and DOP validation port across each set of filters.

A digital programming and recording temperature controller activates the dampers and locks the access doors during a cycle.  A recirculating blower airflow safety switch turns off the blower and heat whenever a door is opened.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading

500ºF (257ºC) Class 100 Electric Cabinet Oven

971 GrieveNo. 971 is an electrically-heated, 500ºF (257ºC) Class 100 cleanroom cabinet oven from Grieve, currently used to sterilize glassware at the customer’s facility.  Workspace dimensions measure 36” W x 36” D x 39” H.  20KW are installed in Incoloy sheathed tubular elements to heat the unit, while a 1200 CFM, 1-1/2 HP recirculating blower motor provides horizontal airflow to the workload.

This Grieve cleanroom oven features 4” thick insulated walls throughout and a Type 304, 2B finish stainless steel interior with 1/2” inside radius corners, all seams welded, ground and polished.  The stainless steel exterior has a #4 brushed finish.  The unit is equipped with front and rear access doors for pass-through to the cleanroom plus an integral wall sealing flange.  A red pilot light onboard the oven signals when the opposite door is open.  All door hardware is chrome plated.

For Class 100 cleanroom compliance, this cabinet oven has a 12” x 12” x 6” thick HEPA fresh air filter with 2” prefilter and a 30” x 24” x 6” thick stainless steel high temperature HEPA recirculating filter.

Controls on No. 971 include a minihelic pressure gauge and DOP validation port across each set of filters, digital programming temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower airflow safety switch, 10” diameter circular chart temperature recorder, fused disconnect switch and an SCR power controller.

A stainless steel loading truck with six removable pans and a transfer dolly with oven-to-dolly and dolly-to-truck latches are also furnished with this Grieve oven.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP

Continue reading
