Rattunde Tube Making Machinery at IMTS 2012

A walking tour of Rattunde’s unique tubemaking machinery, provided by company president for North America, Rick Stadler.

Click here to view the video.

Check out all the machining functions it can perform! Rattunde delivers ready to install products to the assembly line for its customers.

For more information, please contact:

Alec Banish
Vice-President / Business Development
Rattunde Corporation
4980 Kendrick St. SE
Grand Rapids, MI 49512
(616) 940-3340 x202
www.rattunde-corp.com

OR

Richard Stadler
President
Rattunde Corporation
(616) 940-3340

Continue reading

IMTS Pre-show News…Rattunde Booth N-6737

Integrated Sawing and Machining Center Sets New Industry Standard

Rattunde Corporation introduces the ACS + CFMcurve integrated sawing and machining center, an exciting new technology, at the IMTS show, McCormick Place in Chicago, from September 10-15, in the North Hall Booth #6737.   A fully operational system will be producing a variety of parts, demonstrating the fully automated flexibility of this manufacturing center.

The ACS Sawing Machine is the new industry standard for cold saws.  It utilizes a proprietary sawing algorithm with servo motor controlled feed to continuously adjust critical sawing parameters during each cut.  The results are the fastest sawing times, best surface finish and longest blade life available on the market.

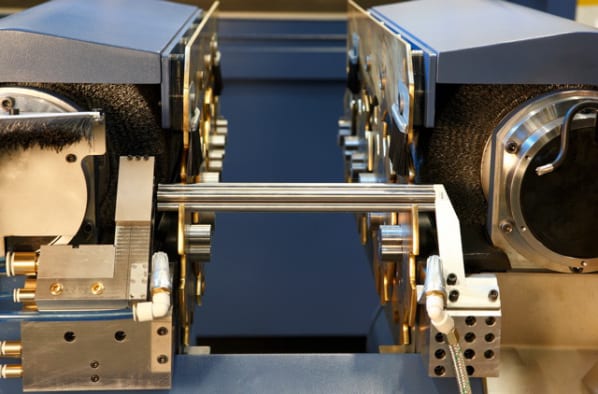

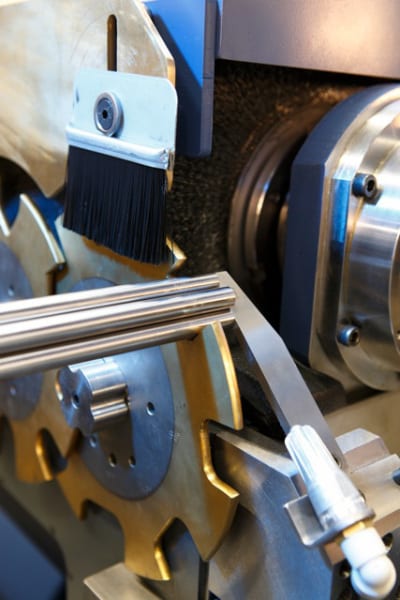

The CFMcurve machining center is a patented Rattunde process that simultaneously machines each workpiece end, using 12 independent servo-controlled axes.  Machining options include: threading, boring, profile turning, grooving, radius edges and angled chamfering.  Programming screens guide operators for quick setup on even the most complex part geometry.  No special programming is required.

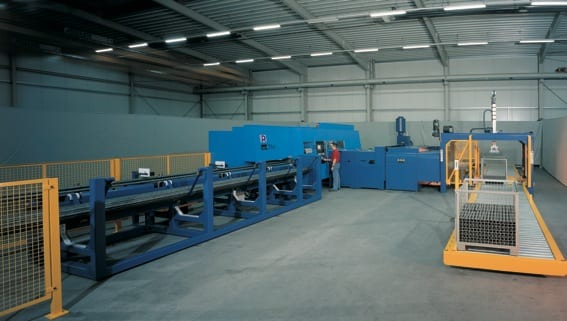

Precision parts are made in one continuous process with no operator intervention.  Bundles of mill length stock, up to 16.5 meters (54’) long, are placed in an automatic loader, individually separated and fed to the sawing process.  Cut parts are then transferred to the CFMcurve machine for precise finishing.  Utilizing advanced CNC controls, linear ball screws and servo motors, all mechanical motion is seamlessly integrated into the machine design for full process control.

The technology incorporated on this manufacturing center delivers production rates and quality unmatched by the competition.  For example, a tubular component of 70mm diameter, wall thickness of 5mm, material type ST52-3 BK, with a length of 150mm, machined with a 30 degree chamfer on the ID & OD with a faced end has a saw time of .96 seconds, a machined time of 1.86 seconds and the machine can produce 1,820 parts per hour, inspected for length and automatically packaged.  Cut length tolerance of +/- 0.15mm at 1.67 CPK and a machined length tolerance of +/- 0.05mm at 1.67 CPK are maintained with consistency.

The operator interface saves part files for instant recall when changing parts.  Servo motors move all cutting and machining tools to their exact positions and implement saved parameters.  No tooling change is required in the ACS Saw within a diameter range of 10mm; there is a 5mm diameter range in the CFMcurve.  Tooling change for the complete system takes less than 20 minutes, when necessary.

All critical sawing and machining parameters are monitored and controlled.  Clamping forces and position, saw blade torque and vibration, plus machining insert torque are continuously displayed and monitored.  Operating limits are set and machine functions stop when they are not met.  Saw blade and tooling insert wear is predictable and consistent.  Key data for each part produced are stored in memory for statistical evaluation.  All guesswork is removed for the operator.

Rattunde sets a new industry standard for manufacturing with this machine, replacing slow and unreliable processes with a complete manufacturing center.  Bar feeding lathe machines rely on a slow cutoff process, restrict the length of incoming stock and are not always capable of finishing both part ends simultaneously.  Cutting in a conventional saw, dropping parts in a bin and eventually loading them to a conventional machining center is time consuming, labor intensive and creates excess inventory with a loss of process control.

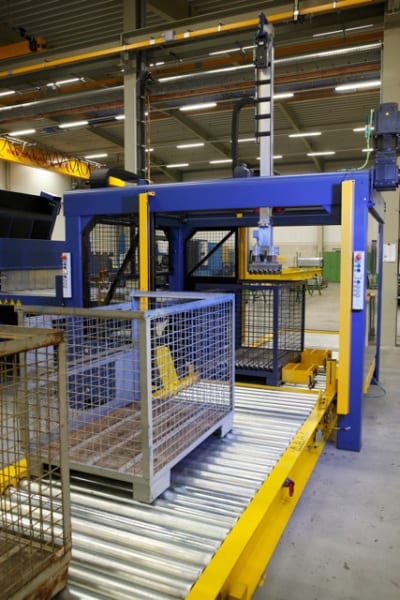

 Additional processes, engineered and manufactured by Rattunde, are easily integrated with the ACS + CFMcurve, including: part inspection stations, washing and drying, automatic packaging and automatic container changing, all available to further automate customer manufacturing.  The system being exhibited at IMTS will include part inspection and automatic packaging.

The ACS + CFMcurve is available in three models with diameter ranges from 10mm to 102mm, 10mm to 136mm and 10mm to 169mm, with finished part lengths from 10mm to 3500 mm.  All material types can be processed.

You can watch the machine in action at:

http://www.rattunde-corp.com/tube-sawing-video.htm



For further information, please contact:

Rattunde Corporation

4980 Kendrick St. SE

Grand Rapids, MI  49512

616-940-3340

Alec Banish

a.banish@rattunde-corp.com

www.rattunde-corp.com

IMTS PRE-SHOW NEWS…BOOTH N-6737

Continue reading
