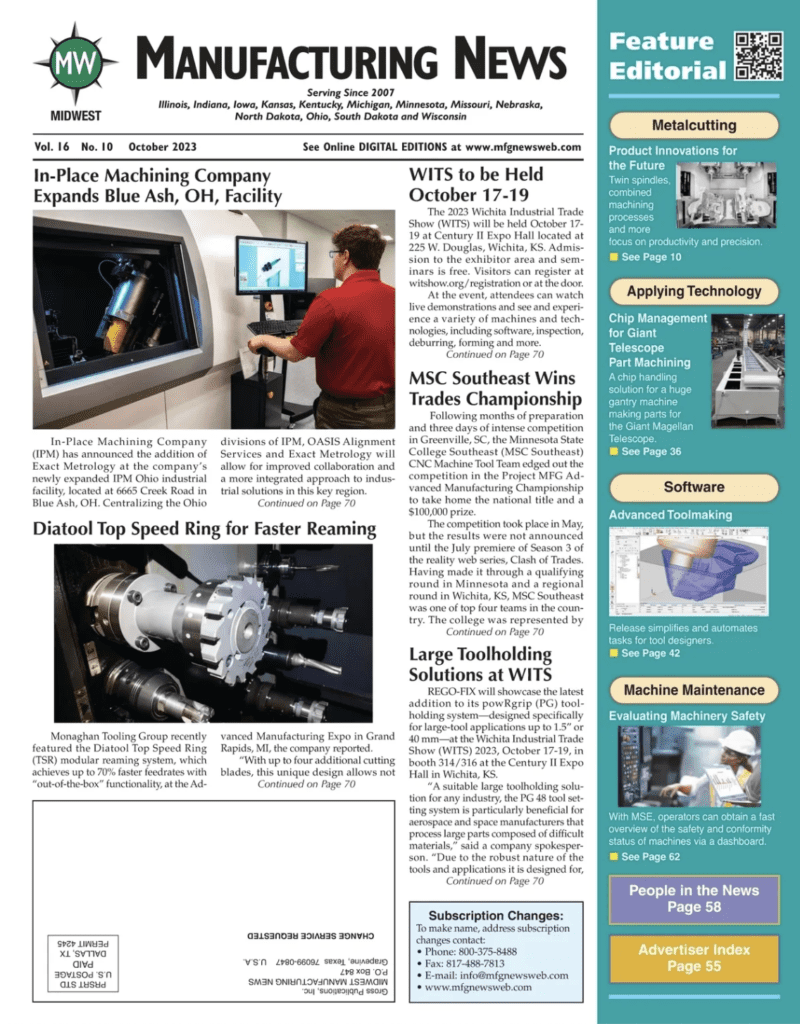

In-Place featured on front cover of Manufacturing News

In-Place Machinery Press Release Featured on Front Cover of Manufacturing News

In-Place featured on front cover of Manufacturing News


Read the full article here on our website.

Continue reading
IPM Brochure

IPM’s Measurement and Alignment Services Division Releases New Customer Resources Brochure

In-Place Machining Company’s new Measurement & Alignment Services Division, comprising Exact Metrology, OASIS Alignment Services and ECM: Global Measurement Solutions, has just released its new brochure and website page, showcasing the benefits of having one source for precision measurement and alignment solutions in plant and process operations.

These new resources highlight the innovative dimensional metrology, machine alignment, measurement tooling calibration, training and certification capabilities of these three highly respected industry suppliers. Providing an integrated approach benefits IPM customers with improved collaboration between a much larger team of experienced metrology engineers and technicians with skills, using a broader range of highly accurate and innovative 3D metrology tools and technologies.

With state-of-the-art measurement technology, cutting edge design and ISO 9100 & AS9100 Rev D certification, the 3D scanning facilities of the IPM Measurement & Alignment Services Division can capture measurements from objects as small as a medical heart stent to areas as large as a football field.  Using a fleet of innovative metrology solutions, this new division offers precision machine alignment, resulting in reduced downtime, improved product quality and minimized waste for many in the manufacturing and process industries. Calibrating 3D measurement systems such as laser trackers, portable arms etc. on a schedule will maximize the accuracy and clarity of the data. Highly trained metrology professionals help when clients need to ensure equipment precision and accuracy to boost their bottom line.

Capturing information using 3D scanning methods to find measurements of thickness, accuracy, porosity and more, is achieved with the Data Capture software. It’s compatible with short range, long range, computed tomography (CT) and coordinate measuring machine (CMM) scanners as well as laser trackers. Additionally, post-processing solutions are tailored to fit the needs of myriad IPM client applications.

Proper machine alignment involves more than just data collection. Experienced staff from all the participating companies have the skills, tooling and knowledge not only to provide highly accurate alignment inspection data, but also to make the necessary mechanical adjustments. This saves considerable time and money during planned outages, emergency shutdowns, rebuilds and installations. Using advanced alignment solutions, IPM helps clients increase operating efficiency through alignment inspections and diagnostics, mechanical adjustments, alignment planning and technical reports.

Calibration services can be performed onsite at the client’s facility or at one of the IPM ISO/IEC  17025 Accredited Laboratories. The Measurement & Alignment Services Division provides calibration for a wide array of applications including ISO/IEC 17025 accredited lab, comprehensive reporting, on-site calibration, ASME standards evaluation, cleaning and firmware upgrades, portable instruments and stationary CMMs.

For those who prefer keeping their measurement processes in-house, the company provides training and certification services. These include CMS metrology certification, geometric  dimensioning & tolerancing (GD&T), dimensional metrology, equipment and maintenance and measurement software.

Users in a wide variety of manufacturing and process industries will benefit from the collaborative capabilities of the IPM Measurement & Alignment Services Division.

IPM Brochure

For more information on this development or to request a copy of the new brochure, please contact:

Mr. Brian Hiltunen
Senior VP & General Manager – Measurement & Alignment Services Division
In-Place Machining Company
3811 North Holton Street
Milwaukee, WI 53212
Phone: 414-562-2000
brian.hiltunen@oasisalignment.com
www.inplacemeasureandalign.com
www.inplace.com

To view an online copy of the brochure/flipbook click:

IPM MEASUREMENT & ALIGNMENT SERVICES

In-Place Machining Company: On-Site Machining Solutions In-Place, Any Place in the World.

In-Place Machining Company is the premier provider of high-precision machining, large scale cutting and drilling, dimensional metrology, instrument calibration, and machine alignment services for a wide range of renewable energy, aerospace, industrial, and military customers throughout the world. Now with seventeen service locations across the U.S. and Canada, IPM has a breadth of service offerings that is unmatched in the industry.



Exact Metrology: A Division of In-Place Machining Company, is ISO9001, AS9100 Certified as well as ITAR Registered.

Exact Metrology is a comprehensive metrology services provider, offering customers 3D and CT scanning, reverse engineering, quality inspection, product development and 3D modeling. The company also provides turnkey metrology solutions, including equipment sales and lease/rental arrangements.

OASIS Alignment Services:  A Division of In-Place Machining Company, a Leader in Precision Measurement, Machine Alignment and Mechanical Services

With a unique combination of tooling and services and a team of knowledgeable and dedicated engineers and field technicians, OASIS partners with customers to develop solutions specific to their precision measurement and machine alignments needs. Using a fleet of precision metrology instruments and mechanical tools, OASIS can provide full turnkey service from a North American network of service centers.

East Coast Metrology: A Division of In-Place Machining Company, a Leader in Precision Measurement, Machine Alignment and Mechanical Services

A globally recognized full-service contract measurement company specializing in 3D scanning and modeling, reverse engineering and design, training and certification, instrument calibrations, equipment rentals, integration & alignment and more. Headquartered in Topsfield, Massachusetts, ECM hosts an ISO/IEC 17025 Accredited Laboratory performing instrument calibrations, repairs and CMM part inspection and programming.

Continue reading

In-Place Machining Company (IPM) Streamlines Operations with Newly Expanded Blue Ash, Ohio Facility

Consolidation of IPM, Exact Metrology, and OASIS Alignment Services in single location strengthens synergy of divisions for enhanced service to aerospace, power generation, heavy manufacturing and other industries

In-Place Machining Company (IPM) is pleased to announce the addition of Exact Metrology at the company’s newly expanded IPM Ohio industrial facility, located at 6665 Creek Road in Blue Ash, Ohio. Centralizing the Ohio divisions of IPM, OASIS Alignment Services, and Exact Metrology will allow for improved collaboration and a more integrated approach to industrial solutions in this key region.

Speaking from IPM corporate headquarters in Milwaukee, WI, IPM President & CEO Dean Flint said, “We see this move as a classic case of the whole being greater than the sum of the parts.”

Flint went on to explain the synergy of having three prominent suppliers to industry in the Ohio area. “In IPM, we have a leading force in precision industrial machining services plus large-scale wire cutting and drilling. Coupled with the machine alignment expertise of OASIS Alignment Services and the dimensional metrology and onsite scanning capabilities of Exact Metrology, we can now provide faster assessments on potential projects, situation analyses, service execution, and 3D measurement data capture solutions.”

“This unified team will represent a formidable partner to our existing and potential customers in the region,” Flint continued, noting the collaboration of the three companies at one location will enhance customer service, while utilizing shared resources and staff capabilities.

The move is part of a long-term growth strategy at IPM to expand industrial service offerings from single integrated sources and enhance its regional strengths across the U.S. and Canada. To that end, IPM has created two divisions with multiple service locations across North America – the IPM Machining Services group consisting of IPM and newly acquired Western Machine Works, LLC, and the IPM Measurement & Alignment Services group of Exact Metrology, OASIS Alignment Services, and ECM: Global Measurement Solutions. As Flint notes, “Being a ‘local’ company has significant benefits beyond the operational strengths of the partners.”

For more information on this development, please contact:

Mr. Alan Brown
Senior VP & GM – Field Machining
In-Place Machining Company
3811 North Holton Street
Milwaukee, WI 53212
Phone: 414-562-2000
abrown@inplace.com

www.inplace.com

In-Place Machining Company: On-Site Machining Solutions In-Place, Any Place in the World.

In-Place Machining Company is the premier provider of high-precision machining, large scale cutting and drilling, dimensional metrology, instrument calibration, and machine alignment services for a wide range of renewable energy, aerospace, industrial, and military customers throughout the world. Now with seventeen service locations across the U.S. and Canada, IPM has a breadth of service offerings that is unmatched in the industry.



Exact Metrology: A Division of In-Place Machining Company, is ISO9001, AS9100 Certified as well as ITAR Registered.

Exact Metrology is a comprehensive metrology services provider, offering customers 3D and CT scanning, reverse engineering, quality inspection, product development and 3d modeling. The company also provides turnkey metrology solutions, including equipment sales and lease/rental arrangements.



OASIS Alignment Services:  A Division of In-Place Machining Company, a Leader in Precision Measurement, Machine Alignment and Mechanical Services

With a unique combination of tooling and services and a team of knowledgeable and dedicated engineers and field technicians, OASIS partners with customers to develop solutions specific to their precision measurement and machine alignments needs. Using a fleet of precision metrology instruments and mechanical tools, OASIS can provide full turnkey service from a North American network of service centers.

Continue reading

2023 ASQ Hromi Medal Awarded to Gary Confalone

Recognized for significant contributions to the science of inspection and the advancement of the inspection profession.

East Coast Metrology (ECM): A Division of In-Place Machining Company is pleased to announce that Gary Confalone is the recipient of the 2023 ASQ Hromi Medal. Each year the American Society for Quality (ASQ) Hromi Medal committee recognizes individuals who have made noteworthy contributions to the science of inspection and/or the advancement of the inspection profession. Recipients of the award have contributed to the profession throughout their career by delivering products and processes to advance the state of inspection through test, calibration, cost reduction, and professional development.

Mr. Confalone’s contributions to the science of inspection began more than 30 years ago when he started his career as a Systems Integration Engineer at Sikorsky Aircraft. It was during his time at Sikorksy that his passion to improve the industry with more efficient technology was ignited. After joining the American Helicopter Society, he delved into the research for the production of the Army’s RAH-66 Comanche Helicopter and later received the Inventor’s Recognition Award from Sikorsky Aircraft for the development of a laser boresight system. A publication titled Laser Based Alignment, Advanced Manufacturing Techniques, detailing the advantages of this system can be obtained on the VTOL website.

After a decade of working to develop and improve laser-based metrology, he moved on to further advance the inspection sector of the developing laser tracker system through his work with Spatial Metrix Corporation. With a bachelor’s degree in electrical engineering and a master of science in mechanical engineering, Mr. Confalone founded East Coast Metrology (ECM) in Topsfield, Massachusetts, an engineering firm offering a variety of metrology solutions to a wide range of industries. ECM has since experienced exponential growth spanning the globe over the last 20 plus years.

In 2009, Mr. Confalone joined the newly formed Certification Committee of the Coordinate Metrology Society (CMS). This committee is comprised of industry volunteers who would work to later develop the industry’s first standardized metrology certification exam for both portable and stationary coordinate measuring machines. In 2021 he assumed the volunteer position of Chairperson of the Certification Committee devoting his spare time to assessing the industry requirements needed for achieving better standardized metrology processes.

In 2010, Mr. Confalone was elected to the CMS by his industry peers where he served on the Executive Committee assisting with the annual Coordinate Metrology Society Conference. The CMSC combines technical presentations from industry experts, hands-on workshops, and unprecedented training opportunities on the highest quality hardware and software in the field of metrology. In 2017, Mr. Confalone was elected Chairperson of the Executive Committee. This was a three-year voluntary commitment which involved Gary heading up the committee to oversee the society and the annual conference.

Mr. Confalone’s track record of contributions to the science of inspection is vast, however his passion for the advancement of the inspection profession lies in educating younger generations coming into the industry. He regularly brings ECM engineers to local high schools and colleges to speak with students about the opportunities in the field of engineering and metrology, including hands-on demonstrations of equipment in hopes of garnering student’s interest in this discipline.

Most recently, Mr. Confalone has co-authored and published 3D Scanning for Advanced Manufacturing, Design, and Construction. This highly educational book

provides a comprehensive introduction to 3D scanning and its applications in both the manufacturing and AEC industries. After establishing the history and basic principles of 3D scanning, it includes discussions of data collection and analysis and the many real-world applications of this technology.  The book is currently available for purchase from Wiley Publishing.

In 2022, East Coast Metrology was strategically acquired by In-Place Machining Company (IPM) and is now part of their Measurement and Alignment Services Division, offering industry professionals one source for industrial metrology solutions. Mr. Confalone currently serves as Vice President of ECM and continues his initiative to advance the inspection industry by combining forces with OASIS Alignment Services and Exact Metrology, creating a powerhouse of metrology solutions from one source and is set to become the #1 metrology service provider in the world.

Mr. Confalone was awarded the Hromi Medal on Sunday, May 7th during ASQ’s Award Ceremony immediately prior to the start of ASQ World Conference on Quality and Improvement in Philadelphia, PA.

For more information on this development, please contact:

Mr. Alan Brown
Senior VP & GM – Field Machining
In-Place Machining Company
3811 North Holton Street
Milwaukee, WI 53212
Phone: 414-562-2000
abrown@inplace.com

www.inplace.com

In-Place Machining Company: On-Site Machining Solutions In-Place, Any Place in the World.

In-Place Machining Company is the premier provider of high-precision machining, large scale cutting and drilling, dimensional metrology, instrument calibration, and machine alignment services for a wide range of renewable energy, aerospace, industrial, and military customers throughout the world. Now with seventeen service locations across the U.S. and Canada, IPM has a breadth of service offerings that is unmatched in the industry.



Exact Metrology: A Division of In-Place Machining Company, is ISO9001, AS9100 Certified as well as ITAR Registered.

Exact Metrology is a comprehensive metrology services provider, offering customers 3D and CT scanning, reverse engineering, quality inspection, product development and 3d modeling. The company also provides turnkey metrology solutions, including equipment sales and lease/rental arrangements.



OASIS Alignment Services:  A Division of In-Place Machining Company, a Leader in Precision Measurement, Machine Alignment and Mechanical Services

With a unique combination of tooling and services and a team of knowledgeable and dedicated engineers and field technicians, OASIS partners with customers to develop solutions specific to their precision measurement and machine alignments needs. Using a fleet of precision metrology instruments and mechanical tools, OASIS can provide full turnkey service from a North American network of service centers.

Continue reading

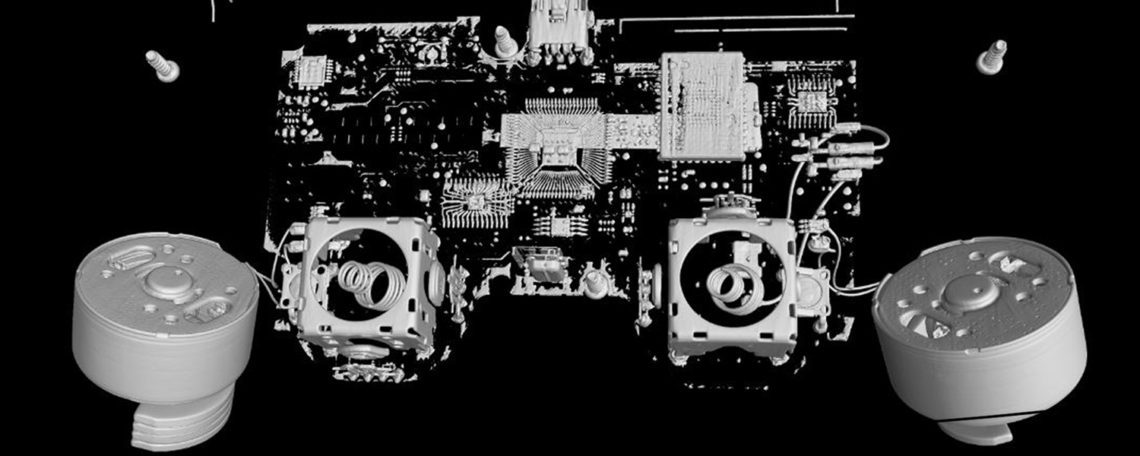

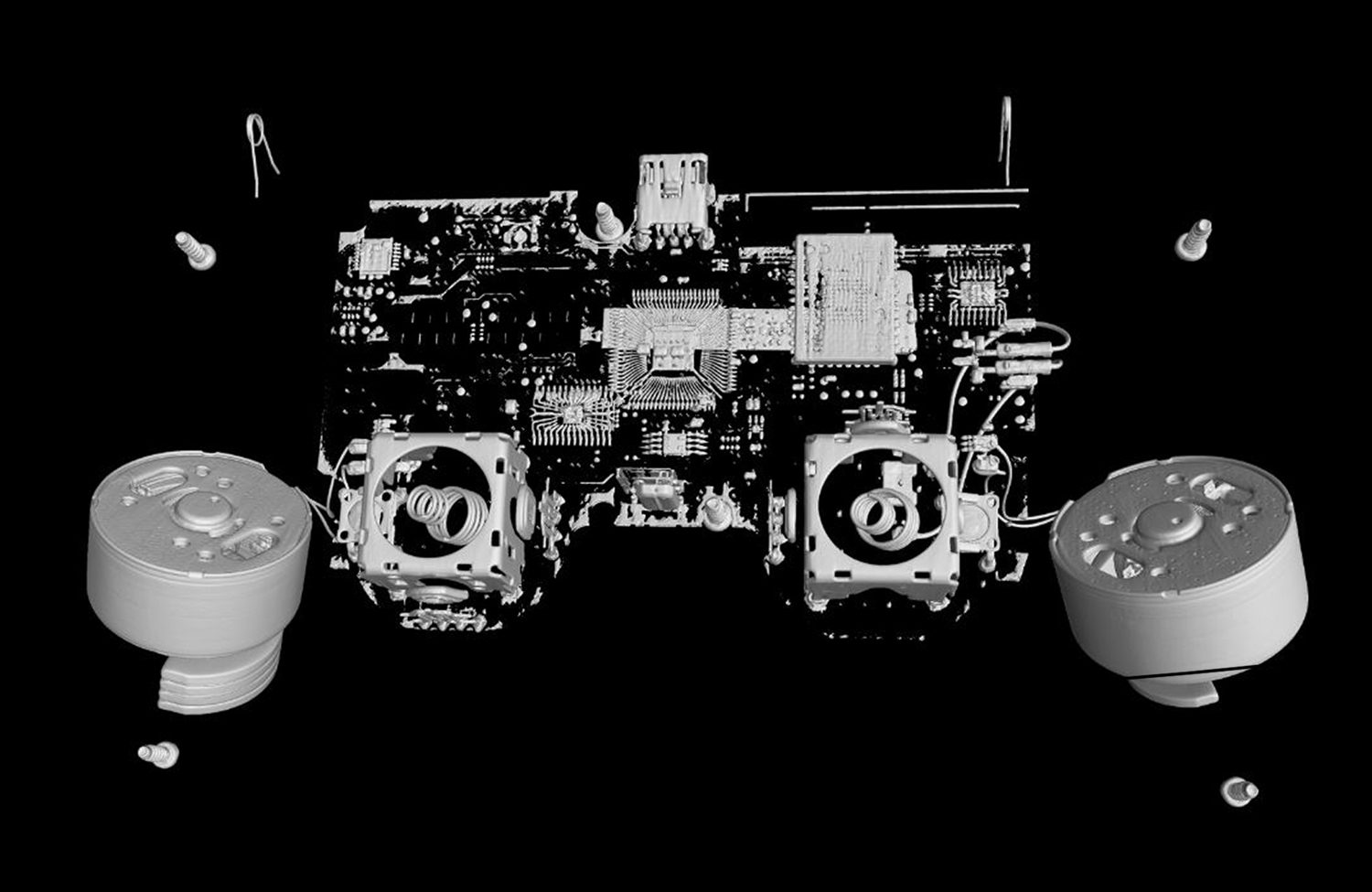

CT scan of Xbox Controller

CT Scanning Impacts Industries – Most Notably Aerospace

John Legleu, Exact Metrology Product Manager, provides insights into the advancements and benefits of CT technology, especially as it relates to the future of the aerospace industry

John LegleuExact Metrology: A Division of In-Place Machining Company, a comprehensive 3D metrology service provider and hardware sales company, through its product manager John Legleu, details the uses of CT scanning technology across various industries, highlighting especially how CT serves additive manufacturing and how it will change the aerospace industry.

Computed tomography (CT), also known as industrial x-ray and industrial imaging, is used to obtain 3-dimensional (3D) results by placing an object on a rotational stage between an x-ray tube and x-ray detector, rotating the object 360 degrees and capturing images at specific intervals—such as every degree or half degree.  For its services to clients, Exact Metrology uses CT technology in almost every industry, including aerospace, automotive, medical, injection molding, plastics, additive manufacturing and electronics.

Its most often used scanners are the ZEISS METROTOM 6 scout and GE V TOME XM 300Kv. The METROTOM 6 scout digitizes complex parts including the internal geometries at the finest level of detail. Users obtain a complete 3D image for GD&T analysis or nominal-actual comparisons. The metrology CT excels in digitizing very small plastic parts. The GE V TOME scanner is a versatile X-ray microfocus CT system for 3D metrology and analysis with up to 300 kV / 500 W.

According to Legleu, the technology offers numerous benefits, such as higher accuracy/resolution, non-destructive ways to obtain true dimensional data and scanning multiple parts in a single scan. In addition, CT scanning requires very little time to capture data and troubleshoot parts and also offers multiple uses with one scan (void analysis, inspection, volume, porosity, reverse engineering etc.). In contrast to conventional tactile coordinate measurement techniques, a CT acquires all surface points simultaneously —on even the most complex objects.

The technology does bring challenges with it, namely due to high-density materials that are difficult to scan. In addition, parts that have more than one material are challenging to surface. The size and weight of parts are also limited.

Legleu points out how CT has already evolved in the rapidly emerging additive manufacturing industry, making scanning faster, with higher resolution and better accuracy.  Although used primarily in additive manufacturing to find porosity or unformed materials within printed parts, CT scanning can also be used to analyze the raw material for 3D printing, such as powdered metals or filaments.

He concludes by stating, “I predict that aerospace will begin to use CT exclusively to inspect all additive manufactured parts. Presently, CT is considered an “emerging technology” in aerospace but that is likely to change within the next few years. All predictions show a growth rate of 7.5% between 2021 and 2028, increasing from $460 million to $765.8 million.”

Exact Metrology: A Division of In-Place Machining Company, is ISO9001, AS9100 Certified as well as ITAR Registered.

Exact Metrology: A Division of In-Place Machining Company, with facilities in Cincinnati, Ohio, Moline, Illinois and Milwaukee, Wisconsin, plus affiliated offices throughout the country, is a comprehensive metrology services provider, offering customers 3D and CT scanning, reverse engineering, quality inspection, product development and 2D drawings. The company also provides turnkey metrology solutions, including equipment sales and lease/rental arrangements.



In-Place Machining Company: On-Site Machining Solutions In-Place, Any Place in the World.

In-Place Machining Company, with seventeen locations across North America, is the premier provider of high-precision engineered on-site machining, in-shop industrial machining, metrology solutions, machine alignment, and large scale cutting & drilling services for a wide range of renewable energy, aerospace, industrial manufacturing, marine, and military customers throughout the world.

For more information, please contact:

John Legleu
11575 Goldcoast Drive
Cincinnati, OH 45249
Phone: 513-813-4207
Mobile: 513-504-8092
www.exactmetrology.com
johnl@exactmetrology.com



Continue reading

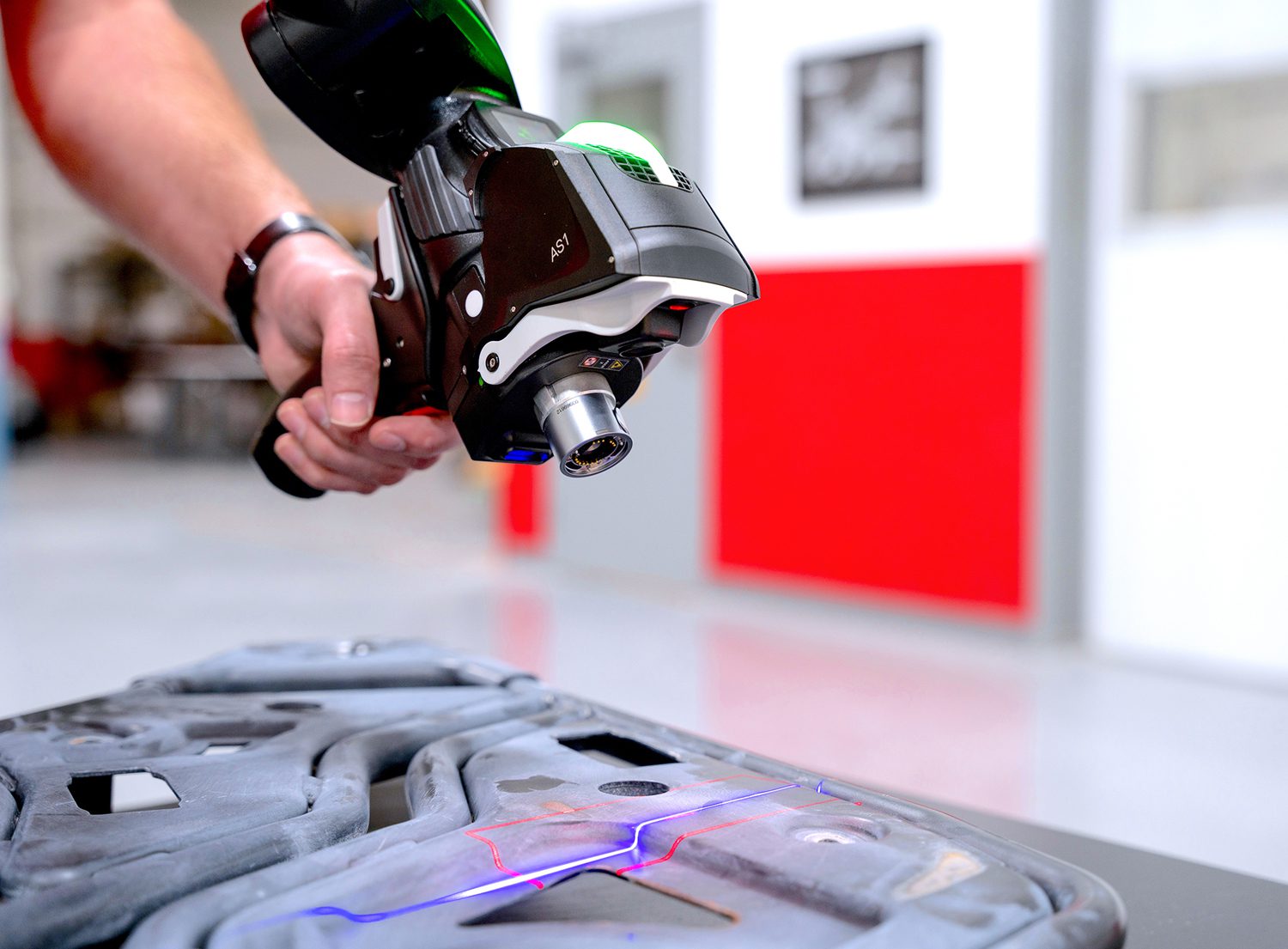

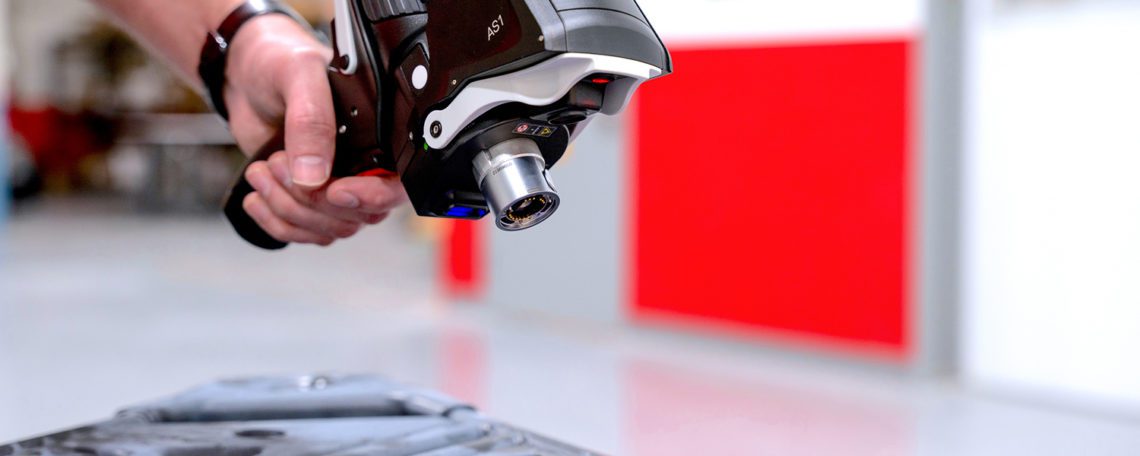

Absolute Arm with AS1 Scanner

Exact Metrology Set to Display New Technology at MetalCasting Congress

Besides showcasing the ATOS Q and Absolute Arm, the company will present the new T-SCAN hawk 2

Exact Metrology: A Division of In-Place Machining Company and a comprehensive 3D metrology service provider and hardware sales company, will be exhibiting at the MetalCasting Congress and present innovative solutions from ZEISS, GOM and Hexagon in booth 815.

Produced by the American Foundry Society, this unique event is taking place between April 25-27 at the Huntington Convention Center in Cleveland, Ohio. The program offers exhibits, interactive demonstrations, and a direct connection with metalcasters, top suppliers and service providers. Present at the Exact Metrology booth will be Dean Solberg, Vice President of Metrology Sales and Services, Darin Sherry, Regional Sales Manager and David Nichols, Applications Engineer. The advanced metrology instruments that will be demonstrated in the Exact Metrology booth are the T-Scan hawk 2 from ZEISS, the GOM ATOS Q, and the Absolute Arm from Hexagon Manufacturing Intelligence.

The ZEISS T-SCAN hawk 2 is the next generation lightweight portable 3D scanner with metrology-grade precision and ease of use. Working distance can be controlled with a new projection mode. Furthermore, the satellite mode can scan up to multiple meters, eliminating the need for classical built-in photogrammetry with coded markers. The T-SCAN hawk 2 features four buttons to start and navigate the workflow directly. Seamless adjustments for resolution and field of view are applied for fine details, large objects, deep pockets, confined spaces, or hard-to-reach areas.  This scanner supports scanning on a wide range of materials and surfaces, delivering precise 3D data.

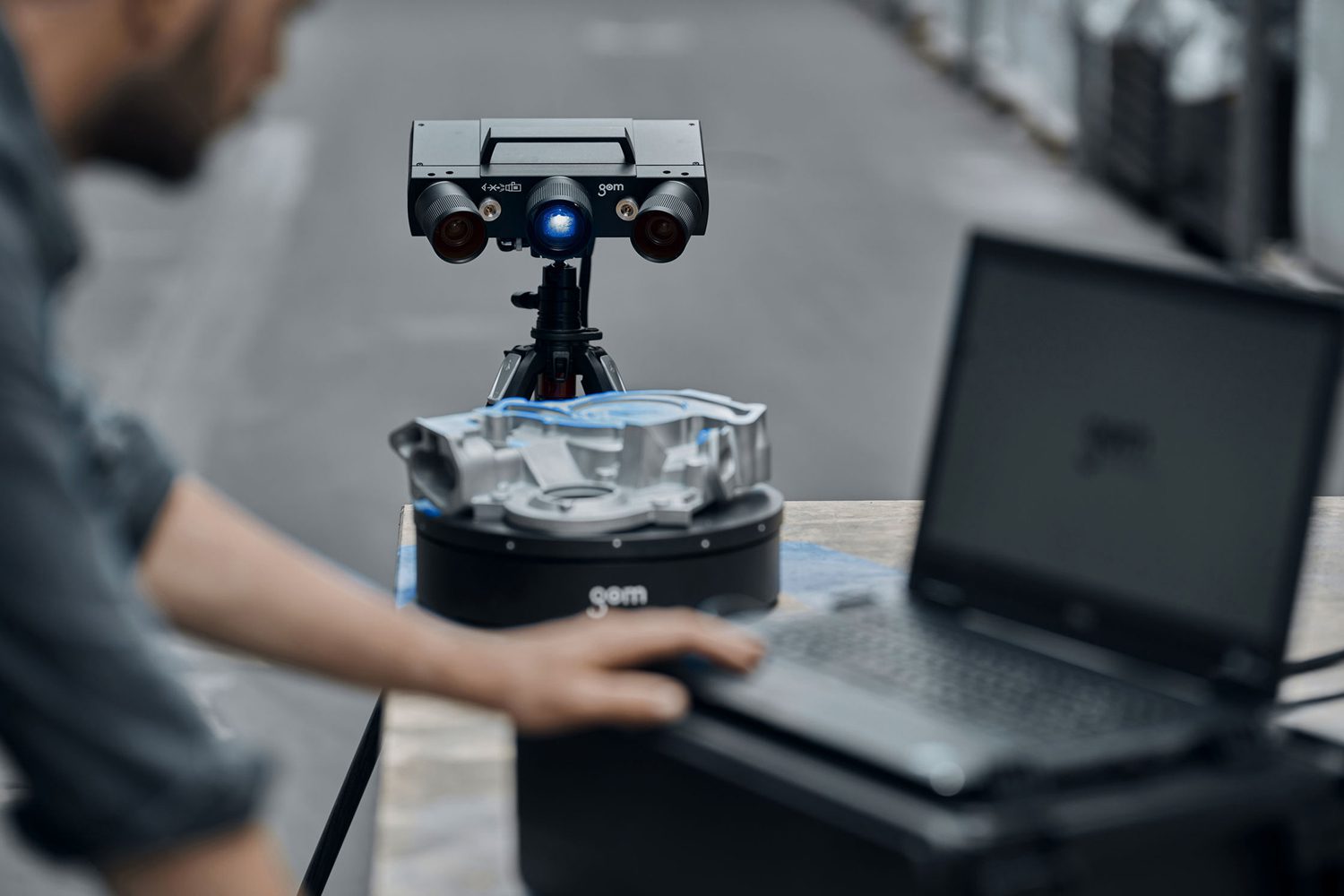

GOM ATOS Q is a flexible 3D scanner for complex measurement and inspection tasks in different industries. The scanner delivers fully traceable measurement results, especially in harsh conditions. It captures quality information quickly and with a high degree of detail, providing a reliable basis to easily interpret the information. ScanCobot, a mobile automated 3D scanning system, easily integrates with ATOS Q.

The Absolute Arm from Hexagon Manufacturing Intelligence has an IP54 protection rating, a market first for portable measuring arms. It features an environment-related improvement that sees the system’s maximum operating temperature increased to 45°C.  There are also improvements to the functionality of the Absolute Arm wrist display, now upgraded to a touchscreen, and the RDS software that drives it.

Besides the mentioned products, Exact Metrology also offers dimensional metrology services, including post processing options of reverse engineering and inspection. With First Article Inspection, which is a design verification process, measurements for each manufactured feature of a part are generated.  Thus, a manufacturer can ensure all specifications are to design specifications before manufacturing a part.

Visit Exact Metrology in booth 815 during MetalCasting Congress.


In-Place Machining Company: On-Site Machining Solutions In-Place, Any Place in the World.

In-Place Machining Company, with facilities in Wisconsin, Washington, Virginia, Ohio, and Ontario, Canada, is the premier provider of high-precision engineered on-site machining, metrology, and large scale cutting & drilling services for a wide range of renewable energy, aerospace, industrial, and military customers throughout the world.

Exact Metrology: A Division of In-Place Machining Company, is ISO9001, AS9100 Certified as well as ITAR Registered.

Exact Metrology: A Division of In-Place Machining Company, with facilities in Cincinnati, Ohio, Moline, Illinois and Milwaukee, Wisconsin, plus affiliated offices throughout the country, is a comprehensive metrology services provider, offering customers 3D and CT scanning, reverse engineering, quality inspection, product development and 2D drawings. The company also provides turnkey metrology solutions, including equipment sales and lease/rental arrangements.

GOM GmbH

GOM, a company of the ZEISS Group, specializes in industrial 3D coordinate measuring technology, 3D computed tomography and 3D testing. From product development to production and worldwide distribution, GOM offers machines and systems for manual and automated 3D digitizing, evaluation software, training and professional support from a single source. In industries such as automotive, aerospace, energy and consumer goods, more than 17,000 GOM system installations are in use internationally. At more than 60 locations and with more than 1,200 metrology specialists, GOM guarantees profound advice and first-class service. Since mid-2019, GOM has been a part of the ZEISS Group and has formed the Center of Excellence for optical metrology. With more than 31,000 employees in 50 countries and annual revenue totaling more than 6.4 billion euros, ZEISS is an internationally leading technology enterprise operating in the fields of optics and optoelectronics.

Continue reading

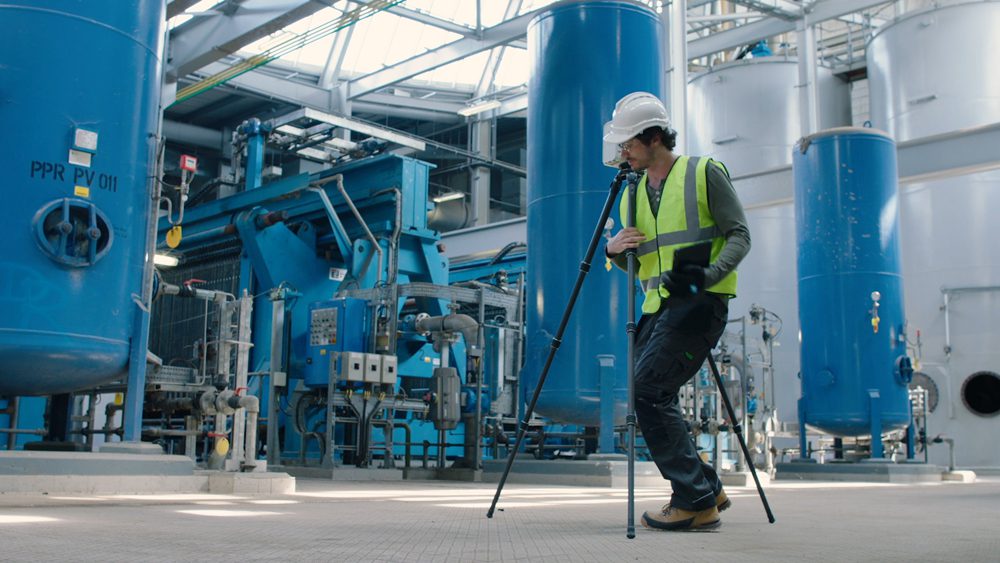

Leica RTC360 used in plants

Exact Metrology Attends POWERGEN

Exact Metrology: A Division of In-Place Machining Company and a comprehensive 3D metrology service provider and hardware sales company, exhibited at POWERGEN International together with In-Place Machining Company (IPM), Oasis Alignment Services: A Division of In-Place Machining Company and East Coast Metrology: A Division of In-Place Machining Company in booth 3014. Representatives were on hand to offer solutions for the thermal, hydro, nuclear, wind and diesel industries.

Leica RTC360 used in plants

Leica RTC360 used in plants

The show was recently held at the Orange County Convention Center in Orlando, Florida. POWERGEN is the largest networking and business hub for generators and solution providers engaged in power generation. Power producers, utilities, EPCs, consultants, OEMs and large-scale energy users gather to discover unparalleled education, peer-to-peer networking and solutions from top providers.

Exact Metrology displayed its Leica RTC360. Manufactured by Leica Geosystems, these portable coordinate measuring machines are designed to measure large-scale objects. The RTC360 3D Reality capture scanner is ideal for professionals managing project complexities with accurate and reliable 3D representations. This scanner effectively combines a high-performance 3D laser scanner with Leica Cyclone Field 360, a mobile device app for edge computing that automatically registers scans in real time and Leica Cyclone REGISTER 360, an office software that integrates the 3D model into the workflow. Additional features include capturing scans, including enriching HDR imagery, in less than two minutes, automatically recording moves from station to station and augmenting data capture with information tags.

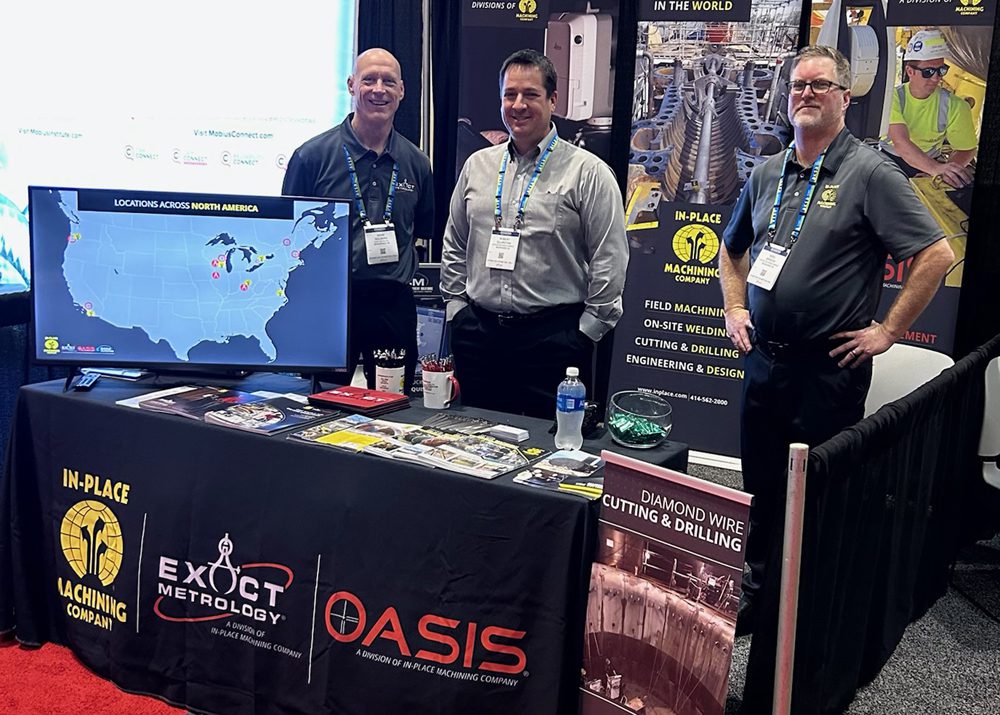

Dean Solberg (left), Rob Ellington (middle) and Noel Brekas (far right)

Dean Solberg (left), Rob Ellington (middle) and Noel Brekas (far right)

Measurement services displayed by OASIS Alignment Services included 26 power plant (hydro, steam and gas) jobs performed in 2020. Most jobs involved metrology support, with two including mechanical work. In 2021, the total number was 37, most of which were metrology supported, with six jobs including mechanical work. Last year, 29 power plant jobs were performed, two including mechanical work.  To date in 2023, 10 jobs have been accomplished, three involving mechanical work.  Examples of mechanical jobs in the power industry typically include cooling tower fan alignment, pump alignment, replacement of turbine bearings, generator alignment, new coupling installment, gearbox alignment, circular pump alignment, repair of broken shaft and solar generator alignment.  Some metrology alignment jobs comprised inspection of turbine components, monitoring of components during a rebuild, structural movement studies, flatness inspections and others.

Present at the event were Dean Solberg, Vice President of Metrology Sales and Services at Exact Metrology, IPM Sales Managers Noel Brekas, Ronnie Onofry and Rob Ellington, Paul Parry, Director of Sales-Field Machining and Ulises Uscanga, Head of Industrial Plant Solutions at Leica Geosystems.

Dean Solberg highlighted the importance of having East Coast Metrology at the show. “The recent acquisition of East Coast Metrology allows IPM Measurement Group to provide nationwide coverage with metrology services to complement its field machining capabilities. We are excited to continue serving our customers’ needs as their one-stop shop.”

IPM discussed its recent acquisition of East Coast Metrology, which now afford the company nationwide coverage with metrology services to complement its field machining capabilities.


In-Place Machining Company: On-Site Machining Solutions In-Place, Any Place in the World.

In-Place Machining Company, with facilities in Wisconsin, Washington, Virginia, Ohio, and Ontario, Canada, is the premier provider of high-precision engineered on-site machining, metrology, and large scale cutting & drilling services for a wide range of renewable energy, aerospace, industrial, and military customers throughout the world.

Exact Metrology: A Division of In-Place Machining Company, is ISO9001, AS9100 Certified as well as ITAR Registered.

Exact Metrology: A Division of In-Place Machining Company, with facilities in Cincinnati, Ohio, Moline, Illinois and Milwaukee, Wisconsin, plus affiliated offices throughout the country, is a comprehensive metrology services provider, offering customers 3D and CT scanning, reverse engineering, quality inspection, product development and 2D drawings. The company also provides turnkey metrology solutions, including equipment sales and lease/rental arrangements.

OASIS Alignment Services: A Division of In-Place Machining Company

OASIS Alignment Services: A Division of In-Place Machining Company, provides 3-Dimensional Metrology Services, Precision Alignment Inspections and Diagnostics and Mechanical Services across a wide range of industries including aerospace, automotive, power generation, shipbuilding, pulp and paper, converting, printing, plastics, textiles and more. OASIS has completed thousands of successful projects since its inception in 1982 and continues to set industry standards in alignment procedures, specialized tooling and reporting techniques. OASIS operates service centers in New Hampshire, North Carolina, Florida, Ohio, Wisconsin, California, Washington, and Ontario and Québec, Canada. For more visit www.oasisalignment.com

East Coast Metrology: A Division of In-Place Machining Company

East Coast Metrology is a globally recognized full-service contract measurement company specializing in 3D scanning and modeling, reverse engineering & design, training and certification, instrument calibrations, equipment rentals, integration & alignment services. Headquartered in Topsfield, Massachusetts, ECM hosts an ISO/IEC 17025 Accredited Laboratory where they perform instrument calibrations, repairs, and CMM part inspection and programming. For more visit www.eastcoastmetrology.com



For information, please contact:

EXACT METROLOGY, INC.
Dean Solberg
20515 Industry Avenue
Brookfield, WI 53045
Local: 262-533-0800
www.exactmetrology.com
deans@exactmetrology.com

EXACT METROLOGY, INC.
Steve Young
11575 Goldcoast Drive
Cincinnati, OH 45249
Local: 513.831.6620
Toll Free: 866.722.2600
www.exactmetrology.com
stevey@exactmetrology.com

Continue reading

In-Place Machining Company Acquires Western Machine Works, LLC

Strategic Partnership Expands Industrial Machining and Repair Capabilities and Strengthens Commitment to Providing Customer Service Excellence

March 15, 2023 | Milwaukee, WIIn-Place Machine Company, LLC (IPM) is pleased to announce the acquisition of Western Machine Works, LLC (WMW) as part of a long-term growth strategy to expand reach and service offerings to customers and prospects across the U.S. and Canada. Globally recognized as the premier provider of high-precision industrial solutions, IPM has long been the leader in on-site machining, diamond wire cutting and drilling, and alignment and measurement services. Adding the expertise in engineering and precision machine shop services of WMW to the extensive field machining capabilities and solutions of IPM, greatly enhances the benefits to customers across a multitude of industries.

“IPM could not be happier about Western Machine Works joining our great Team,” said Dean Flint, President and CEO of In-Place Machining Company. “Their highly skilled, experienced group of engineers and machinists is committed to providing exceptional service to heavy industrial markets such as pulp & paper, marine, steel, and wind & hydro power generation.” Mr. Flint added, “WMW has a reputation for being the best of the best. Their location, end markets and service offerings, as well as their company culture, make them an outstanding fit for our customers, and for our overall growth strategy.”

“This is a very exciting time for WMW”, said Greg Allen, SVP and General Manager of Western Machine Works. “It was very important to us that we partner with a company that excels in machining and has experience in the industries we serve. IPM’s onsite machining capabilities and experience are unmatched and complement the services we provide to create a unique benefit to our customer base.”  Mr. Allen added, “I am confident that our employees and our customers, will benefit greatly from this new venture.”

Based in Portland, Oregon, Western Machine Works, LLC is a highly respected in-house machining and engineering firm that specializes in the repair and refurbishment of large scale, precision components, including pulp and paper rolls, wind turbine main shafts, hydro-electric components, and more. Founded in 1985 to provide precision roll grinding, balancing and general machining services for the pulp and paper industry, WMW leveraged their expertise to provide engineered solutions to the wind power, hydro-electric, steel manufacturing, marine and other heavy industries.

In-Place Machining Company continues to grow and strengthen its capabilities by adding the leaders in industrial solutions to its team. With the newest addition of Western Machine Works, LLC to the IPM Machining Services Division as well as its strong Measurement & Alignment Services Division of OASIS Alignment Services, Exact Metrology, and East Coast Metrology, IPM brings a level of experience, knowledge, tooling, and service that is unrivaled in the industry.

In-Place Machining Company: On-Site Machining Solutions In-Place, Any Place in the World.
With seventeen facilities across the United States and Canada, In-Place Machining Company is the premier provider of high-precision engineered on-site machining, large scale cutting & drilling, 3D scanning, and measurement and alignment services for a wide range of industries including renewable energy, aerospace, industrial, and military customers throughout the world. For more visit www.inplace.com.

Western Machine Works: A Division of In-Place Machining Company
Western Machine Works, LLC helps companies improve production efficiency by providing engineering and precision machine shop services including industrial repair, shaft manufacturing, precision roll grinding, thermal spray services, and roll manufacturing. Located in Portland, OR, WMW provides services to heavy industries including pulp and paper, wind and hydro power generation, marine, steel and more. For more visit www.westernmachine.com.


Corporate Contacts

Dean Flint
President & CEO In-Place Machining Company, LLC
3811 N. Holton Street
Milwaukee, WI 53212
414.562.2000
DFlint@inplace.com

Greg Allen
Sr VP & GM, Western Machine Works, LLC
12005 N. Burgard Road
Portland, OR 97203
503.286.7791
GregA@westernmachine.com

Continue reading

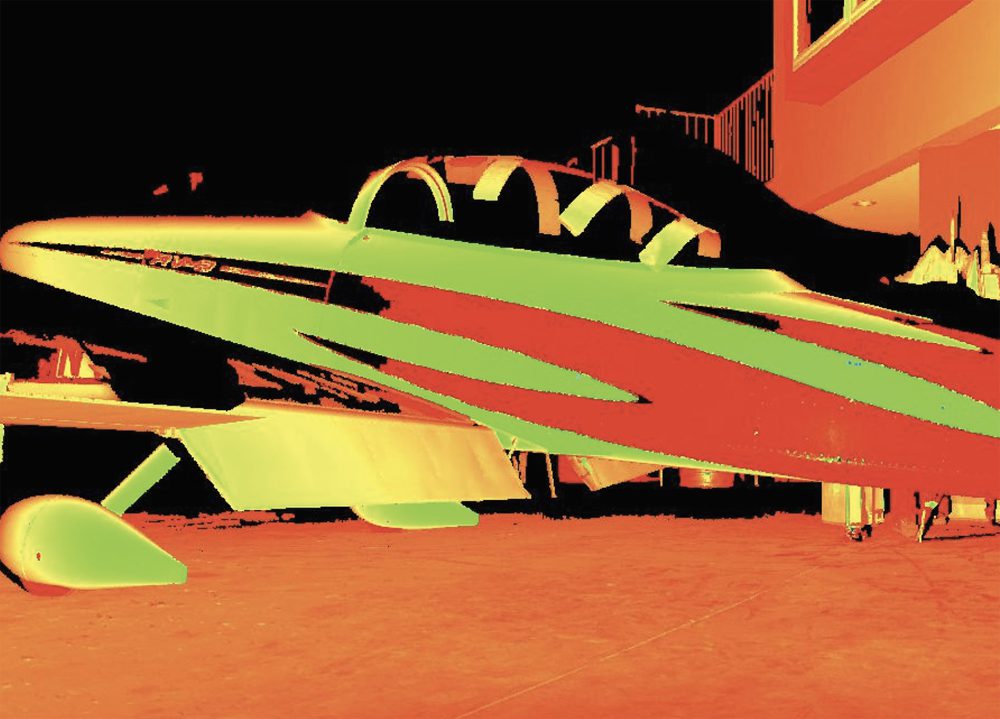

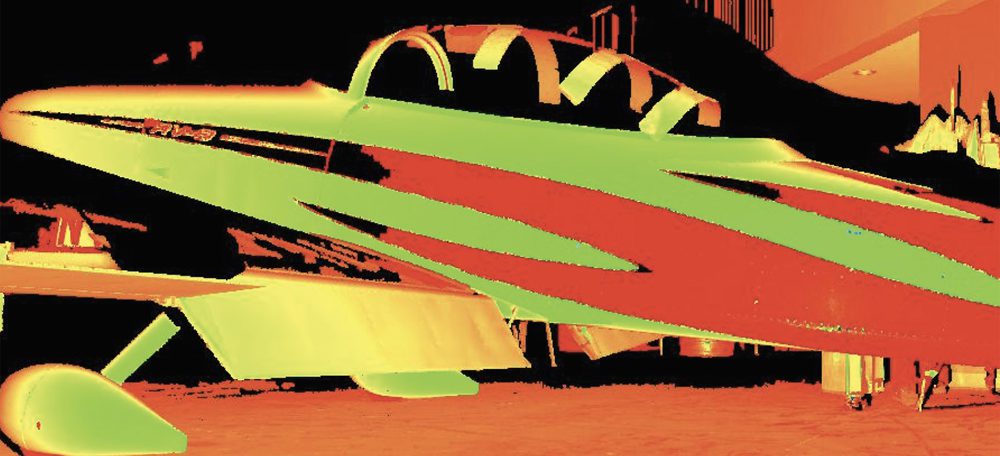

RV8 plane point cloud image

Aerospace Industry Benefits from Advancements Made in 3D Scanning

Greg Groth, Exact Metrology Division Manager, provides insight into aerospace industry trends and the benefits of recent metrology developments

Exact Metrology: A Division of In-Place Machining Company, a comprehensive 3D metrology service provider and hardware sales company, has recently seen an uptick in requests for scanning large aerospace components.  Greg Groth, Division Manager at Exact Metrology’s Brookfield, Wisconsin location shares his thoughts on this development.

Greg Groth

Greg Groth, Division Manager at Exact Metrology, Brookfield, Wisconsin

It is widely known that the aerospace industry has long been a driver of 3D scanning and the implementation of this technology into quality systems.  When speaking of the surge in interest in scanning from aerospace customers, Groth said, “As the scanning technology’s accuracy has improved and data collection has become much faster, the viability of scanning full vehicles or component level parts has seen a dramatic increase in demand.”

For example, scanning an airplane exterior can now be completed in a matter of days when, in the past, it would take up to a week. Additionally, data processing has also become much quicker with advancements made in software and data handling. Groth added that he has seen the number of full aircraft scans nearly triple in the last year at his company.

For scanning projects of this size, Exact Metrology uses a combination of laser trackers and long-range scanners. The use of these high-precision metrology instruments allows quick scanning of large volumes as well as control of the scan-to-scan for fit and accuracy. Additionally, the alignment challenges that have long been present in the aerospace industry have been greatly reduced with the innovative capabilities of both laser trackers and today’s long-range scanners.

With aluminum continuing to be the most often used material in manufacturing aerospace skins and components, advancements made in metrology instruments now allow for highly accurate scanning both indoors in an environmentally controlled condition and outdoors when conditions are less than ideal. Newer technology can combat both the high reflectivity of chrome finishes and material expansion.

Due to scale, the metrology instruments used by Exact Metrology can vary.  Groth commented that the same level of precision may not be required for a full body scan as the required specifications for panels or component level details. For these tight tolerance areas, Exact Metrology will use higher precision scanners such as PCMMS (Portable Coordinate Measurement Machines) or Structured Light scanners.

RV8 plane point cloud image

RV8 plane point cloud image

Fastening of components and structure sections is also critical. Exact Metrology specialists can leverage several different pieces of equipment with the current bandwidth of metrology hardware. For example, if off-vehicle and internal structural information is needed, CT scanning can be used.  CT scanners have the ability to assess a clogged fuel line or a small manifold, for example, including evaluation of cracks or manufacturing imperfections such as porosity.

Discussing the importance of having highly precise and accurate inspection data for the aerospace industry, Groth said, “The precision we’re achieving on scans allows for more accurate duplication in reverse engineering applications, while the precise representation increases the confidence in part validation on the inspection.  Accurate representations allow for more improved virtual testing such as FEA (Finite Element Analysis) or any flow based testing.”


Exact Metrology: A Division of In-Place Machining Company, is ISO9001, AS9100 Certified as well as ITAR Registered.

Exact Metrology: A Division of In-Place Machining Company, with facilities in Cincinnati, Ohio, Moline, Illinois and Milwaukee, Wisconsin, plus affiliated offices throughout the country, is a comprehensive metrology services provider, offering customers 3D and CT scanning, reverse engineering, quality inspection, product development and 2D drawings. The company also provides turnkey metrology solutions, including equipment sales and lease/rental arrangements.



In-Place Machining Company: On-Site Machining Solutions In-Place, Any Place in the World.

In-Place Machining Company, with facilities in Wisconsin, Washington, Virginia, Ohio, California, and Ontario, Canada, is the premier provider of high-precision engineered on-site machining, metrology, and large scale cutting & drilling services for a wide range of renewable energy, aerospace, industrial, and military customers throughout the world.



For more information, please contact:

Greg Groth
20515 Industry Avenue
Brookfield, WI 53045
Phone: 262-533-0793
www.exactmetrology.com
gregg@exactmetrology.com

Continue reading

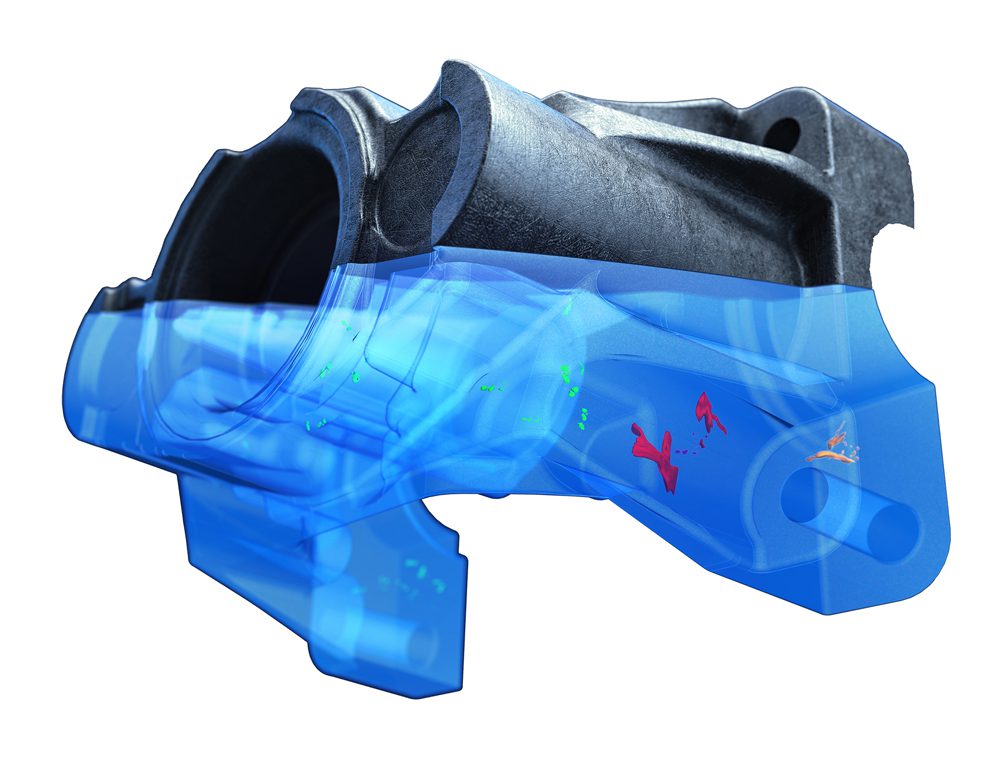

Scan data example of uses of GOM Inspect software

Exact Metrology Now Leases ZEISS METROTOM 1 CT Scanner

Performing complex measurement and inspection tasks all in one compact system, the METROTOM 1 is in stock and ready for delivery

Exact Metrology: A Division of In-Place Machining Company, a comprehensive 3D metrology service provider and hardware sales company, is leasing the ZEISS METROTOM 1 CT scanner. The METROTOM 1 allows users to measure and inspect hidden defects and internal structures that can’t be detected with tactile measuring systems.

The CT system offers several advantages, including easy handling, precise measurements, small footprint and fast return on investment. Installation is a simple process with very little training required. With the ability to measure and evaluate complete parts, accurate nominal/actual comparisons, dimensional checks and wall thickness analysis can be performed. The compact CT system fits into any metrology lab, allowing users to carry out in-house metrology measurements and quality assurance without external measuring services. Besides low acquisition costs, the cost of ownership is also kept low thanks to system components.  ZEISS METROTOM 1 requires maintenance just once a year.

ZEISS METROTOM 1 CT system now makes reliable X-ray technology and non-destructive quality assurance available to everyone. Whether medium or small sized parts, plastic or light metal, the scanner can inspect a variety of parts such as connectors, plastic caps, aluminum parts and more.

Equipped with the operation and inspection software GOM Volume Inspect, the software combines all stages of the CT process from scan set-up and reconstruction to data evaluation and reporting. Geometries, shrinkage holes or internal structures and assembly situations can be evaluated precisely. With just one software, users can load volume data from several components into a project, perform a trend analysis, compare the captured 3D data with the CAD model and more.

Call Exact at 866-722-2600 or visit our “Contact us” page to speak to a metrology specialist and find out how to incorporate this CT technology.






In-Place Machining Company: On-Site Machining Solutions In-Place, Any Place in the World.

In-Place Machining Company, with facilities in Wisconsin, Washington, Virginia, Ohio, and Ontario, Canada, is the premier provider of high-precision engineered on-site machining, metrology, and large scale cutting & drilling services for a wide range of renewable energy, aerospace, industrial, and military customers throughout the world.

Exact Metrology: A Division of In-Place Machining Company, is ISO9001, AS9100 Certified as well as ITAR Registered.

Exact Metrology: A Division of In-Place Machining Company, with facilities in Cincinnati, Ohio, Moline, Illinois and Milwaukee, Wisconsin, plus affiliated offices throughout the country, is a comprehensive metrology services provider, offering customers 3D and CT scanning, reverse engineering, quality inspection, product development and 2D drawings. The company also provides turnkey metrology solutions, including equipment sales and lease/rental arrangements.

GOM GmbH

GOM, a company of the ZEISS Group, specializes in industrial 3D coordinate measuring technology, 3D computed tomography and 3D testing. From product development to production and worldwide distribution, GOM offers machines and systems for manual and automated 3D digitizing, evaluation software, training and professional support from a single source. In industries such as automotive, aerospace, energy and consumer goods, more than 17,000 GOM system installations are in use internationally. At more than 60 locations and with more than 1,200 metrology specialists, GOM guarantees profound advice and first-class service. Since mid-2019, GOM has been a part of the ZEISS Group and has formed the Center of Excellence for optical metrology. With more than 31,000 employees in 50 countries and annual revenue totaling more than 6.4 billion euros, ZEISS is an internationally leading technology enterprise operating in the fields of optics and optoelectronics.


For more information, please contact:

EXACT METROLOGY, INC.
Kelly Baldasare
11575 Goldcoast Drive
Cincinnati, OH 45249
Local: 513-831-6620
Toll Free: 866-722-2600
www.exactmetrology.com
kellyb@exactmetrology.com

Continue reading
