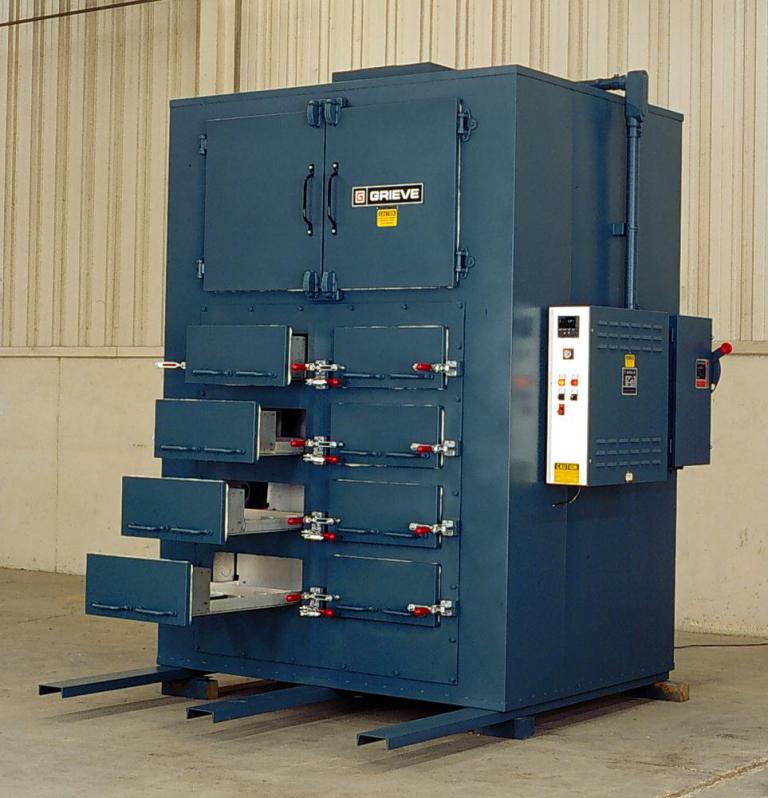

Grieve Corporation introduces No. 809, a 650°F electric drawer oven, currently in use for preheating spin packs at a customer’s facility.
Workspace dimensions inside this unit measure 54” wide x 50” deep x 66” high and are accessed by placing the workloads on two tiers of four oven drawers, each 20” x 24” x 7-1/2” and rated at 400 lbs. per drawer.
80 kW power is installed in Incoloy sheathed tubular heating elements. No. 809 features 6” insulated walls and aluminized steel interior/exterior construction. A 6000 CFM, 5 HP recirculating blower provides horizontal airflow across each side of the workspace.
A digital, microprocessor-based, thermocouple-actuated indicating temperature controller and fused disconnect switch are also included on this unit, which was entirely designed, engineered, built and fully tested by Grieve.
