500ºF Electric Walk-in Batch Oven from Grieve

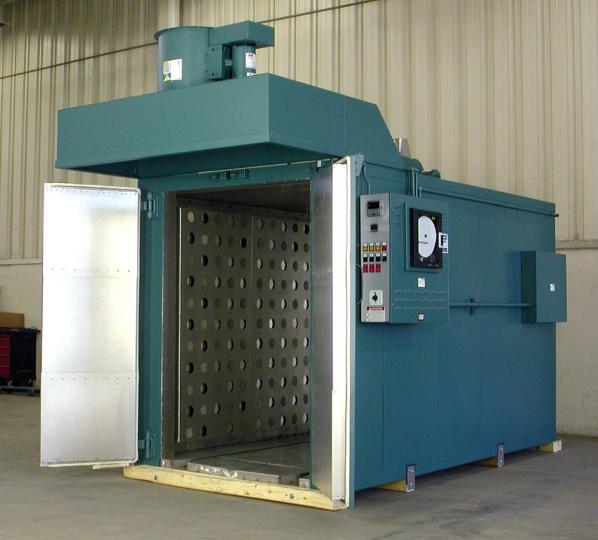

No. 993 is a 500ºF (~260ºC) electric walk-in batch oven from Grieve, currently used for curing various elastomeric and thermoplastic parts at the customer’s facility.  Workspace of this unit measures 48” W x 96” D x 72” H.  45KW are installed in Incoloy sheathed tubular elements to heat the oven, while a 6,000CFM, 5HP recirculating blower provides horizontal airflow across the workload.

This Grieve walk-in oven has 4” insulated walls throughout, aluminized steel exterior and interior, 2” insulated floor with built-in truck wheel guide tracks, exhaust hood over the oven doors equipped with an 18” diameter tubeaxial fan driven by a 3/4HP motor and an integral door switch to start the hood fan when the doors are opened, then shut down the fan when the doors are closed.

No. 993 also provides many added safety features, including a 325CFM powered forced exhauster, digital indicating temperature controller, manual reset excess temperature controller with separate contactors, recirculating airflow safety switch, 10” diameter circular chart recorder and a 30-hour oven shutdown timer.

For more information, please contact:

THE GRIEVE CORPORATION
500 Hart Road
Round Lake, IL  60073-2898
Phone:  (847) 546-8225
Fax:  (847) 546-9210
Web:  www.grievecorp.com
Email:  sales@grievecorp.com
Attention:  Frank Calabrese, VP
